Simulation von Hämodynamik
Am WIAS werden Lösungsverfahren für die Blutflusssimulation verbessert und Methoden für Formoptimierungs und FluidStruktur InteraktionsProbleme entwickelt, um die Grundlagen des Blutflusses im menschlichen Körper und Pathologien im Blutkreislauf besser zu verstehen,
 effiziente patientenspezifische Blutflusssimulationen, zum Beispiel für die Therapieplanung, zu ermöglichen,
 Gefäßparameter durch Datenassimilation schätzen zu können,
 die Form von kardiovaskulären Implantaten optimal zu gestalten.

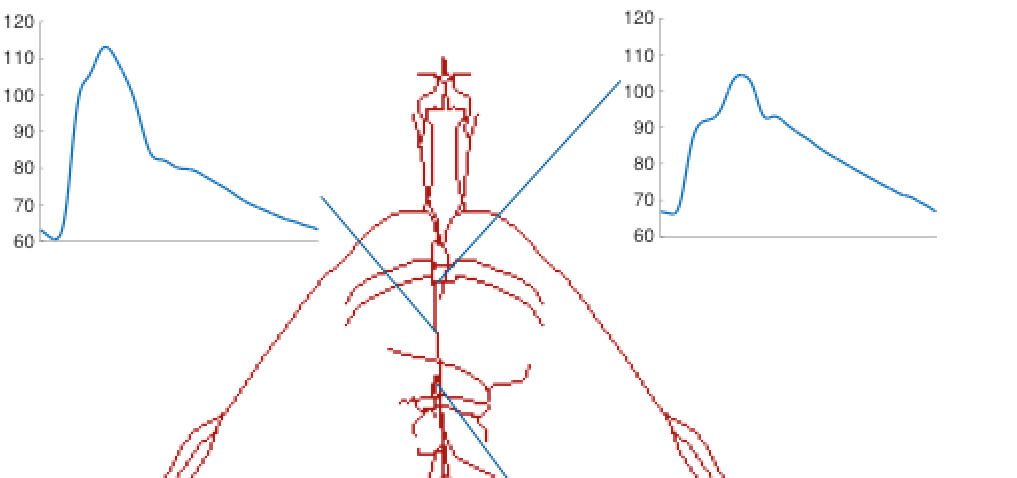

Datenassimilation in eindimensionalen Netzwerken

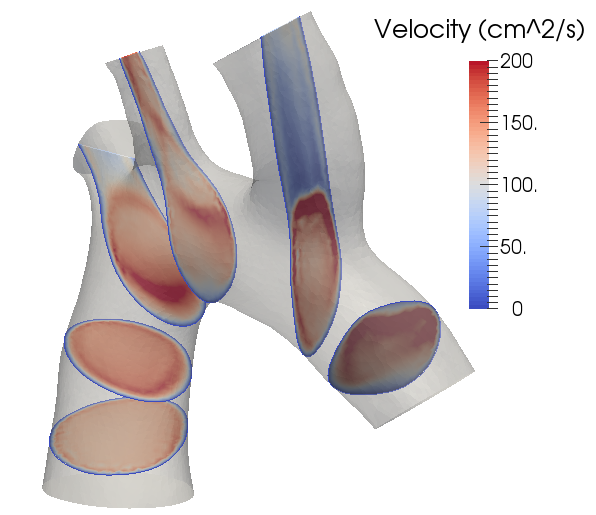

Simulierter Blutfluss in der Aorta
Mathematische Modellierung von Gewebe
Die Blutflussdynamik im menschlichen Herzen hängt stark von der Deformation des umgebenden Gewebes wie zum Beispiel dem Herzmuskel, elastischen Blutgefäßen oder dem Herzbeutel ab. Im Kontext von FluidStrukturInteraktion sowie Mehrskalenmodellierung und Krebsforschung untersuchen wir die Effekte von Kalziumfreisetzung und transport im Herzmuskel,
 nichtinvasive Techniken zur Schätzung von elastischen Gewebeeigenschaften,
 die Modellbildung, Analysis und Simulation von Kontaktphänomenen im Herzbeutel,
 Tumorwachstum und Vaskularisierung.
