This topic is currently not treated at the WIAS.

Static and dynamic process simulation has become an indispensable tool for design, analysis, and operation of complex plants in the process engineering industry. For the dynamic process simulation of complex, highly interconnected plants, initial value problems for large-scale systems of differential and algebraic equations (DAEs) have to be solved.

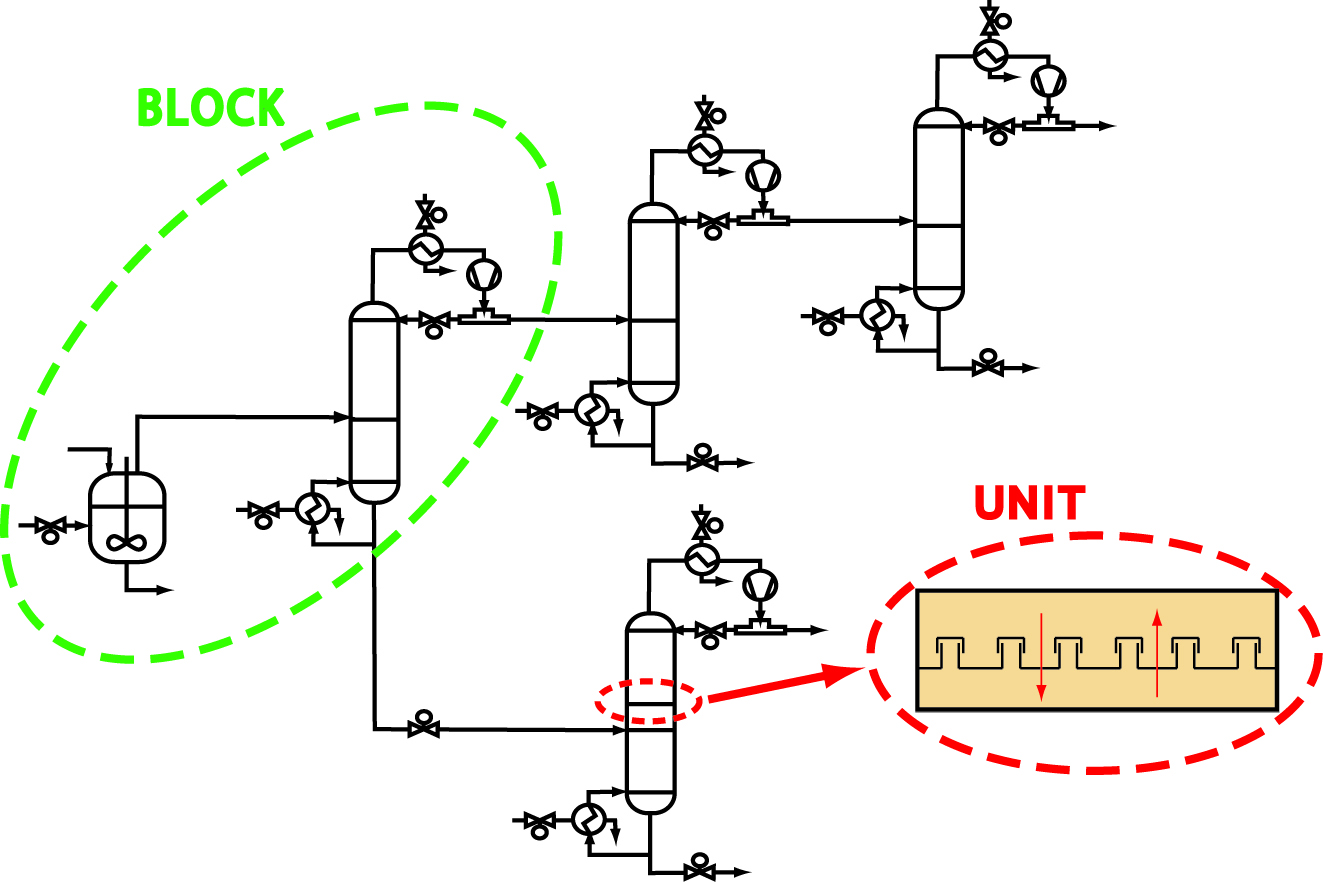

Block Structured Process Flowsheet
The simulation concept developed at WIAS is based on divide-and-conquer techniques and exploits the hierarchical, modular structure of large-scale process models for their simulation on parallel computers. For this purpose, a plant is considered as a network of connected process units.

In an equation-based flowsheet technique, a parameter-dependent mathematical model describing the unit operations is assigned to each unit type. Then, the units are connected, e.g. by mass and energy streams. According to the units, the corresponding system of DAEs is structured into subsystems and can be appropriately partioned into blocks.

For solving this block-partitioned system of DAEs, it is extended in such a way that the blocks can be treated almost concurrently. Within this approach, efficiently parallelizable block-structured Newton-type methods are used to get a widely applicable parallel approach, covering 'exact' methods as well as relaxation techniques. An adopted direct solver is used for the repeated solution of the arising linear systems with sparse, unsymmetric coefficient matrices.

The simulation approach uses a specific compiler to generate an hierarchically structured data interface for the solver. This compiler analyses the process description file, written with the high-level modeling language MLBOP, and generates appropriate FORTRAN routines for function and Jacobian evaluations.

Highlights

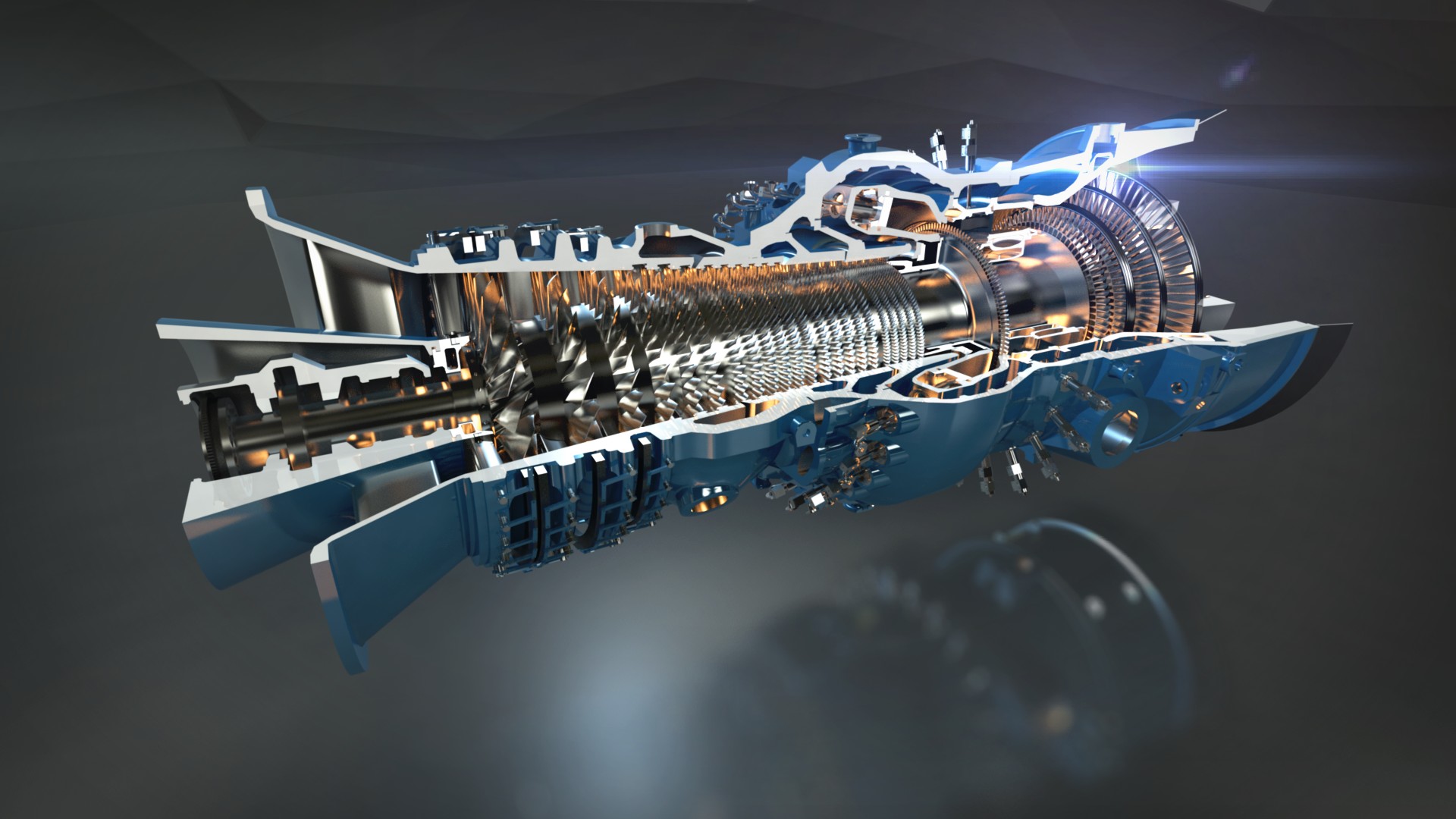

ALSTOM GT26 gas turbine
The simulation concept has been implemented in the Block Oriented Process Simulator BOP. Currently, BOP provides simulation modes and add-ons for
  • steady state simulation
  • transient simulation
  • Monte Carlo simulation
  • correction-curve simulation
  • stochastic and deterministic optimization
  • paramter calibration
While BOP provides an own graphical user interface (GUI), it may also run under a specific GUI of the applying industrial enterprise.

The simulator BOP has been successfully used in various industrial applications, e.g. in chemical process simulation of distillation plants (Bayer AG), in the simulation of oxygen sensors (Bosch GmbH), and in the simulation of heavy duty gas turbines (ALSTOM Power Ltd).

Since more than fifteen years, BOP is licensed to ALSTOM Power Ltd, now General Electric (Switzerland) GmbH, where it is used for a wide range of simulation tasks in the process engineering of industrial gas turbines. Currently, BOP is licensed to Ansaldo Energia S.p.A. (Italy).
