Direct and Inverse Problems for Models with Uncertain Data

Modelling real-world physical systems always includes uncertainties (at least implicitly) regarding the measurement and determination of the data of the model. This for instance involves material properties, loading and also domains. We are concerned with infinite dimensional space dependent systems which are described by PDE. Typical applications are the simulation of mechanical systems and of groundwater flow in porous media. Since the solutions directly depend on the data, the measurement of this dependence in probabilistic terms is required in order to asses the reliability of the calculated solution. By this, it becomes feasible to deduce and quantify the solution uncertainty depending on data uncertainties.

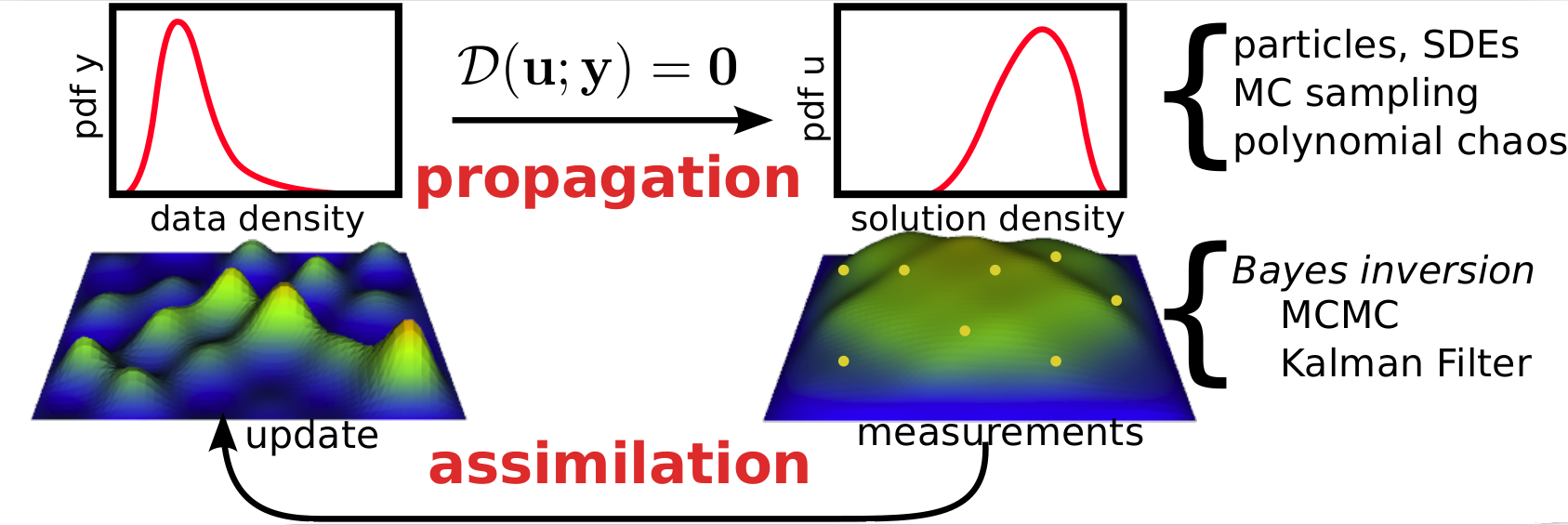

Illustration of forward propagation of uncertainties and inverse parameter identification.

The numerical treatment of these problems usually requires a computational effort which is significantly larger than for deterministic problems and which may easily become intractable. Thus, the development and analysis of efficient model reduction techniques for the numerical evaluation is important to enable the treatment of relevant applications. Depending on the data model, we employ modern sampling methods (multilevel Monte-Carlo) as well as projection methods based on the polynomial chaos (stochastic collocation and stochastic FEM).

Depending on the chosen problem and data model, different methods are employed which either perform a discretization of the function space or determine statistics of functionals based on samples. In particular, these are
  • projection methods based on polynomial chaos (stochastic Galerkin FEM and, in wider sense, also collocation und regression)
  • modern sampling methods (multilevel and Quasi Monte Carlo)
  • methods based on stochastic differential equations (SDEs)

Adaptive Functional Representations and Modern Compression Techniques

The evaluation of forward or inverse stochastic problems often can be accellerated significantly (in terms of convergence rates) by employing functional representations. Moreover, such a representation allows for a numerical analysis, which resembles and extends concepts known from deterministic PDEs. With discretizations in generalized polynomial chaos as e.g. used for stochastic Galerkin methods, (reliable) a posteriori error estimates can be computed. These iteratively lead to problem-adapted solution spaces with optimal convergence.

Since the discrete algebraic systems exhibit a high dimensionality, model reduction techniques are often inevitable. Apart from the adaptation of the discrete space, we employ modern hierarchical tensor methods for the compression of the operators and the parametric solutions. This is tightly related to a possible representation as low-rank manifold. The tensor train (TT) format has proven advantageous for this.

Applications for the developed methods can e.g. be found with sampling-free Bayesian inversion, topology optimization under uncertainties, and the determination of effective material models in case of media with multiscale properties.

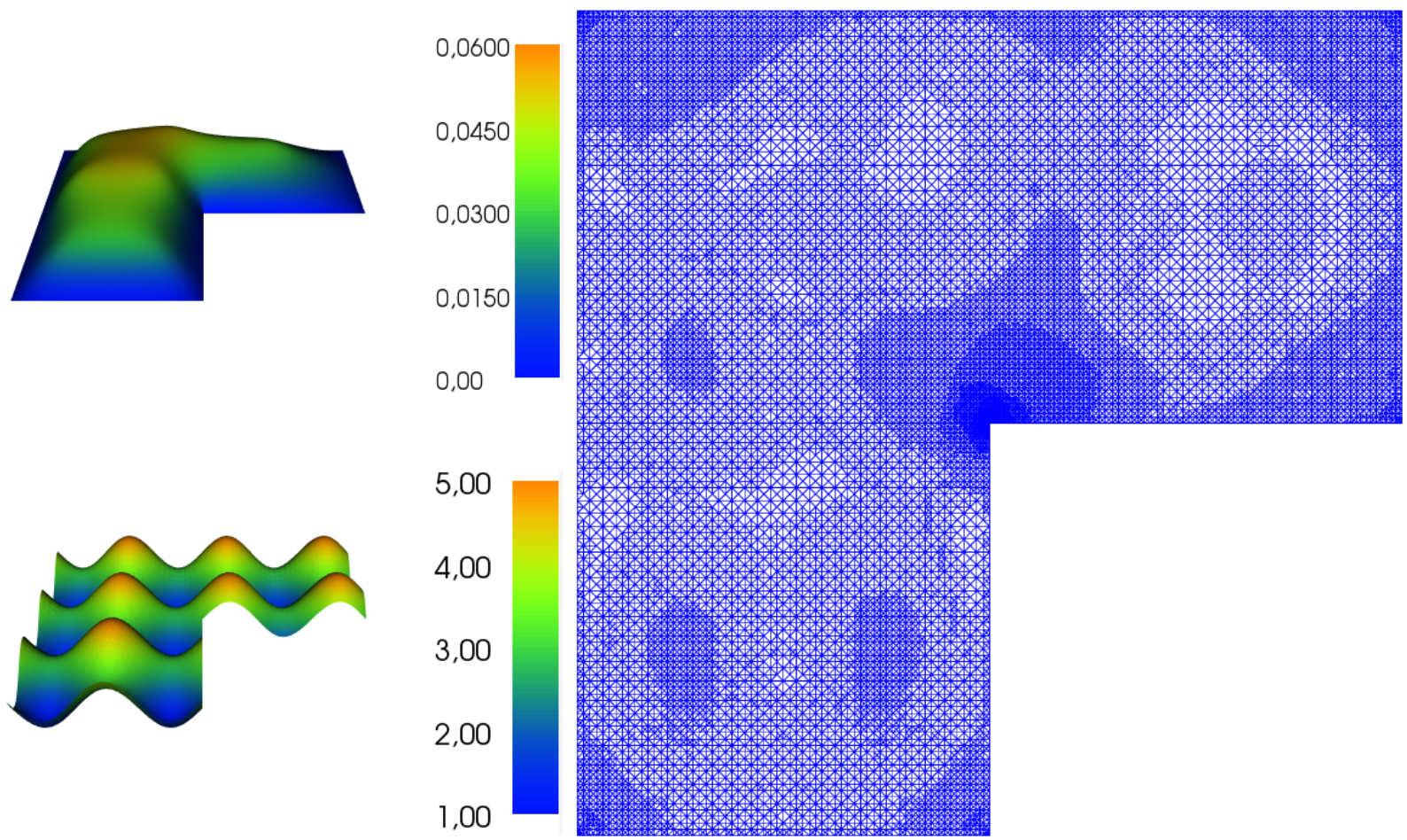

Mesh adaptivity with oscillating coefficient field.

SDE- and Sampling-based Methods for Random PDEs

As an alternative to Monte Carlo methods, we investigate methods which exploit the equivalence of PDEs with random data and stochastic differential equations (Feynman-Kac). Such highly parallelizable approaches typically require the reconstruction of a global solution representation. However, they allow for a complete separate and local control of all discretization parameters. To be more specific, pointwise solution realizations in the physical domain are determined by some appropriate numerical method (Euler-Maruyama). Subsequently these are either used for a global or local polynomial regression or an interpolation on a mesh.

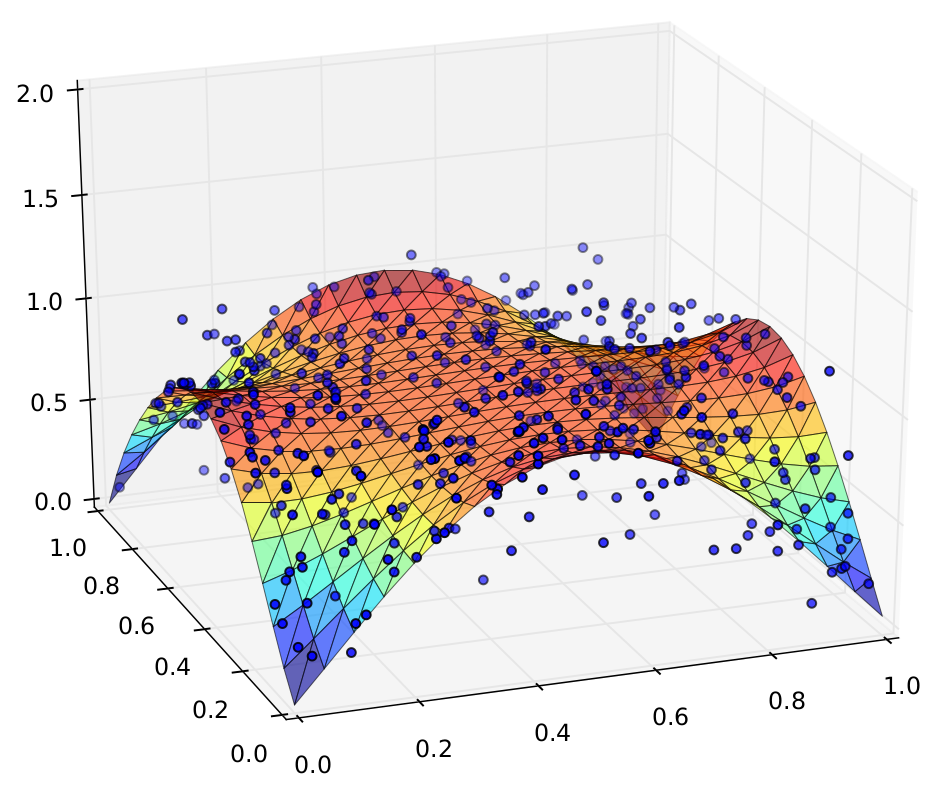

Regression approach for the pointwise solution of an SDE equivalent to the random PDE.
