Base class for all figures. More...

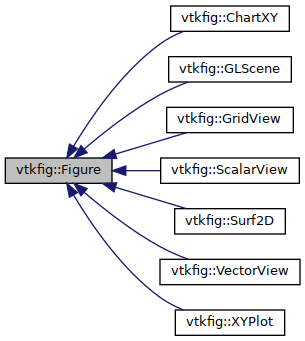

Inheritance diagram for vtkfig::Figure:

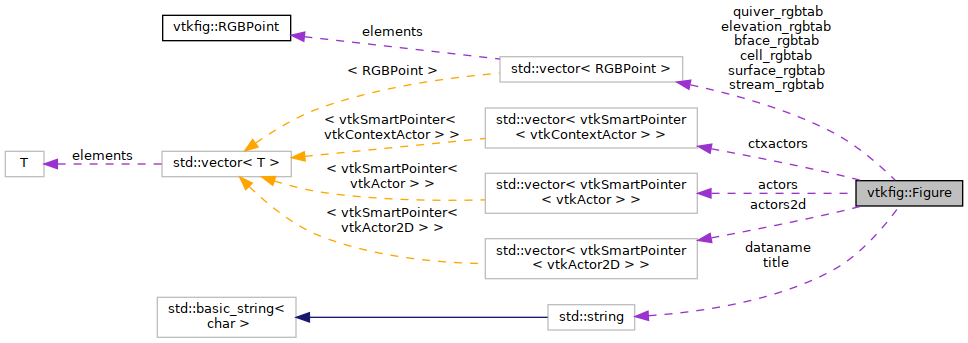

Collaboration diagram for vtkfig::Figure:

Public Member Functions
void	SetBackground (double r, double g, double b)
	Set background color;. More...

void	SetData (std::shared_ptr< DataSet > data, const std::string name="")
	Add Dataset to figure. More...

void	SetMaskedData (std::shared_ptr< DataSet > data, const std::string name, const std::string maskname)
	Add Dataset with mask to figure. More...

void	SetContourRGBTable (RGBTable &tab, int lutsize)
	Set contour RGB table from RGBtable. More...

void	SetTitle (std::string xtitle)
	Set figure title. More...

void	SetViewVolume (double xmin, double xmax, double ymin, double ymax, double zmin, double zmax)
	Set view volume (e.g. to zoom in to a part) More...

void	SetViewVolumeToDataSetBounds ()
	Set view volume to dataset bounds (to overview the full dataset) More...

void	SetValueRange (double vmin, double vmax)
	Set Range of values. More...

void	SetAccumulateRange (bool b)
	Accumulate value ranges during run. More...

void	SetXYAspect (double a)
	Set fixed xy aspect ratio. More...

void	KeepXYAspect (bool b)
	Keep aspect ratio. More...

void	SetTransformDirty ()
	InvalidateTransform. More...

void	ShowDomainAxes (bool b)
	Toggle rendering of domain axes. More...

void	ShowDomainBox (bool b)
	Toggle rendering of domain bounding box. More...

void	ShowDomainOutline (bool b)
	Toggle rendering of domain boundary as transparent surface. More...

void	AddContextActor (vtkSmartPointer< vtkContextActor > prop)
	Add vtk Actor to renderer showing figure. More...

void	AddActor (vtkSmartPointer< vtkActor > prop)
	Add vtk Actor to renderer showing figure. More...

void	AddActor2D (vtkSmartPointer< vtkActor2D > prop)
	Add vtk Actor to renderer showing figure. More...

void	Message (std::string msg)
	Show string in message field. More...

void	AddAnnotations ()
	Add annotations. More...

void	RTAddContextActor (vtkSmartPointer< vtkContextActor > prop)
	Add vtk Actor to renderer showing figure. More...

void	RTAddActor (vtkSmartPointer< vtkActor > prop)
	Add vtk Actor to renderer showing figure. More...

void	RTAddActor2D (vtkSmartPointer< vtkActor2D > prop)
	Add vtk Actor to renderer showing figure. More...

void	RTMessage (std::string msg)
	Show string in message field. More...

void	RTAddAnnotations ()
	Add annotations. More...

void	RTInitAnnotations ()
	Init annotations. More...

void	RTCalcTransform ()
	Calculate transformation to unit cube This shall be applied to all data. More...

void	SetVMinMax ()
	Set minmax values from data. More...

void	GenIsolevels ()
	Generate isolevels after minmax data known. More...

virtual void	RTBuildVTKPipeline ()
	Subclasses re-implement this in order to build the vtk rendering pipeline. More...

void	RTBuildDomainPipeline (vtkSmartPointer< vtkRenderer > renderer)
	Build domain pipeline for 2D/3D figures (box, suface, axes) More...

template<class DATA >
void	RTBuildDomainPipeline0 (vtkSmartPointer< vtkRenderer > renderer)
	Duck typing interface allowing to handle different VTK datatypes with the same code. More...

virtual void	RTBuildAllVTKPipelines (vtkSmartPointer< vtkRenderer > renderer)
	Default implementation for 2D/3d datasets. More...

virtual void	RTPreRender ()
	Pre-Render actions. More...

virtual void	ServerMPSend (vtkSmartPointer< internals::Communicator > communicator)
	Send subclass data to client. More...

virtual void	ClientMPReceive (vtkSmartPointer< internals::Communicator > communicator)
	Receive subclass data from server. More...

void	ServerMPSendData (vtkSmartPointer< internals::Communicator > communicator)
	Send data to client. More...

void	ClientMPReceiveData (vtkSmartPointer< internals::Communicator > communicator)
	Receive data from server. More...

virtual void	RTProcessKey (const std::string key)
	Process keyboard event. More...

virtual void	RTProcessMove (int dx, int dy)
	Process mouse event. More...

void	RTRefreshState ()
	Trigger necessary actions to set state variables. More...

int	RTProcessPlaneKey (const std::string plane, int idim, const std::string key, bool &edit, vtkSmartPointer< vtkCutter > planecut)
	Process keyboard and mouse move events for plane section editing. More...

int	RTProcessPlaneMove (const std::string plane, int idim, int dx, int dy, bool &edit, vtkSmartPointer< vtkCutter > planecut)
	Process keyboard and mouse move events for plane section editing. More...

void	RTShowPlanePos (vtkSmartPointer< vtkCutter > planecut, const std::string plane, int idim)
	Process keyboard and mouse move events for plane section editing. More...

int	RTProcessIsoKey (const std::string key, bool &edit)
	Process keyboard and mouse move events for isolevel editing. More...

int	RTProcessIsoMove (int dx, int dy, bool &edit)
	Process keyboard and mouse move events for isolevel editing. More...

void	RTShowIsolevel ()
	Process keyboard and mouse move events for isolevel editing. More...

void	RTUpdateIsoSurfaceFilter ()
	Process keyboard and mouse move events for isolevel editing. More...

int	RTProcessArrowKey (const std::string key, bool &edit)
	Process keyboard events for quiver arrow editing etc. More...

int	RTProcessArrowMove (int dx, int dy, bool &edit)
	Process mouse move events for quiver arrow editing etc. More...

void	RTShowArrowScale ()
	Show arrow scale informtion. More...

void	RTShowActive ()
	Show figure is active [x]. More...

void	RTShowInActive ()
	Show figure is inactive [ ]. More...

bool	IsEmpty ()
	Check if figure is empty (== no actors added) More...

virtual std::string	SubClassName ()
	Get subclass name (for s-c communication, should be replaced by tag. More...

void	RTUpdateActors ()
	Update all actors belonging to figure. More...

void	SetRange ()
	Obtain the data range from the relevant dataset. More...

Static Public Member Functions
static std::shared_ptr< Figure >	New ()
	Construct smartpointer to empty figure. More...

static void	MPSendRGBTable (vtkSmartPointer< internals::Communicator > communicator, RGBTable &rgbtab)
	Send rgb table to client. More...

static void	MPReceiveRGBTable (vtkSmartPointer< internals::Communicator > communicator, RGBTable &rgbtab)
	Receive rgb table from client. More...

Public Attributes
vtkSmartPointer< vtkCornerAnnotation >	annot
	Title+message text fields. More...

vtkSmartPointer< vtkTransform >	transform =0
	Transformation. More...

vtkSmartPointer< vtkCutter >	planecutX
	Cutter for plane sections. More...

vtkSmartPointer< vtkCutter >	planecutY
	Cutter for plane sections. More...

vtkSmartPointer< vtkCutter >	planecutZ
	Cutter for plane sections. More...

vtkSmartPointer< vtkPlane >	planeX
	Plane equation for plane sections. More...

vtkSmartPointer< vtkPlane >	planeY
	Plane equation for plane sections. More...

vtkSmartPointer< vtkPlane >	planeZ
	Plane equation for plane sections. More...

vtkSmartPointer< vtkGlyphSource2D >	arrow2d
	Arrow glyph source. More...

vtkSmartPointer< vtkTransformPolyDataFilter >	arrow3d
	Arrow glyph source. More...

vtkSmartPointer< vtkTransform >	arrow3dt
	Arrow glyph source. More...

vtkSmartPointer< vtkArrowSource >	arrow3ds
	Arrow glyph source. More...

vtkSmartPointer< vtkActor >	isosurface_plot
	Isosurface plot actor. More...

vtkSmartPointer< vtkContourFilter >	isosurface_filter
	Isosurface plot filter. More...

vtkSmartPointer< vtkActor >	isoline_plot
	Isoline plot actor. More...

vtkSmartPointer< vtkContourFilter >	isoline_filter
	Isoline plot filter. More...

vtkSmartPointer< vtkActor >	elevation_plot
	Items for elevation plot. More...

vtkSmartPointer< vtkActor >	surface_plot
	Items for surface plot. More...

vtkSmartPointer< vtkTransform >	warp_transform
	Items for elevation plot. More...

vtkSmartPointer< vtkCubeAxesActor2D >	axes
	Axes actor. More...

vtkSmartPointer< vtkActor >	box
	Box actor. More...

vtkSmartPointer< vtkActor >	outline
	Outline plot actor. More...

vtkSmartPointer< vtkTrivialProducer >	data_producer =NULL
	Data producer for grid dataset. More...

vtkSmartPointer< vtkTrivialProducer >	boundary_data_producer =NULL
	Data producer for boundary grid dataset. More...

double	coordinate_scale_factor
	coordinate scale More...

std::string	dataname
	Name of data item in data set. More...

vtkSmartPointer< vtkIdList >	celllist =0
	Cell mask. More...

std::string	title
	Title of figure. More...

vtkSmartPointer< vtkLookupTable >	surface_lut
	Color lookup table for surface plots. More...

RGBTable	surface_rgbtab {{0,0,0,1},{1,1,0,0}}
	Color table for surface plots. More...

vtkSmartPointer< vtkLookupTable >	quiver_lut
	Color lookup table for quiver plots. More...

RGBTable	quiver_rgbtab {{0,0,0,0},{1,0,0,0}}
	Color table for quiver plots. More...

vtkSmartPointer< vtkLookupTable >	stream_lut
	Color lookup table for stream plots. More...

RGBTable	stream_rgbtab {{0,0,0,1},{1,1,0,0}}
	Color table for stream plots. More...

vtkSmartPointer< vtkLookupTable >	elevation_lut
	Color lookup table for elevation plots. More...

RGBTable	elevation_rgbtab {{0.0,0.9,0.9,0.9},{1.0,0.9,0.9,0.9}}
	Color table for elevation plots. More...

vtkSmartPointer< vtkLookupTable >	cell_lut
	Color lookup table for grid plot cell colors. More...

RGBTable	cell_rgbtab
	Color table for grid plot cell colors. More...

vtkSmartPointer< vtkLookupTable >	bface_lut
	Color lookup table for grid plot boundary colors. More...

RGBTable	bface_rgbtab
	Color table for grid plot boundary colors. More...

vtkSmartPointer< vtkScalarBarActor >	cbar =NULL
	Cell color bar for grid plots. More...

vtkSmartPointer< vtkScalarBarActor >	bcbar =NULL
	Boundary color bar for grid plots. More...

struct {
double vmin_set =1.0e100
	min/max set through api More...

double real_vmin =0
	min/max generated from api and data More...

double data_vmin =0
	min/max calculated from data More...

double xmin =1.0
	View volume data. More...

}	state
	figure state More...

struct {
}	edit
	edit state More...

std::vector< vtkSmartPointer< vtkContextActor > >	ctxactors
	The different actor lists. More...

double	bgcolor [3] ={1,1,1}
	default background color More...

int	framepos =0
	position in its respective frame More...

Friends
class	Frame
	!!protected: More...

Detailed Description

Base class for all figures.

It justs consists of a set of instances of vtkActor which contains the data used by vtk. In order to ease coding (?), derived class data are defined here as well

Derived classes just should fill these actors by calling Figure::AddActor

In this way, any vtk rendering pipeline can be used.

All methods prefixed with "RT" shall be called only from render thread. All methods prefixed with "MP" shall be called from multiprocessing rendering client.

Member Function Documentation

◆ New()

static std::shared_ptr<Figure> vtkfig::Figure::New ( )

static

Construct smartpointer to empty figure.

Examples: example-custom-vtkfig.cxx.

◆ SetBackground()

void vtkfig::Figure::SetBackground	(	double	r,
		double	g,
		double	b
	)

inline

Set background color;.

◆ SetData()

void vtkfig::Figure::SetData	(	std::shared_ptr< DataSet >	data,
		const std::string	name = `""`
	)

Add Dataset to figure.

Parameters

name	Name of scalar or vector to be shown

Examples: example-gridview2d.cxx, example-gridview3d.cxx, example-multifig.cxx, and example-multiframe.cxx.

◆ SetMaskedData()

void vtkfig::Figure::SetMaskedData	(	std::shared_ptr< DataSet >	data,
		const std::string	name,
		const std::string	maskname
	)

Add Dataset with mask to figure.

Parameters

name	Name of scalar or vector to be shown

◆ SetContourRGBTable()

void vtkfig::Figure::SetContourRGBTable	(	RGBTable &	tab,
		int	lutsize
	)

Set contour RGB table from RGBtable.

Parameters

tab	RGB table containg data.
lutsize	Size of lookup table created.

◆ SetTitle()

void vtkfig::Figure::SetTitle ( std::string xtitle )

inline

Set figure title.

Examples: example-gridview2d.cxx, and example-gridview3d.cxx.

◆ SetViewVolume()

void vtkfig::Figure::SetViewVolume	(	double	xmin,
		double	xmax,
		double	ymin,
		double	ymax,
		double	zmin,
		double	zmax
	)

inline

Set view volume (e.g. to zoom in to a part)

Examples: example-custom-vtkfig.cxx.

◆ SetViewVolumeToDataSetBounds()

void vtkfig::Figure::SetViewVolumeToDataSetBounds ( )

inline

Set view volume to dataset bounds (to overview the full dataset)

◆ SetValueRange()

void vtkfig::Figure::SetValueRange	(	double	vmin,
		double	vmax
	)

inline

Set Range of values.

◆ SetAccumulateRange()

void vtkfig::Figure::SetAccumulateRange ( bool b )

inline

Accumulate value ranges during run.

◆ SetXYAspect()

void vtkfig::Figure::SetXYAspect ( double a )

inline

Set fixed xy aspect ratio.

◆ KeepXYAspect()

void vtkfig::Figure::KeepXYAspect ( bool b )

inline

Keep aspect ratio.

◆ SetTransformDirty()

void vtkfig::Figure::SetTransformDirty ( )

InvalidateTransform.

◆ ShowDomainAxes()

void vtkfig::Figure::ShowDomainAxes ( bool b )

inline

Toggle rendering of domain axes.

◆ ShowDomainBox()

void vtkfig::Figure::ShowDomainBox ( bool b )

inline

Toggle rendering of domain bounding box.

◆ ShowDomainOutline()

void vtkfig::Figure::ShowDomainOutline ( bool b )

inline

Toggle rendering of domain boundary as transparent surface.

◆ AddContextActor()

void vtkfig::Figure::AddContextActor ( vtkSmartPointer< vtkContextActor > prop )

inline

Add vtk Actor to renderer showing figure.

Intended for custom pipeline.

Here is the call graph for this function:

◆ AddActor()

void vtkfig::Figure::AddActor ( vtkSmartPointer< vtkActor > prop )

inline

Add vtk Actor to renderer showing figure.

Intended for custom pipeline.

Examples: example-custom-vtkfig.cxx.

Here is the call graph for this function:

◆ AddActor2D()

void vtkfig::Figure::AddActor2D ( vtkSmartPointer< vtkActor2D > prop )

inline

Add vtk Actor to renderer showing figure.

Intended for custom pipeline.

Examples: example-custom-vtkfig.cxx.

Here is the call graph for this function:

◆ Message()

void vtkfig::Figure::Message ( std::string msg )

inline

Show string in message field.

Intended for custom pipeline.

Here is the call graph for this function:

◆ AddAnnotations()

void vtkfig::Figure::AddAnnotations ( )

inline

Add annotations.

Intended for custom pipeline.

Here is the call graph for this function:

◆ RTAddContextActor()

void vtkfig::Figure::RTAddContextActor ( vtkSmartPointer< vtkContextActor > prop )

Add vtk Actor to renderer showing figure.

Usually, this is called from the render thread, it can however be useful in custom pipelines

◆ RTAddActor()

void vtkfig::Figure::RTAddActor ( vtkSmartPointer< vtkActor > prop )

Add vtk Actor to renderer showing figure.

Usually, this is called from the render thread, it can however be useful in custom pipelines

◆ RTAddActor2D()

void vtkfig::Figure::RTAddActor2D ( vtkSmartPointer< vtkActor2D > prop )

Add vtk Actor to renderer showing figure.

Usually, this is called from the render thread, it can however be useful in custom pipelines

◆ RTMessage()

void vtkfig::Figure::RTMessage ( std::string msg )

Show string in message field.

Usually, this is called from the render thread, it can however be useful in custom pipelines

◆ RTAddAnnotations()

void vtkfig::Figure::RTAddAnnotations ( )

Add annotations.

Usually, this is called from the render thread, it can however be useful in custom pipelines

◆ RTInitAnnotations()

void vtkfig::Figure::RTInitAnnotations ( )

Init annotations.

Called by RTAddAnnotations() or RTMessage()

◆ MPSendRGBTable()

static void vtkfig::Figure::MPSendRGBTable	(	vtkSmartPointer< internals::Communicator >	communicator,
		RGBTable &	rgbtab
	)

static

Send rgb table to client.

◆ MPReceiveRGBTable()

static void vtkfig::Figure::MPReceiveRGBTable	(	vtkSmartPointer< internals::Communicator >	communicator,
		RGBTable &	rgbtab
	)

static

Receive rgb table from client.

◆ RTCalcTransform()

void vtkfig::Figure::RTCalcTransform ( )

Calculate transformation to unit cube This shall be applied to all data.

Camera is fixed.

◆ SetVMinMax()

void vtkfig::Figure::SetVMinMax ( )

Set minmax values from data.

◆ GenIsolevels()

void vtkfig::Figure::GenIsolevels ( )

Generate isolevels after minmax data known.

◆ RTBuildVTKPipeline()

virtual void vtkfig::Figure::RTBuildVTKPipeline ( )

inlinevirtual

Subclasses re-implement this in order to build the vtk rendering pipeline.

◆ RTBuildDomainPipeline()

void vtkfig::Figure::RTBuildDomainPipeline ( vtkSmartPointer< vtkRenderer > renderer )

Build domain pipeline for 2D/3D figures (box, suface, axes)

◆ RTBuildDomainPipeline0()

template<class DATA >

void vtkfig::Figure::RTBuildDomainPipeline0 ( vtkSmartPointer< vtkRenderer > renderer )

Duck typing interface allowing to handle different VTK datatypes with the same code.

◆ RTBuildAllVTKPipelines()

virtual void vtkfig::Figure::RTBuildAllVTKPipelines ( vtkSmartPointer< vtkRenderer > renderer )

inlinevirtual

Default implementation for 2D/3d datasets.

Here is the call graph for this function:

◆ RTPreRender()

virtual void vtkfig::Figure::RTPreRender ( )

inlinevirtual

Pre-Render actions.

◆ ServerMPSend()

virtual void vtkfig::Figure::ServerMPSend ( vtkSmartPointer< internals::Communicator > communicator )

inlinevirtual

Send subclass data to client.

Called from rendering thread.

Reimplemented in vtkfig::Surf2D.

◆ ClientMPReceive()

virtual void vtkfig::Figure::ClientMPReceive ( vtkSmartPointer< internals::Communicator > communicator )

inlinevirtual

Receive subclass data from server.

Reimplemented in vtkfig::Surf2D.

◆ ServerMPSendData()

void vtkfig::Figure::ServerMPSendData ( vtkSmartPointer< internals::Communicator > communicator )

Send data to client.

Called from rendering thread.

◆ ClientMPReceiveData()

void vtkfig::Figure::ClientMPReceiveData ( vtkSmartPointer< internals::Communicator > communicator )

Receive data from server.

◆ RTProcessKey()

virtual void vtkfig::Figure::RTProcessKey ( const std::string key )

virtual

Process keyboard event.

◆ RTProcessMove()

virtual void vtkfig::Figure::RTProcessMove	(	int	dx,
		int	dy
	)

virtual

Process mouse event.

◆ RTRefreshState()

void vtkfig::Figure::RTRefreshState ( )

Trigger necessary actions to set state variables.

◆ RTProcessPlaneKey()

int vtkfig::Figure::RTProcessPlaneKey	(	const std::string	plane,
		int	idim,
		const std::string	key,
		bool &	edit,
		vtkSmartPointer< vtkCutter >	planecut
	)

Process keyboard and mouse move events for plane section editing.

◆ RTProcessPlaneMove()

int vtkfig::Figure::RTProcessPlaneMove	(	const std::string	plane,
		int	idim,
		int	dx,
		int	dy,
		bool &	edit,
		vtkSmartPointer< vtkCutter >	planecut
	)

Process keyboard and mouse move events for plane section editing.

◆ RTShowPlanePos()

void vtkfig::Figure::RTShowPlanePos	(	vtkSmartPointer< vtkCutter >	planecut,
		const std::string	plane,
		int	idim
	)

Process keyboard and mouse move events for plane section editing.

◆ RTProcessIsoKey()

int vtkfig::Figure::RTProcessIsoKey	(	const std::string	key,
		bool &	edit
	)

Process keyboard and mouse move events for isolevel editing.

◆ RTProcessIsoMove()

int vtkfig::Figure::RTProcessIsoMove	(	int	dx,
		int	dy,
		bool &	edit
	)

Process keyboard and mouse move events for isolevel editing.

◆ RTShowIsolevel()

void vtkfig::Figure::RTShowIsolevel ( )

Process keyboard and mouse move events for isolevel editing.

◆ RTUpdateIsoSurfaceFilter()

void vtkfig::Figure::RTUpdateIsoSurfaceFilter ( )

Process keyboard and mouse move events for isolevel editing.

◆ RTProcessArrowKey()

int vtkfig::Figure::RTProcessArrowKey	(	const std::string	key,
		bool &	edit
	)

Process keyboard events for quiver arrow editing etc.

◆ RTProcessArrowMove()

int vtkfig::Figure::RTProcessArrowMove	(	int	dx,
		int	dy,
		bool &	edit
	)

Process mouse move events for quiver arrow editing etc.

◆ RTShowArrowScale()

void vtkfig::Figure::RTShowArrowScale ( )

Show arrow scale informtion.

◆ RTShowActive()

void vtkfig::Figure::RTShowActive ( )

Show figure is active [x].

◆ RTShowInActive()

void vtkfig::Figure::RTShowInActive ( )

Show figure is inactive [ ].

◆ IsEmpty()

bool vtkfig::Figure::IsEmpty ( )

Check if figure is empty (== no actors added)

◆ SubClassName()

virtual std::string vtkfig::Figure::SubClassName ( )

inlinevirtual

Get subclass name (for s-c communication, should be replaced by tag.

Reimplemented in vtkfig::GridView, vtkfig::XYPlot, vtkfig::ScalarView, vtkfig::VectorView, vtkfig::ChartXY, and vtkfig::Surf2D.

◆ RTUpdateActors()

void vtkfig::Figure::RTUpdateActors ( )

Update all actors belonging to figure.

◆ SetRange()

void vtkfig::Figure::SetRange ( )

Obtain the data range from the relevant dataset.

Friends And Related Function Documentation

◆ Frame

friend class Frame

friend

!!protected:

Member Data Documentation

◆ annot

vtkSmartPointer<vtkCornerAnnotation> vtkfig::Figure::annot

Title+message text fields.

◆ transform

vtkSmartPointer<vtkTransform> vtkfig::Figure::transform =0

Transformation.

◆ planecutX

vtkSmartPointer<vtkCutter> vtkfig::Figure::planecutX

Cutter for plane sections.

◆ planecutY

vtkSmartPointer<vtkCutter> vtkfig::Figure::planecutY

Cutter for plane sections.

◆ planecutZ

vtkSmartPointer<vtkCutter> vtkfig::Figure::planecutZ

Cutter for plane sections.

◆ planeX

vtkSmartPointer<vtkPlane> vtkfig::Figure::planeX

Plane equation for plane sections.

◆ planeY

vtkSmartPointer<vtkPlane> vtkfig::Figure::planeY

Plane equation for plane sections.

◆ planeZ

vtkSmartPointer<vtkPlane> vtkfig::Figure::planeZ

Plane equation for plane sections.

◆ arrow2d

vtkSmartPointer<vtkGlyphSource2D> vtkfig::Figure::arrow2d

Arrow glyph source.

◆ arrow3d

vtkSmartPointer<vtkTransformPolyDataFilter> vtkfig::Figure::arrow3d

Arrow glyph source.

◆ arrow3dt

vtkSmartPointer<vtkTransform> vtkfig::Figure::arrow3dt

Arrow glyph source.

◆ arrow3ds

vtkSmartPointer<vtkArrowSource> vtkfig::Figure::arrow3ds

Arrow glyph source.

◆ isosurface_plot

vtkSmartPointer<vtkActor> vtkfig::Figure::isosurface_plot

Isosurface plot actor.

◆ isosurface_filter

vtkSmartPointer<vtkContourFilter> vtkfig::Figure::isosurface_filter

Isosurface plot filter.

◆ isoline_plot

vtkSmartPointer<vtkActor> vtkfig::Figure::isoline_plot

Isoline plot actor.

◆ isoline_filter

vtkSmartPointer<vtkContourFilter> vtkfig::Figure::isoline_filter

Isoline plot filter.

◆ elevation_plot

vtkSmartPointer<vtkActor> vtkfig::Figure::elevation_plot

Items for elevation plot.

◆ surface_plot

vtkSmartPointer<vtkActor> vtkfig::Figure::surface_plot

Items for surface plot.

◆ warp_transform

vtkSmartPointer<vtkTransform> vtkfig::Figure::warp_transform

Items for elevation plot.

◆ axes

vtkSmartPointer<vtkCubeAxesActor2D> vtkfig::Figure::axes

Axes actor.

◆ box

vtkSmartPointer<vtkActor> vtkfig::Figure::box

Box actor.

◆ outline

vtkSmartPointer<vtkActor> vtkfig::Figure::outline

Outline plot actor.

◆ data_producer

vtkSmartPointer<vtkTrivialProducer> vtkfig::Figure::data_producer =NULL

Data producer for grid dataset.

◆ boundary_data_producer

vtkSmartPointer<vtkTrivialProducer> vtkfig::Figure::boundary_data_producer =NULL

Data producer for boundary grid dataset.

◆ coordinate_scale_factor

double vtkfig::Figure::coordinate_scale_factor

coordinate scale

◆ dataname

std::string vtkfig::Figure::dataname

Name of data item in data set.

◆ celllist

vtkSmartPointer<vtkIdList> vtkfig::Figure::celllist =0

Cell mask.

◆ title

std::string vtkfig::Figure::title

Title of figure.

◆ surface_lut

vtkSmartPointer<vtkLookupTable> vtkfig::Figure::surface_lut

Color lookup table for surface plots.

◆ surface_rgbtab

RGBTable vtkfig::Figure::surface_rgbtab {{0,0,0,1},{1,1,0,0}}

Color table for surface plots.

◆ quiver_lut

vtkSmartPointer<vtkLookupTable> vtkfig::Figure::quiver_lut

Color lookup table for quiver plots.

◆ quiver_rgbtab

RGBTable vtkfig::Figure::quiver_rgbtab {{0,0,0,0},{1,0,0,0}}

Color table for quiver plots.

◆ stream_lut

vtkSmartPointer<vtkLookupTable> vtkfig::Figure::stream_lut

Color lookup table for stream plots.

◆ stream_rgbtab

RGBTable vtkfig::Figure::stream_rgbtab {{0,0,0,1},{1,1,0,0}}

Color table for stream plots.

◆ elevation_lut

vtkSmartPointer<vtkLookupTable> vtkfig::Figure::elevation_lut

Color lookup table for elevation plots.

◆ elevation_rgbtab

RGBTable vtkfig::Figure::elevation_rgbtab {{0.0,0.9,0.9,0.9},{1.0,0.9,0.9,0.9}}

Color table for elevation plots.

◆ cell_lut

vtkSmartPointer<vtkLookupTable> vtkfig::Figure::cell_lut

Color lookup table for grid plot cell colors.

◆ cell_rgbtab

RGBTable vtkfig::Figure::cell_rgbtab

Initial value:

{
      {0.00, 1.0, 0.5, 0.5},
      {0.25, 1.0, 1.0, 0.5},
      {0.50, 0.5, 1.0, 0.5},
      {0.75, 0.5, 1.0, 1.0},
      {1.00, 0.5, 0.5, 1.0}}

Color table for grid plot cell colors.

◆ bface_lut

vtkSmartPointer<vtkLookupTable> vtkfig::Figure::bface_lut

Color lookup table for grid plot boundary colors.

◆ bface_rgbtab

RGBTable vtkfig::Figure::bface_rgbtab

Initial value:

{
      {0.00, 0.8, 0.0, 0.0},
      {0.25, 0.8, 0.8, 0.0},
      {0.50, 0.0, 0.8, 0.0},
      {0.75, 0.0, 0.8, 0.8},
      {1.00, 0.0, 0.0, 0.8}}

Color table for grid plot boundary colors.

◆ cbar

vtkSmartPointer<vtkScalarBarActor> vtkfig::Figure::cbar =NULL

Cell color bar for grid plots.

◆ bcbar

vtkSmartPointer<vtkScalarBarActor> vtkfig::Figure::bcbar =NULL

Boundary color bar for grid plots.

◆ vmin_set

double vtkfig::Figure::vmin_set =1.0e100

min/max set through api

◆ real_vmin

double vtkfig::Figure::real_vmin =0

min/max generated from api and data

◆ data_vmin

double vtkfig::Figure::data_vmin =0

min/max calculated from data

◆ xmin

double vtkfig::Figure::xmin =1.0

View volume data.

◆ state

struct { ... } vtkfig::Figure::state

figure state

◆ edit

struct { ... } vtkfig::Figure::edit

edit state

◆ ctxactors

std::vector<vtkSmartPointer<vtkContextActor> > vtkfig::Figure::ctxactors

The different actor lists.

◆ bgcolor

double vtkfig::Figure::bgcolor[3] ={1,1,1}

default background color

◆ framepos

int vtkfig::Figure::framepos =0

position in its respective frame

The documentation for this class was generated from the following file:

vtkfigFigure.h

Public Member Functions

Static Public Member Functions

Public Attributes

Friends

Detailed Description

Member Function Documentation

◆ New()

◆ SetBackground()

◆ SetData()

◆ SetMaskedData()

◆ SetContourRGBTable()

◆ SetTitle()

◆ SetViewVolume()

◆ SetViewVolumeToDataSetBounds()

◆ SetValueRange()

◆ SetAccumulateRange()

◆ SetXYAspect()

◆ KeepXYAspect()

◆ SetTransformDirty()

◆ ShowDomainAxes()

◆ ShowDomainBox()

◆ ShowDomainOutline()

◆ AddContextActor()

◆ AddActor()

◆ AddActor2D()

◆ Message()

◆ AddAnnotations()

◆ RTAddContextActor()

◆ RTAddActor()

◆ RTAddActor2D()

◆ RTMessage()

◆ RTAddAnnotations()

◆ RTInitAnnotations()

◆ MPSendRGBTable()

◆ MPReceiveRGBTable()

◆ RTCalcTransform()

◆ SetVMinMax()

◆ GenIsolevels()

◆ RTBuildVTKPipeline()

◆ RTBuildDomainPipeline()

◆ RTBuildDomainPipeline0()

◆ RTBuildAllVTKPipelines()

◆ RTPreRender()

◆ ServerMPSend()

◆ ClientMPReceive()

◆ ServerMPSendData()

◆ ClientMPReceiveData()

◆ RTProcessKey()

◆ RTProcessMove()

◆ RTRefreshState()

◆ RTProcessPlaneKey()

◆ RTProcessPlaneMove()

◆ RTShowPlanePos()

◆ RTProcessIsoKey()

◆ RTProcessIsoMove()

◆ RTShowIsolevel()

◆ RTUpdateIsoSurfaceFilter()

◆ RTProcessArrowKey()

◆ RTProcessArrowMove()

◆ RTShowArrowScale()

◆ RTShowActive()

◆ RTShowInActive()

◆ IsEmpty()

◆ SubClassName()

◆ RTUpdateActors()

◆ SetRange()

Friends And Related Function Documentation

◆ Frame

Member Data Documentation

◆ annot

◆ transform

◆ planecutX

◆ planecutY

◆ planecutZ

◆ planeX

◆ planeY

◆ planeZ

◆ arrow2d

◆ arrow3d

◆ arrow3dt
