Provide a framework wrapping window+interactor+renderers from vtk. More...

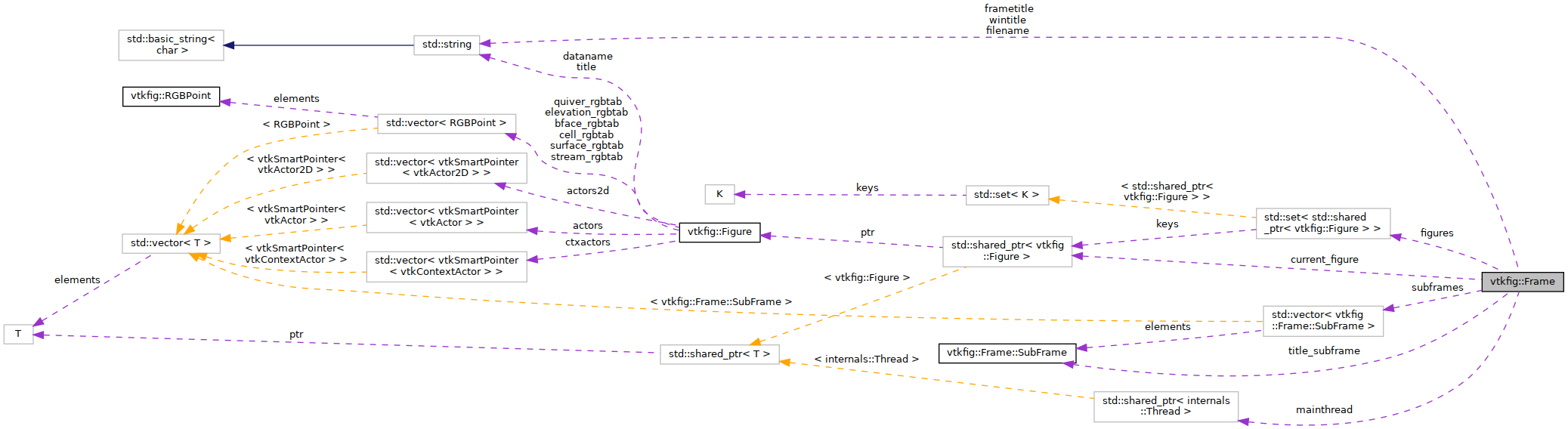

Collaboration diagram for vtkfig::Frame:

Classes
struct	SubFrame
	Data structure decribing subframe Each subframe can hold several figures. More...

Public Member Functions
void	SetLayout (int nvpx, int nvpy)
	Set layout of subframe grid. More...

void	RefreshState (int figurepos)
	Refresh frame state for figure. More...

void	WritePNG (std::string fname)
	Write png image of frame content. More...

void	StartVideo (std::string fname)
	Start video recording. More...

void	StopVideo ()
	Stop video recording. More...

void	AddFigure (std::shared_ptr< Figure > figure)
	Add figure at position (0) More...

void	AddFigure (std::shared_ptr< Figure > figure, int ipos)
	Add figure at position in frame. More...

void	RemoveFigure (std::shared_ptr< Figure > figure)
	Remove figure. More...

void	Clear (void)
	Remove all figures. More...

void	Unmap ()
	Unmap frame from screen. More...

void	LinkCamera (int ivp, Frame &frame, int livp)
	Link camera to other camera. More...

void	LinkCamera (int ivp, std::shared_ptr< Frame > frame, int livp)
	Link camera to other camera. More...

void	LinkCamera (int ivp, Frame *frame, int livp)
	Link camera to other camera. More...

void	LinkCamera (std::shared_ptr< Frame > frame)
	Link camera to other frame at default positions. More...

void	LinkCamera (Frame &frame)
	Link camera to other frame at default positions. More...

void	SetSize (int x, int y)
	Set frame size in pixels. More...

void	SetWindowTitle (const std::string title)
	Set window title. More...

void	SetFrameTitle (const std::string title)
	Set Frame title. More...

void	SetPosition (int x, int y)
	Set frame position on screen. More...

void	SetSingleSubFrameView (bool b)
	Toggle single/multi view for frame with mutiple figures. More...

void	SetActiveSubFrame (int iframe)
	Set active subframe number for editing, single/multiview etc. More...

void	SetActiveSubFrameCameraViewAngle (double angle)
	Set view angle for camera in active frame relative to default. More...

void	SetActiveSubFrameCameraFocalPoint (double x, double y, double z)
	Set focal point for camera in active frame relative to default. More...

void	SetActiveSubFrameCameraPosition (double x, double y, double z)
	Set view position for camera in active frame relative to default. More...

void	Show ()
	Show frame content and continue. More...

void	Interact ()
	Show frame content and wait for interaction. More...

int	pos (const int ivpx, const int ivpy)
	Subframe position algebra. More...

void	SendCommand (std::string source, internals::Communicator::Command cmd)
	Blocking send of commands to main thread. More...

void	RTInit ()
	Init title actor. More...

Static Public Member Functions
static std::shared_ptr< Frame >	New ()
	Create smart pointer to frame. More...

static Frame &	FindFrame (int number_in_framelist)
	Find frame with number. More...

Public Attributes
int	number_in_frame_list =-1
	Number of this frame in global frame list. More...

std::set< std::shared_ptr< Figure > >	figures
	List of all figures in frame. More...

int	nvpx
	Number of viewports in x direction. More...

int	nvpy
	Number of viewports in y direction. More...

std::vector< SubFrame >	subframes
	List of subframes. More...

const double	default_camera_focal_point [3] ={0.65,0.5,0}
	Default camera data. More...

struct {
int winsize_x =400
	window sizes More...

}	parameter
	Parameters to be passed between threads. More...

std::shared_ptr< internals::Thread >	mainthread
	The spinning main thread. More...

vtkSmartPointer< vtkRenderWindow >	window
	Window vontaining frame. More...

vtkSmartPointer< vtkCornerAnnotation >	title_actor =0
	Actor for frame title annotation. More...

vtkSmartPointer< vtkOggTheoraWriter >	videowriter =0
	Video writer. More...

Static Public Attributes
static constexpr const char *	KeyboardHelp
	Help string printed when pressing "h"/"?". More...

Friends
class	internals::Thread
	!! private: More...

Detailed Description

Provide a framework wrapping window+interactor+renderers from vtk.

A frame contains a grid of subframes. Each subframe can contain several overlapping figures.

Member Function Documentation

◆ New()

static std::shared_ptr<Frame> vtkfig::Frame::New ( )

static

Create smart pointer to frame.

Returns: Smart pointer to frame object

Examples: example-custom-vtkfig.cxx, example-gridview2d.cxx, example-gridview3d.cxx, example-multifig.cxx, example-multiframe.cxx, example-rectcontour2d.cxx, example-rectcontour3d.cxx, example-rectquiver2d.cxx, example-rectquiver3d.cxx, example-rectstream2d.cxx, example-scene2d.cxx, example-simplexcontour2d.cxx, example-simplexcontour3d.cxx, example-simplexquiver2d.cxx, example-simplexquiver3d.cxx, and example-xyplot.cxx.

◆ SetLayout()

void vtkfig::Frame::SetLayout	(	int	nvpx,
		int	nvpy
	)

Set layout of subframe grid.

Parameters

nvpx	number of rows
nvpy	number of columns

Examples: example-multifig.cxx.

◆ RefreshState()

void vtkfig::Frame::RefreshState ( int figurepos )

Refresh frame state for figure.

◆ WritePNG()

void vtkfig::Frame::WritePNG ( std::string fname )

Write png image of frame content.

Parameters

fname Image file name

Examples: example-multifig.cxx.

◆ StartVideo()

void vtkfig::Frame::StartVideo ( std::string fname )

Start video recording.

Parameters

fname Video file name

◆ StopVideo()

void vtkfig::Frame::StopVideo ( )

Stop video recording.

◆ AddFigure() [1/2]

void vtkfig::Frame::AddFigure ( std::shared_ptr< Figure > figure )

Add figure at position (0)

Examples: example-custom-vtkfig.cxx, example-gridview2d.cxx, example-gridview3d.cxx, example-multifig.cxx, and example-multiframe.cxx.

◆ AddFigure() [2/2]

void vtkfig::Frame::AddFigure	(	std::shared_ptr< Figure >	figure,
		int	ipos
	)

Add figure at position in frame.

Parameters

figure	Figure to be added
ipos	Number of position in frame grid

◆ RemoveFigure()

void vtkfig::Frame::RemoveFigure ( std::shared_ptr< Figure > figure )

Remove figure.

◆ Clear()

void vtkfig::Frame::Clear ( void )

Remove all figures.

◆ Unmap()

void vtkfig::Frame::Unmap ( )

Unmap frame from screen.

◆ LinkCamera() [1/5]

void vtkfig::Frame::LinkCamera	(	int	ivp,
		Frame &	frame,
		int	livp
	)

Link camera to other camera.

Parameters

ivp	number of viewport
frame	other frame to be linked with
livp	number of link viewport

Examples: example-multifig.cxx, and example-multiframe.cxx.

◆ LinkCamera() [2/5]

void vtkfig::Frame::LinkCamera	(	int	ivp,
		std::shared_ptr< Frame >	frame,
		int	livp
	)

inline

Link camera to other camera.

Parameters

ivp	number of viewport
frame	other frame to be linked with
livp	number of link viewport

Here is the call graph for this function:

◆ LinkCamera() [3/5]

void vtkfig::Frame::LinkCamera	(	int	ivp,
		Frame *	frame,
		int	livp
	)

inline

Link camera to other camera.

Parameters

ivp	number of viewport
frame	other frame to be linked with
livp	number of link viewport

Here is the call graph for this function:

◆ LinkCamera() [4/5]

void vtkfig::Frame::LinkCamera ( std::shared_ptr< Frame > frame )

inline

Link camera to other frame at default positions.

Parameters

frame other frame to be linked with

Here is the call graph for this function:

◆ LinkCamera() [5/5]

void vtkfig::Frame::LinkCamera ( Frame & frame )

inline

Link camera to other frame at default positions.

Parameters

frame other frame to be linked with

Here is the call graph for this function:

◆ SetSize()

void vtkfig::Frame::SetSize	(	int	x,
		int	y
	)

Set frame size in pixels.

Parameters

x	Pixels in x direction
y	Pixels in y direction

Examples: example-gridview2d.cxx, example-gridview3d.cxx, example-multifig.cxx, and example-multiframe.cxx.

◆ SetWindowTitle()

void vtkfig::Frame::SetWindowTitle ( const std::string title )

Set window title.

This title will show up in the title bar of the window.

Parameters

title Title

Examples: example-multifig.cxx.

◆ SetFrameTitle()

void vtkfig::Frame::SetFrameTitle ( const std::string title )

Set Frame title.

This title will show up within the frame

Parameters

title Title

Examples: example-multifig.cxx.

◆ SetPosition()

void vtkfig::Frame::SetPosition	(	int	x,
		int	y
	)

Set frame position on screen.

Parameters

x	x origin in pixels
y	y origin in pixels

Examples: example-multiframe.cxx.

◆ SetSingleSubFrameView()

void vtkfig::Frame::SetSingleSubFrameView ( bool b )

Toggle single/multi view for frame with mutiple figures.

◆ SetActiveSubFrame()

void vtkfig::Frame::SetActiveSubFrame ( int iframe )

Set active subframe number for editing, single/multiview etc.

◆ SetActiveSubFrameCameraViewAngle()

void vtkfig::Frame::SetActiveSubFrameCameraViewAngle ( double angle )

Set view angle for camera in active frame relative to default.

◆ SetActiveSubFrameCameraFocalPoint()

void vtkfig::Frame::SetActiveSubFrameCameraFocalPoint	(	double	x,
		double	y,
		double	z
	)

Set focal point for camera in active frame relative to default.

◆ SetActiveSubFrameCameraPosition()

void vtkfig::Frame::SetActiveSubFrameCameraPosition	(	double	x,
		double	y,
		double	z
	)

Set view position for camera in active frame relative to default.

◆ Show()

void vtkfig::Frame::Show ( )

Show frame content and continue.

Without interaction, this triggers a non-blocking run of the event loop. It can be blocked however by the space key.

Examples: example-custom-vtkfig.cxx, example-multifig.cxx, and example-multiframe.cxx.

◆ Interact()

void vtkfig::Frame::Interact ( )

Show frame content and wait for interaction.

This performs a blocking run of the event loop. It can be unblocked however by the space key.

Examples: example-gridview2d.cxx, and example-gridview3d.cxx.

◆ FindFrame()

static Frame& vtkfig::Frame::FindFrame ( int number_in_framelist )

static

Find frame with number.

◆ pos()

int vtkfig::Frame::pos	(	const int	ivpx,
		const int	ivpy
	)

inline

Subframe position algebra.

◆ SendCommand()

void vtkfig::Frame::SendCommand	(	std::string	source,
		internals::Communicator::Command	cmd
	)

Blocking send of commands to main thread.

◆ RTInit()

void vtkfig::Frame::RTInit ( )

Init title actor.

Friends And Related Function Documentation

◆ internals::Thread

friend class internals::Thread

friend

!! private:

Member Data Documentation

◆ KeyboardHelp

constexpr const char* vtkfig::Frame::KeyboardHelp

staticconstexpr

Initial value:

=
R"(
--------------------------------------
   Key    Realm    Action

    Space Frame    Block/unblock calculation, increase step number
BackSpace Frame    Block/unblock calculation, decrease step number
   Escape Figure   Finish plane/level editing
   Return Figure   Store edited plane/level value and create new one
   Delete Figure   Delete last plane/level value
    Prior Frame    Show previous figure in single figure mode
    Next  Frame    Show next figure in single figure mode
        a Figure   Start arrow scale editing
        h Frame    Print this help to standard output
        l Figure   Start isolevel editing
        p Frame    Write frame to png
        r Figure   Reset camera (must left click to see the result)
        x Figure   Start x plane editing (3D only)
        y Figure   Start y plane editing (3D only)
        z Figure   Start z plane editing (3D only)
        A Figure   Toggle axis+box visibility
        B Figure   Toggle boundary cell visibility in vtkfig::GridView
        C Figure   Toggle interior cell visibility in vtkfig::GridView
        E Figure   Toggle elevation view (2D only)
        I Figure   Toggle isosurface view (3D only)
        L Figure   Generate 11 equally spaced isolevels.
        O Figure   Toggle outline visibility
        S Figure   Toggle surface visibility
        W Figure   Toggle wireframe mode
        * Frame    Toggle single/multi figure view
        ? Frame    Print this help to standard output
        / Figure   Switch signs of cut plane
   ctrl-q Frame    Abort (calls std::terminate)

In  edit   mode,  left  mouse,   as  well  as  cursor   keys  increase
resp. decrease the value of the plane/isolevel/arrowscale, respectively.

Figures must be first clicked on before editing works.
--------------------------------------
)"

Help string printed when pressing "h"/"?".

◆ number_in_frame_list

int vtkfig::Frame::number_in_frame_list =-1

Number of this frame in global frame list.

◆ figures

std::set<std::shared_ptr<Figure> > vtkfig::Frame::figures

List of all figures in frame.

◆ nvpx

int vtkfig::Frame::nvpx

Number of viewports in x direction.

◆ nvpy

int vtkfig::Frame::nvpy

Number of viewports in y direction.

◆ subframes

std::vector<SubFrame> vtkfig::Frame::subframes

List of subframes.

◆ default_camera_focal_point

const double vtkfig::Frame::default_camera_focal_point[3] ={0.65,0.5,0}

Default camera data.

◆ winsize_x

int vtkfig::Frame::winsize_x =400

window sizes

◆ parameter

struct { ... } vtkfig::Frame::parameter

Parameters to be passed between threads.

◆ mainthread

std::shared_ptr<internals::Thread> vtkfig::Frame::mainthread

The spinning main thread.

◆ window

vtkSmartPointer<vtkRenderWindow> vtkfig::Frame::window

Window vontaining frame.

◆ title_actor

vtkSmartPointer<vtkCornerAnnotation> vtkfig::Frame::title_actor =0

Actor for frame title annotation.

◆ videowriter

vtkSmartPointer<vtkOggTheoraWriter> vtkfig::Frame::videowriter =0

Video writer.

The documentation for this class was generated from the following file:

vtkfigFrame.h

Classes

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Friends

Detailed Description

Member Function Documentation

◆ New()

◆ SetLayout()

◆ RefreshState()

◆ WritePNG()

◆ StartVideo()

◆ StopVideo()

◆ AddFigure() [1/2]

◆ AddFigure() [2/2]

◆ RemoveFigure()

◆ Clear()

◆ Unmap()

◆ LinkCamera() [1/5]

◆ LinkCamera() [2/5]

◆ LinkCamera() [3/5]

◆ LinkCamera() [4/5]

◆ LinkCamera() [5/5]

◆ SetSize()

◆ SetWindowTitle()

◆ SetFrameTitle()

◆ SetPosition()

◆ SetSingleSubFrameView()

◆ SetActiveSubFrame()

◆ SetActiveSubFrameCameraViewAngle()

◆ SetActiveSubFrameCameraFocalPoint()

◆ SetActiveSubFrameCameraPosition()

◆ Show()

◆ Interact()

◆ FindFrame()

◆ pos()

◆ SendCommand()

◆ RTInit()

Friends And Related Function Documentation

◆ internals::Thread

Member Data Documentation

◆ KeyboardHelp

◆ number_in_frame_list

◆ figures

◆ nvpx

◆ nvpy

◆ subframes

◆ default_camera_focal_point

◆ winsize_x

◆ parameter

◆ mainthread

◆ window

◆ title_actor

◆ videowriter
