XY Function plot. More...

Inheritance diagram for vtkfig::XYPlot:

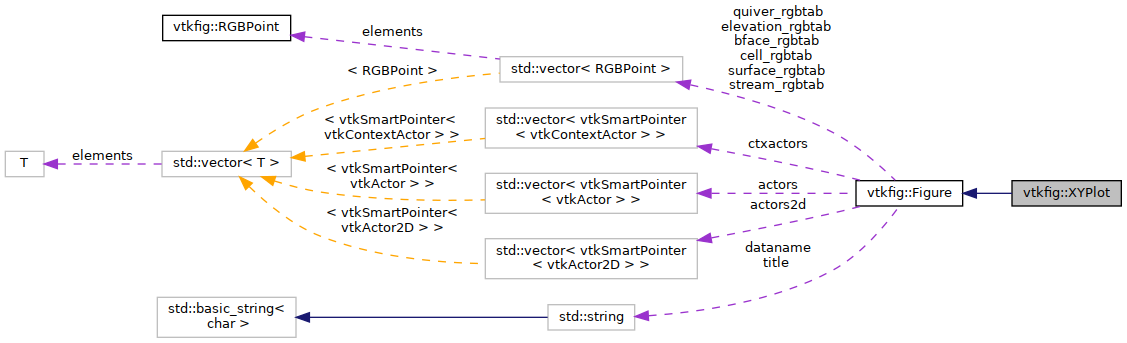

Collaboration diagram for vtkfig::XYPlot:

Public Member Functions
virtual std::string	SubClassName () override final
	Get subclass name (for s-c communication, should be replaced by tag. More...

void	Clear ()
	Remove all data from plot. More...

void	SetTitle (const std::string t)
	Set the title of the plot. More...

void	SetXTitle (const std::string t)
	Set the title of the x axis. More...

void	SetYTitle (const std::string t)
	Set the title of the y axis. More...

void	SetXRange (double x0, double x1)
	Set the range of the x values. More...

void	SetYRange (double y0, double y1)
	Set the range of the y values. More...

void	SetNumberOfXLabels (int n)
	Set the number of x axis labels. More...

void	SetNumberOfYLabels (int n)
	Set the number of y axis labels. More...

void	SetXAxisLabelFormat (const std::string fmt)
	Set the format string for x axis labels. More...

void	SetYAxisLabelFormat (const std::string fmt)
	Set the format string for y axis labels. More...

void	AdjustLabels (bool b)
	Adjust labels to "nice values" ? More...

void	ShowGrid (bool b)
	Show grid lines in the plot ? More...

void	SetGridColor (double r, double g, double b)
	Set the color of the grid lines. More...

void	SetAxesColor (double r, double g, double b)
	Set the color of the axes. More...

void	ShowLegend (bool b)
	Show a legend box ? More...

void	SetLegendPosition (double x, double y)
	Set the position of the legend box. More...

void	SetLegendSize (double w, double h)
	Set the size of the legend box. More...

void	SetPlotLineType (const std::string type)
	Set the line type of the next plot. More...

void	SetPlotLegend (const std::string legend)
	Set the information for the legend entry for the next plot. More...

void	SetPlotColor (double r, double g, double b)
	Set the color of the next plot. More...

void	SetLineWidth (double w)
	Set the width of all lines in the plot. More...

void	SetMarkerSize (double s)
	Set the size of all markers in the plot. More...

void	SetPlotMarkerType (const std::string type)
	Set marker type. More...

template<typename V >
void	AddPlot (const V &x, const V &y)
	Add a pair of x/y data to the figure. More...

void	SetBackground (double r, double g, double b)
	Set background color;. More...

void	SetData (std::shared_ptr< DataSet > data, const std::string name="")
	Add Dataset to figure. More...

void	SetMaskedData (std::shared_ptr< DataSet > data, const std::string name, const std::string maskname)
	Add Dataset with mask to figure. More...

void	SetContourRGBTable (RGBTable &tab, int lutsize)
	Set contour RGB table from RGBtable. More...

void	SetViewVolume (double xmin, double xmax, double ymin, double ymax, double zmin, double zmax)
	Set view volume (e.g. to zoom in to a part) More...

void	SetViewVolumeToDataSetBounds ()
	Set view volume to dataset bounds (to overview the full dataset) More...

void	SetValueRange (double vmin, double vmax)
	Set Range of values. More...

void	SetAccumulateRange (bool b)
	Accumulate value ranges during run. More...

void	SetXYAspect (double a)
	Set fixed xy aspect ratio. More...

void	KeepXYAspect (bool b)
	Keep aspect ratio. More...

void	SetTransformDirty ()
	InvalidateTransform. More...

void	ShowDomainAxes (bool b)
	Toggle rendering of domain axes. More...

void	ShowDomainBox (bool b)
	Toggle rendering of domain bounding box. More...

void	ShowDomainOutline (bool b)
	Toggle rendering of domain boundary as transparent surface. More...

void	AddContextActor (vtkSmartPointer< vtkContextActor > prop)
	Add vtk Actor to renderer showing figure. More...

void	AddActor (vtkSmartPointer< vtkActor > prop)
	Add vtk Actor to renderer showing figure. More...

void	AddActor2D (vtkSmartPointer< vtkActor2D > prop)
	Add vtk Actor to renderer showing figure. More...

void	Message (std::string msg)
	Show string in message field. More...

void	AddAnnotations ()
	Add annotations. More...

void	RTAddContextActor (vtkSmartPointer< vtkContextActor > prop)
	Add vtk Actor to renderer showing figure. More...

void	RTAddActor (vtkSmartPointer< vtkActor > prop)
	Add vtk Actor to renderer showing figure. More...

void	RTAddActor2D (vtkSmartPointer< vtkActor2D > prop)
	Add vtk Actor to renderer showing figure. More...

void	RTMessage (std::string msg)
	Show string in message field. More...

void	RTAddAnnotations ()
	Add annotations. More...

void	RTInitAnnotations ()
	Init annotations. More...

void	RTCalcTransform ()
	Calculate transformation to unit cube This shall be applied to all data. More...

void	SetVMinMax ()
	Set minmax values from data. More...

void	GenIsolevels ()
	Generate isolevels after minmax data known. More...

virtual void	RTBuildVTKPipeline ()
	Subclasses re-implement this in order to build the vtk rendering pipeline. More...

void	RTBuildDomainPipeline (vtkSmartPointer< vtkRenderer > renderer)
	Build domain pipeline for 2D/3D figures (box, suface, axes) More...

template<class DATA >
void	RTBuildDomainPipeline0 (vtkSmartPointer< vtkRenderer > renderer)
	Duck typing interface allowing to handle different VTK datatypes with the same code. More...

void	ServerMPSendData (vtkSmartPointer< internals::Communicator > communicator)
	Send data to client. More...

void	ClientMPReceiveData (vtkSmartPointer< internals::Communicator > communicator)
	Receive data from server. More...

virtual void	RTProcessKey (const std::string key)
	Process keyboard event. More...

virtual void	RTProcessMove (int dx, int dy)
	Process mouse event. More...

void	RTRefreshState ()
	Trigger necessary actions to set state variables. More...

int	RTProcessPlaneKey (const std::string plane, int idim, const std::string key, bool &edit, vtkSmartPointer< vtkCutter > planecut)
	Process keyboard and mouse move events for plane section editing. More...

int	RTProcessPlaneMove (const std::string plane, int idim, int dx, int dy, bool &edit, vtkSmartPointer< vtkCutter > planecut)
	Process keyboard and mouse move events for plane section editing. More...

void	RTShowPlanePos (vtkSmartPointer< vtkCutter > planecut, const std::string plane, int idim)
	Process keyboard and mouse move events for plane section editing. More...

int	RTProcessIsoKey (const std::string key, bool &edit)
	Process keyboard and mouse move events for isolevel editing. More...

int	RTProcessIsoMove (int dx, int dy, bool &edit)
	Process keyboard and mouse move events for isolevel editing. More...

void	RTShowIsolevel ()
	Process keyboard and mouse move events for isolevel editing. More...

void	RTUpdateIsoSurfaceFilter ()
	Process keyboard and mouse move events for isolevel editing. More...

int	RTProcessArrowKey (const std::string key, bool &edit)
	Process keyboard events for quiver arrow editing etc. More...

int	RTProcessArrowMove (int dx, int dy, bool &edit)
	Process mouse move events for quiver arrow editing etc. More...

void	RTShowArrowScale ()
	Show arrow scale informtion. More...

void	RTShowActive ()
	Show figure is active [x]. More...

void	RTShowInActive ()
	Show figure is inactive [ ]. More...

bool	IsEmpty ()
	Check if figure is empty (== no actors added) More...

void	RTUpdateActors ()
	Update all actors belonging to figure. More...

void	SetRange ()
	Obtain the data range from the relevant dataset. More...

Static Public Member Functions
static std::shared_ptr< XYPlot >	New ()
	Smartpointer construtor. More...

static void	MPSendRGBTable (vtkSmartPointer< internals::Communicator > communicator, RGBTable &rgbtab)
	Send rgb table to client. More...

static void	MPReceiveRGBTable (vtkSmartPointer< internals::Communicator > communicator, RGBTable &rgbtab)
	Receive rgb table from client. More...

Public Attributes
vtkSmartPointer< vtkCornerAnnotation >	annot
	Title+message text fields. More...

vtkSmartPointer< vtkTransform >	transform =0
	Transformation. More...

vtkSmartPointer< vtkCutter >	planecutX
	Cutter for plane sections. More...

vtkSmartPointer< vtkCutter >	planecutY
	Cutter for plane sections. More...

vtkSmartPointer< vtkCutter >	planecutZ
	Cutter for plane sections. More...

vtkSmartPointer< vtkPlane >	planeX
	Plane equation for plane sections. More...

vtkSmartPointer< vtkPlane >	planeY
	Plane equation for plane sections. More...

vtkSmartPointer< vtkPlane >	planeZ
	Plane equation for plane sections. More...

vtkSmartPointer< vtkGlyphSource2D >	arrow2d
	Arrow glyph source. More...

vtkSmartPointer< vtkTransformPolyDataFilter >	arrow3d
	Arrow glyph source. More...

vtkSmartPointer< vtkTransform >	arrow3dt
	Arrow glyph source. More...

vtkSmartPointer< vtkArrowSource >	arrow3ds
	Arrow glyph source. More...

vtkSmartPointer< vtkActor >	isosurface_plot
	Isosurface plot actor. More...

vtkSmartPointer< vtkContourFilter >	isosurface_filter
	Isosurface plot filter. More...

vtkSmartPointer< vtkActor >	isoline_plot
	Isoline plot actor. More...

vtkSmartPointer< vtkContourFilter >	isoline_filter
	Isoline plot filter. More...

vtkSmartPointer< vtkActor >	elevation_plot
	Items for elevation plot. More...

vtkSmartPointer< vtkActor >	surface_plot
	Items for surface plot. More...

vtkSmartPointer< vtkTransform >	warp_transform
	Items for elevation plot. More...

vtkSmartPointer< vtkCubeAxesActor2D >	axes
	Axes actor. More...

vtkSmartPointer< vtkActor >	box
	Box actor. More...

vtkSmartPointer< vtkActor >	outline
	Outline plot actor. More...

vtkSmartPointer< vtkTrivialProducer >	data_producer =NULL
	Data producer for grid dataset. More...

vtkSmartPointer< vtkTrivialProducer >	boundary_data_producer =NULL
	Data producer for boundary grid dataset. More...

double	coordinate_scale_factor
	coordinate scale More...

std::string	dataname
	Name of data item in data set. More...

vtkSmartPointer< vtkIdList >	celllist =0
	Cell mask. More...

vtkSmartPointer< vtkLookupTable >	surface_lut
	Color lookup table for surface plots. More...

RGBTable	surface_rgbtab {{0,0,0,1},{1,1,0,0}}
	Color table for surface plots. More...

vtkSmartPointer< vtkLookupTable >	quiver_lut
	Color lookup table for quiver plots. More...

RGBTable	quiver_rgbtab {{0,0,0,0},{1,0,0,0}}
	Color table for quiver plots. More...

vtkSmartPointer< vtkLookupTable >	stream_lut
	Color lookup table for stream plots. More...

RGBTable	stream_rgbtab {{0,0,0,1},{1,1,0,0}}
	Color table for stream plots. More...

vtkSmartPointer< vtkLookupTable >	elevation_lut
	Color lookup table for elevation plots. More...

RGBTable	elevation_rgbtab {{0.0,0.9,0.9,0.9},{1.0,0.9,0.9,0.9}}
	Color table for elevation plots. More...

vtkSmartPointer< vtkLookupTable >	cell_lut
	Color lookup table for grid plot cell colors. More...

RGBTable	cell_rgbtab
	Color table for grid plot cell colors. More...

vtkSmartPointer< vtkLookupTable >	bface_lut
	Color lookup table for grid plot boundary colors. More...

RGBTable	bface_rgbtab
	Color table for grid plot boundary colors. More...

vtkSmartPointer< vtkScalarBarActor >	cbar =NULL
	Cell color bar for grid plots. More...

vtkSmartPointer< vtkScalarBarActor >	bcbar =NULL
	Boundary color bar for grid plots. More...

struct {
double vmin_set =1.0e100
	min/max set through api More...

double real_vmin =0
	min/max generated from api and data More...

double data_vmin =0
	min/max calculated from data More...

double xmin =1.0
	View volume data. More...

}	state
	figure state More...

struct {
}	edit
	edit state More...

std::vector< vtkSmartPointer< vtkContextActor > >	ctxactors
	The different actor lists. More...

double	bgcolor [3] ={1,1,1}
	default background color More...

int	framepos =0
	position in its respective frame More...

Detailed Description

XY Function plot.

This class is based on vtkXYPlotActor, which has its restrictions.

Notably missing are: logscales, different marker sizes, different line widths, more line types etc.

Member Function Documentation

◆ New()

static std::shared_ptr<XYPlot> vtkfig::XYPlot::New ( )

static

Smartpointer construtor.

Examples: example-multifig.cxx, example-multiframe.cxx, and example-xyplot.cxx.

◆ SubClassName()

virtual std::string vtkfig::XYPlot::SubClassName ( )

finaloverridevirtual

Get subclass name (for s-c communication, should be replaced by tag.

Reimplemented from vtkfig::Figure.

◆ Clear()

void vtkfig::XYPlot::Clear ( )

Remove all data from plot.

Examples: example-multifig.cxx, and example-multiframe.cxx.

◆ SetTitle()

void vtkfig::XYPlot::SetTitle ( const std::string t )

Set the title of the plot.

◆ SetXTitle()

void vtkfig::XYPlot::SetXTitle ( const std::string t )

Set the title of the x axis.

◆ SetYTitle()

void vtkfig::XYPlot::SetYTitle ( const std::string t )

Set the title of the y axis.

◆ SetXRange()

void vtkfig::XYPlot::SetXRange	(	double	x0,
		double	x1
	)

Set the range of the x values.

Setting x1 < x0 enables autodetection

◆ SetYRange()

void vtkfig::XYPlot::SetYRange	(	double	y0,
		double	y1
	)

Set the range of the y values.

Setting y1 < y0 enables autodetection

Examples: example-multifig.cxx, and example-multiframe.cxx.

◆ SetNumberOfXLabels()

void vtkfig::XYPlot::SetNumberOfXLabels ( int n )

Set the number of x axis labels.

◆ SetNumberOfYLabels()

void vtkfig::XYPlot::SetNumberOfYLabels ( int n )

Set the number of y axis labels.

◆ SetXAxisLabelFormat()

void vtkfig::XYPlot::SetXAxisLabelFormat ( const std::string fmt )

Set the format string for x axis labels.

◆ SetYAxisLabelFormat()

void vtkfig::XYPlot::SetYAxisLabelFormat ( const std::string fmt )

Set the format string for y axis labels.

◆ AdjustLabels()

void vtkfig::XYPlot::AdjustLabels ( bool b )

Adjust labels to "nice values" ?

If true, labels are adjusted to some rounded values. This is a bit experimental though.

◆ ShowGrid()

void vtkfig::XYPlot::ShowGrid ( bool b )

Show grid lines in the plot ?

◆ SetGridColor()

void vtkfig::XYPlot::SetGridColor	(	double	r,
		double	g,
		double	b
	)

Set the color of the grid lines.

◆ SetAxesColor()

void vtkfig::XYPlot::SetAxesColor	(	double	r,
		double	g,
		double	b
	)

Set the color of the axes.

◆ ShowLegend()

void vtkfig::XYPlot::ShowLegend ( bool b )

Show a legend box ?

◆ SetLegendPosition()

void vtkfig::XYPlot::SetLegendPosition	(	double	x,
		double	y
	)

Set the position of the legend box.

Use normalized viewport coordinates ( [0,1]x[0,1] )

◆ SetLegendSize()

void vtkfig::XYPlot::SetLegendSize	(	double	w,
		double	h
	)

Set the size of the legend box.

Use normalized viewport coordinates ( [0,1]x[0,1] )

◆ SetPlotLineType()

void vtkfig::XYPlot::SetPlotLineType ( const std::string type )

Set the line type of the next plot.

If it is "none" or "off", no line is plotted. Otherwise, currently the only value is "-"

Examples: example-multifig.cxx, and example-multiframe.cxx.

◆ SetPlotLegend()

void vtkfig::XYPlot::SetPlotLegend ( const std::string legend )

Set the information for the legend entry for the next plot.

Examples: example-multifig.cxx, and example-multiframe.cxx.

◆ SetPlotColor()

void vtkfig::XYPlot::SetPlotColor	(	double	r,
		double	g,
		double	b
	)

Set the color of the next plot.

Examples: example-multifig.cxx, and example-multiframe.cxx.

◆ SetLineWidth()

void vtkfig::XYPlot::SetLineWidth ( double w )

Set the width of all lines in the plot.

◆ SetMarkerSize()

void vtkfig::XYPlot::SetMarkerSize ( double s )

Set the size of all markers in the plot.

◆ SetPlotMarkerType()

void vtkfig::XYPlot::SetPlotMarkerType ( const std::string type )

Set marker type.

For possible types, see vtkfig::XYPlot::marker_types

◆ AddPlot()

template<typename V >

void vtkfig::XYPlot::AddPlot	(	const V &	x,
		const V &	y
	)

inline

Add a pair of x/y data to the figure.

Template Parameters

V	Vector class counting from zero with member functions size() and operator[]. std::vector will work.

Parameters

x	vector of x values
y	vector of y values

Examples: example-multifig.cxx, and example-multiframe.cxx.

Here is the call graph for this function:

◆ SetBackground()

void vtkfig::Figure::SetBackground	(	double	r,
		double	g,
		double	b
	)

inlineinherited

Set background color;.

◆ SetData()

void vtkfig::Figure::SetData	(	std::shared_ptr< DataSet >	data,
		const std::string	name = `""`
	)

inherited

Add Dataset to figure.

Parameters

name	Name of scalar or vector to be shown

Examples: example-gridview2d.cxx, example-gridview3d.cxx, example-multifig.cxx, and example-multiframe.cxx.

◆ SetMaskedData()

void vtkfig::Figure::SetMaskedData	(	std::shared_ptr< DataSet >	data,
		const std::string	name,
		const std::string	maskname
	)

inherited

Add Dataset with mask to figure.

Parameters

name	Name of scalar or vector to be shown

◆ SetContourRGBTable()

void vtkfig::Figure::SetContourRGBTable	(	RGBTable &	tab,
		int	lutsize
	)

inherited

Set contour RGB table from RGBtable.

Parameters

tab	RGB table containg data.
lutsize	Size of lookup table created.

◆ SetViewVolume()

void vtkfig::Figure::SetViewVolume	(	double	xmin,
		double	xmax,
		double	ymin,
		double	ymax,
		double	zmin,
		double	zmax
	)

inlineinherited

Set view volume (e.g. to zoom in to a part)

Examples: example-custom-vtkfig.cxx.

◆ SetViewVolumeToDataSetBounds()

void vtkfig::Figure::SetViewVolumeToDataSetBounds ( )

inlineinherited

Set view volume to dataset bounds (to overview the full dataset)

◆ SetValueRange()

void vtkfig::Figure::SetValueRange	(	double	vmin,
		double	vmax
	)

inlineinherited

Set Range of values.

◆ SetAccumulateRange()

void vtkfig::Figure::SetAccumulateRange ( bool b )

inlineinherited

Accumulate value ranges during run.

◆ SetXYAspect()

void vtkfig::Figure::SetXYAspect ( double a )

inlineinherited

Set fixed xy aspect ratio.

◆ KeepXYAspect()

void vtkfig::Figure::KeepXYAspect ( bool b )

inlineinherited

Keep aspect ratio.

◆ SetTransformDirty()

void vtkfig::Figure::SetTransformDirty ( )

inherited

InvalidateTransform.

◆ ShowDomainAxes()

void vtkfig::Figure::ShowDomainAxes ( bool b )

inlineinherited

Toggle rendering of domain axes.

◆ ShowDomainBox()

void vtkfig::Figure::ShowDomainBox ( bool b )

inlineinherited

Toggle rendering of domain bounding box.

◆ ShowDomainOutline()

void vtkfig::Figure::ShowDomainOutline ( bool b )

inlineinherited

Toggle rendering of domain boundary as transparent surface.

◆ AddContextActor()

void vtkfig::Figure::AddContextActor ( vtkSmartPointer< vtkContextActor > prop )

inlineinherited

Add vtk Actor to renderer showing figure.

Intended for custom pipeline.

Here is the call graph for this function:

◆ AddActor()

void vtkfig::Figure::AddActor ( vtkSmartPointer< vtkActor > prop )

inlineinherited

Add vtk Actor to renderer showing figure.

Intended for custom pipeline.

Examples: example-custom-vtkfig.cxx.

Here is the call graph for this function:

◆ AddActor2D()

void vtkfig::Figure::AddActor2D ( vtkSmartPointer< vtkActor2D > prop )

inlineinherited

Add vtk Actor to renderer showing figure.

Intended for custom pipeline.

Examples: example-custom-vtkfig.cxx.

Here is the call graph for this function:

◆ Message()

void vtkfig::Figure::Message ( std::string msg )

inlineinherited

Show string in message field.

Intended for custom pipeline.

Here is the call graph for this function:

◆ AddAnnotations()

void vtkfig::Figure::AddAnnotations ( )

inlineinherited

Add annotations.

Intended for custom pipeline.

Here is the call graph for this function:

◆ RTAddContextActor()

void vtkfig::Figure::RTAddContextActor ( vtkSmartPointer< vtkContextActor > prop )

inherited

Add vtk Actor to renderer showing figure.

Usually, this is called from the render thread, it can however be useful in custom pipelines

◆ RTAddActor()

void vtkfig::Figure::RTAddActor ( vtkSmartPointer< vtkActor > prop )

inherited

Add vtk Actor to renderer showing figure.

Usually, this is called from the render thread, it can however be useful in custom pipelines

◆ RTAddActor2D()

void vtkfig::Figure::RTAddActor2D ( vtkSmartPointer< vtkActor2D > prop )

inherited

Add vtk Actor to renderer showing figure.

Usually, this is called from the render thread, it can however be useful in custom pipelines

◆ RTMessage()

void vtkfig::Figure::RTMessage ( std::string msg )

inherited

Show string in message field.

Usually, this is called from the render thread, it can however be useful in custom pipelines

◆ RTAddAnnotations()

void vtkfig::Figure::RTAddAnnotations ( )

inherited

Add annotations.

Usually, this is called from the render thread, it can however be useful in custom pipelines

◆ RTInitAnnotations()

void vtkfig::Figure::RTInitAnnotations ( )

inherited

Init annotations.

Called by RTAddAnnotations() or RTMessage()

◆ MPSendRGBTable()

static void vtkfig::Figure::MPSendRGBTable	(	vtkSmartPointer< internals::Communicator >	communicator,
		RGBTable &	rgbtab
	)

staticinherited

Send rgb table to client.

◆ MPReceiveRGBTable()

static void vtkfig::Figure::MPReceiveRGBTable	(	vtkSmartPointer< internals::Communicator >	communicator,
		RGBTable &	rgbtab
	)

staticinherited

Receive rgb table from client.

◆ RTCalcTransform()

void vtkfig::Figure::RTCalcTransform ( )

inherited

Calculate transformation to unit cube This shall be applied to all data.

Camera is fixed.

◆ SetVMinMax()

void vtkfig::Figure::SetVMinMax ( )

inherited

Set minmax values from data.

◆ GenIsolevels()

void vtkfig::Figure::GenIsolevels ( )

inherited

Generate isolevels after minmax data known.

◆ RTBuildVTKPipeline()

virtual void vtkfig::Figure::RTBuildVTKPipeline ( )

inlinevirtualinherited

Subclasses re-implement this in order to build the vtk rendering pipeline.

◆ RTBuildDomainPipeline()

void vtkfig::Figure::RTBuildDomainPipeline ( vtkSmartPointer< vtkRenderer > renderer )

inherited

Build domain pipeline for 2D/3D figures (box, suface, axes)

◆ RTBuildDomainPipeline0()

template<class DATA >

void vtkfig::Figure::RTBuildDomainPipeline0 ( vtkSmartPointer< vtkRenderer > renderer )

inherited

Duck typing interface allowing to handle different VTK datatypes with the same code.

◆ ServerMPSendData()

void vtkfig::Figure::ServerMPSendData ( vtkSmartPointer< internals::Communicator > communicator )

inherited

Send data to client.

Called from rendering thread.

◆ ClientMPReceiveData()

void vtkfig::Figure::ClientMPReceiveData ( vtkSmartPointer< internals::Communicator > communicator )

inherited

Receive data from server.

◆ RTProcessKey()

virtual void vtkfig::Figure::RTProcessKey ( const std::string key )

virtualinherited

Process keyboard event.

◆ RTProcessMove()

virtual void vtkfig::Figure::RTProcessMove	(	int	dx,
		int	dy
	)

virtualinherited

Process mouse event.

◆ RTRefreshState()

void vtkfig::Figure::RTRefreshState ( )

inherited

Trigger necessary actions to set state variables.

◆ RTProcessPlaneKey()

int vtkfig::Figure::RTProcessPlaneKey	(	const std::string	plane,
		int	idim,
		const std::string	key,
		bool &	edit,
		vtkSmartPointer< vtkCutter >	planecut
	)

inherited

Process keyboard and mouse move events for plane section editing.

◆ RTProcessPlaneMove()

int vtkfig::Figure::RTProcessPlaneMove	(	const std::string	plane,
		int	idim,
		int	dx,
		int	dy,
		bool &	edit,
		vtkSmartPointer< vtkCutter >	planecut
	)

inherited

Process keyboard and mouse move events for plane section editing.

◆ RTShowPlanePos()

void vtkfig::Figure::RTShowPlanePos	(	vtkSmartPointer< vtkCutter >	planecut,
		const std::string	plane,
		int	idim
	)

inherited

Process keyboard and mouse move events for plane section editing.

◆ RTProcessIsoKey()

int vtkfig::Figure::RTProcessIsoKey	(	const std::string	key,
		bool &	edit
	)

inherited

Process keyboard and mouse move events for isolevel editing.

◆ RTProcessIsoMove()

int vtkfig::Figure::RTProcessIsoMove	(	int	dx,
		int	dy,
		bool &	edit
	)

inherited

Process keyboard and mouse move events for isolevel editing.

◆ RTShowIsolevel()

void vtkfig::Figure::RTShowIsolevel ( )

inherited

Process keyboard and mouse move events for isolevel editing.

◆ RTUpdateIsoSurfaceFilter()

void vtkfig::Figure::RTUpdateIsoSurfaceFilter ( )

inherited

Process keyboard and mouse move events for isolevel editing.

◆ RTProcessArrowKey()

int vtkfig::Figure::RTProcessArrowKey	(	const std::string	key,
		bool &	edit
	)

inherited

Process keyboard events for quiver arrow editing etc.

◆ RTProcessArrowMove()

int vtkfig::Figure::RTProcessArrowMove	(	int	dx,
		int	dy,
		bool &	edit
	)

inherited

Process mouse move events for quiver arrow editing etc.

◆ RTShowArrowScale()

void vtkfig::Figure::RTShowArrowScale ( )

inherited

Show arrow scale informtion.

◆ RTShowActive()

void vtkfig::Figure::RTShowActive ( )

inherited

Show figure is active [x].

◆ RTShowInActive()

void vtkfig::Figure::RTShowInActive ( )

inherited

Show figure is inactive [ ].

◆ IsEmpty()

bool vtkfig::Figure::IsEmpty ( )

inherited

Check if figure is empty (== no actors added)

◆ RTUpdateActors()

void vtkfig::Figure::RTUpdateActors ( )

inherited

Update all actors belonging to figure.

◆ SetRange()

void vtkfig::Figure::SetRange ( )

inherited

Obtain the data range from the relevant dataset.

Member Data Documentation

◆ annot

vtkSmartPointer<vtkCornerAnnotation> vtkfig::Figure::annot

inherited

Title+message text fields.

◆ transform

vtkSmartPointer<vtkTransform> vtkfig::Figure::transform =0

inherited

Transformation.

◆ planecutX

vtkSmartPointer<vtkCutter> vtkfig::Figure::planecutX

inherited

Cutter for plane sections.

◆ planecutY

vtkSmartPointer<vtkCutter> vtkfig::Figure::planecutY

inherited

Cutter for plane sections.

◆ planecutZ

vtkSmartPointer<vtkCutter> vtkfig::Figure::planecutZ

inherited

Cutter for plane sections.

◆ planeX

vtkSmartPointer<vtkPlane> vtkfig::Figure::planeX

inherited

Plane equation for plane sections.

◆ planeY

vtkSmartPointer<vtkPlane> vtkfig::Figure::planeY

inherited

Plane equation for plane sections.

◆ planeZ

vtkSmartPointer<vtkPlane> vtkfig::Figure::planeZ

inherited

Plane equation for plane sections.

◆ arrow2d

vtkSmartPointer<vtkGlyphSource2D> vtkfig::Figure::arrow2d

inherited

Arrow glyph source.

◆ arrow3d

vtkSmartPointer<vtkTransformPolyDataFilter> vtkfig::Figure::arrow3d

inherited

Arrow glyph source.

◆ arrow3dt

vtkSmartPointer<vtkTransform> vtkfig::Figure::arrow3dt

inherited

Arrow glyph source.

◆ arrow3ds

vtkSmartPointer<vtkArrowSource> vtkfig::Figure::arrow3ds

inherited

Arrow glyph source.

◆ isosurface_plot

vtkSmartPointer<vtkActor> vtkfig::Figure::isosurface_plot

inherited

Isosurface plot actor.

◆ isosurface_filter

vtkSmartPointer<vtkContourFilter> vtkfig::Figure::isosurface_filter

inherited

Isosurface plot filter.

◆ isoline_plot

vtkSmartPointer<vtkActor> vtkfig::Figure::isoline_plot

inherited

Isoline plot actor.

◆ isoline_filter

vtkSmartPointer<vtkContourFilter> vtkfig::Figure::isoline_filter

inherited

Isoline plot filter.

◆ elevation_plot

vtkSmartPointer<vtkActor> vtkfig::Figure::elevation_plot

inherited

Items for elevation plot.

◆ surface_plot

vtkSmartPointer<vtkActor> vtkfig::Figure::surface_plot

inherited

Items for surface plot.

◆ warp_transform

vtkSmartPointer<vtkTransform> vtkfig::Figure::warp_transform

inherited

Items for elevation plot.

◆ axes

vtkSmartPointer<vtkCubeAxesActor2D> vtkfig::Figure::axes

inherited

Axes actor.

◆ box

vtkSmartPointer<vtkActor> vtkfig::Figure::box

inherited

Box actor.

◆ outline

vtkSmartPointer<vtkActor> vtkfig::Figure::outline

inherited

Outline plot actor.

◆ data_producer

vtkSmartPointer<vtkTrivialProducer> vtkfig::Figure::data_producer =NULL

inherited

Data producer for grid dataset.

◆ boundary_data_producer

vtkSmartPointer<vtkTrivialProducer> vtkfig::Figure::boundary_data_producer =NULL

inherited

Data producer for boundary grid dataset.

◆ coordinate_scale_factor

double vtkfig::Figure::coordinate_scale_factor

inherited

coordinate scale

◆ dataname

std::string vtkfig::Figure::dataname

inherited

Name of data item in data set.

◆ celllist

vtkSmartPointer<vtkIdList> vtkfig::Figure::celllist =0

inherited

Cell mask.

◆ surface_lut

vtkSmartPointer<vtkLookupTable> vtkfig::Figure::surface_lut

inherited

Color lookup table for surface plots.

◆ surface_rgbtab

RGBTable vtkfig::Figure::surface_rgbtab {{0,0,0,1},{1,1,0,0}}

inherited

Color table for surface plots.

◆ quiver_lut

vtkSmartPointer<vtkLookupTable> vtkfig::Figure::quiver_lut

inherited

Color lookup table for quiver plots.

◆ quiver_rgbtab

RGBTable vtkfig::Figure::quiver_rgbtab {{0,0,0,0},{1,0,0,0}}

inherited

Color table for quiver plots.

◆ stream_lut

vtkSmartPointer<vtkLookupTable> vtkfig::Figure::stream_lut

inherited

Color lookup table for stream plots.

◆ stream_rgbtab

RGBTable vtkfig::Figure::stream_rgbtab {{0,0,0,1},{1,1,0,0}}

inherited

Color table for stream plots.

◆ elevation_lut

vtkSmartPointer<vtkLookupTable> vtkfig::Figure::elevation_lut

inherited

Color lookup table for elevation plots.

◆ elevation_rgbtab

RGBTable vtkfig::Figure::elevation_rgbtab {{0.0,0.9,0.9,0.9},{1.0,0.9,0.9,0.9}}

inherited

Color table for elevation plots.

◆ cell_lut

vtkSmartPointer<vtkLookupTable> vtkfig::Figure::cell_lut

inherited

Color lookup table for grid plot cell colors.

◆ cell_rgbtab

RGBTable vtkfig::Figure::cell_rgbtab

inherited

Initial value:

{
      {0.00, 1.0, 0.5, 0.5},
      {0.25, 1.0, 1.0, 0.5},
      {0.50, 0.5, 1.0, 0.5},
      {0.75, 0.5, 1.0, 1.0},
      {1.00, 0.5, 0.5, 1.0}}

Color table for grid plot cell colors.

◆ bface_lut

vtkSmartPointer<vtkLookupTable> vtkfig::Figure::bface_lut

inherited

Color lookup table for grid plot boundary colors.

◆ bface_rgbtab

RGBTable vtkfig::Figure::bface_rgbtab

inherited

Initial value:

{
      {0.00, 0.8, 0.0, 0.0},
      {0.25, 0.8, 0.8, 0.0},
      {0.50, 0.0, 0.8, 0.0},
      {0.75, 0.0, 0.8, 0.8},
      {1.00, 0.0, 0.0, 0.8}}

Color table for grid plot boundary colors.

◆ cbar

vtkSmartPointer<vtkScalarBarActor> vtkfig::Figure::cbar =NULL

inherited

Cell color bar for grid plots.

◆ bcbar

vtkSmartPointer<vtkScalarBarActor> vtkfig::Figure::bcbar =NULL

inherited

Boundary color bar for grid plots.

◆ vmin_set

double vtkfig::Figure::vmin_set =1.0e100

inherited

min/max set through api

◆ real_vmin

double vtkfig::Figure::real_vmin =0

inherited

min/max generated from api and data

◆ data_vmin

double vtkfig::Figure::data_vmin =0

inherited

min/max calculated from data

◆ xmin

double vtkfig::Figure::xmin =1.0

inherited

View volume data.

◆ state

struct { ... } vtkfig::Figure::state

figure state

◆ edit

struct { ... } vtkfig::Figure::edit

edit state

◆ ctxactors

std::vector<vtkSmartPointer<vtkContextActor> > vtkfig::Figure::ctxactors

inherited

The different actor lists.

◆ bgcolor

double vtkfig::Figure::bgcolor[3] ={1,1,1}

inherited

default background color

◆ framepos

int vtkfig::Figure::framepos =0

inherited

position in its respective frame

The documentation for this class was generated from the following file:
