10-numcxx-expressions.cxx File Reference

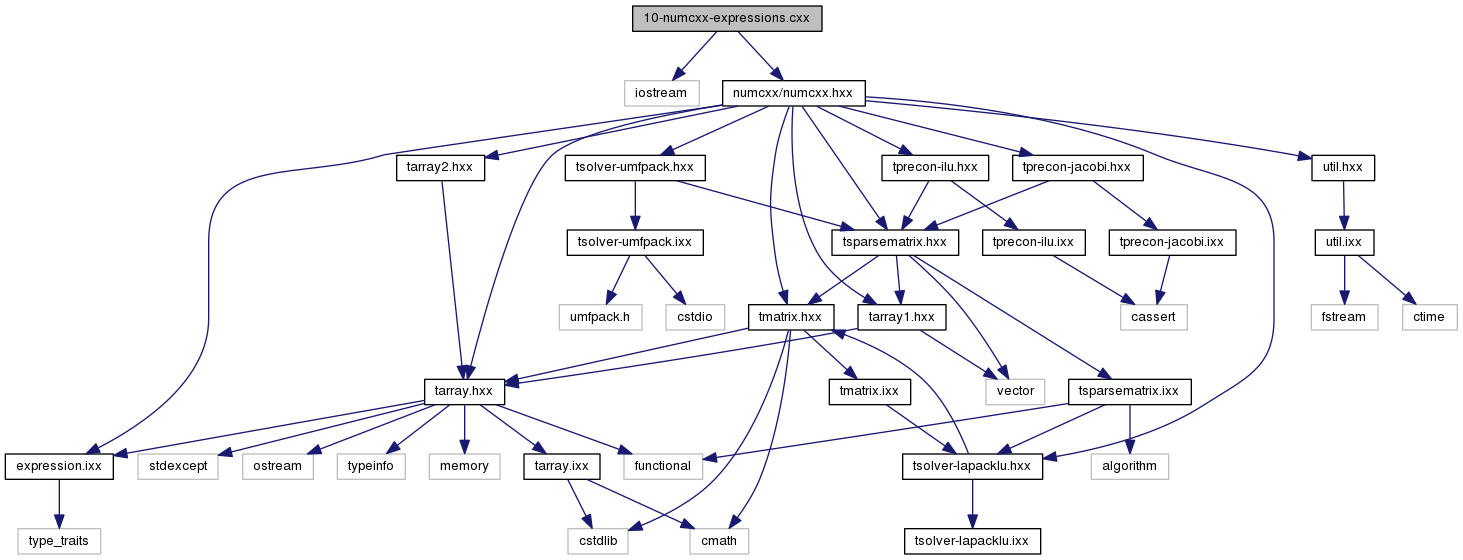

Include dependency graph for 10-numcxx-expressions.cxx:

Go to the source code of this file.

Functions
int	main ()

Function Documentation

int main

(

void

)

Examples:

10-numcxx-expressions.cxx.

Definition at line 31 of file 10-numcxx-expressions.cxx.

{
  const int n=3;
  // Declare three  arrays with double  elements.  Like in  the case
  // with std::vector, the contents of  a class object is placed on
  // the stack, but the large data array is put on the heap.

  numcxx::TArray1<double> A(n);
  numcxx::TArray1<double> B(n);
  numcxx::TArray1<double> C(n);
  numcxx::TArray1<double> D(n);

  // We can assign constant values to an array.
  // The expression template trick allows to do the same for B
  // as the loop does for A.
  for (int i=0;i<n;i++)
    A(i)=3.0;
  B=3.0;

  std::cout << "Assigning constant values to an array:" << std::endl;
  // numcxx arrays can be printed via iostreams.
  std::cout << "A:"<< std::endl << A << std::endl;
  std::cout << "B:"<< std::endl << B << std::endl;

  for (int i=0;i<n;i++)
    A(i)=i+5;
  B=A;

  std::cout << "Copying data from one array to the other:" << std::endl;
  std::cout << "A:"<< std::endl << A << std::endl;
  std::cout << "B:"<< std::endl << B << std::endl;

  // On arrays of the same size, we can perform the operations
  // allowed for elements of a vector space, i.e. addition, subraction and
  // multiplication by scalars.
  // The expression template trick allows to do the same for C
  // as the loop does for D.
  for (int i=0;i<n;i++)
    C(i)=3*A(i)+B(i);
  D=3*A+B;
  std::cout << "Arithmetic expressions:" << std::endl;
  std::cout << "C:"<< std::endl << C << std::endl;
  std::cout << "D:"<< std::endl << C << std::endl;


  // In array expressions, stay safe and avoid
  // auto on the left hand side!
  numcxx::TArray1<double> E=A+17*B;

  // If you want to use auto, do it like this.
  auto F=numcxx::arrayexpr(A+17*B);

  // The alternative
  // auto F=A+17*B;
  // won't work with << or later use of F on the left
  // hand side of expressions because the type of F detected
  // by auto is the expression template, not the vector.
  // Here, it would  be detected at compile time.

  std::cout << "Avoiding auto with expression templates:" << std::endl;
  std::cout << "E:"<< std::endl << E << std::endl;
  std::cout << "F:"<< std::endl << F << std::endl;

  // This is the real dangerous situation with auto,
  // described in https://eigen.tuxfamily.org/dox/TopicPitfalls.html
  auto G=numcxx::arrayexpr(19*A+10*B);

  // With
  // auto G=19*A+10*B;
  // G would be an instance of an intermediate type which contains
  // A and B and the possibility to calculate the result of the rhs expression.
  // Changing A would change also A in G and lead to a different result.
  // This is not detected at compile time!
  A(1)++;
  E=G+E;
  std::cout << "Pitfalls of auto:" << std::endl;
  std::cout << "E:"<< std::endl << E << std::endl;

}

Here is the call graph for this function:
