45-convdiff1d.cxx File Reference

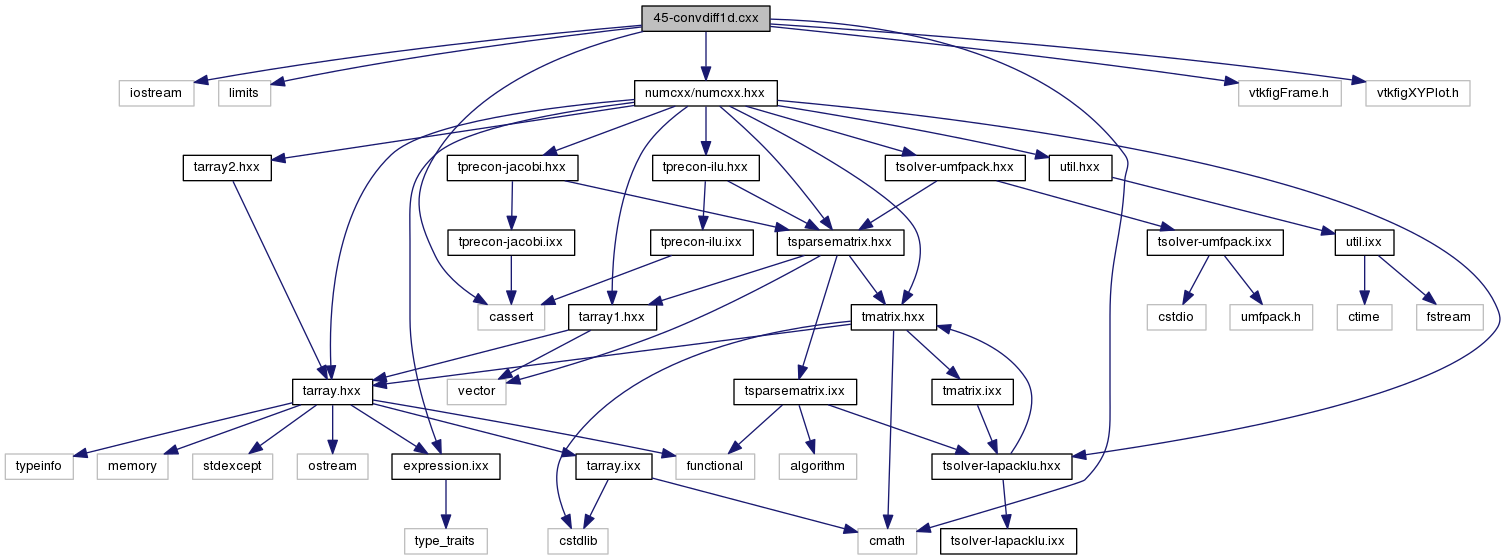

+ Include dependency graph for 45-convdiff1d.cxx:

Go to the source code of this file.

Functions

double B (double x)

void solve_expfit (double v, double D, numcxx::DArray1 &U)

void solve_central (double v, double D, numcxx::DArray1 &U)

void solve_upwind (double v, double D, numcxx::DArray1 &U)

int main (void)


Function Documentation

double B ( double  x)
inline
Examples:
10-numcxx-expressions.cxx, and 45-convdiff1d.cxx.

Definition at line 21 of file 45-convdiff1d.cxx.

22 {
23  if (std::fabs(x)<1.0e-10) return 1.0;
24  return x/(std::exp(x)-1.0);
25 }
void solve_expfit ( double  v,
double  D,
numcxx::DArray1 U
)
Examples:
45-convdiff1d.cxx.

Definition at line 27 of file 45-convdiff1d.cxx.

28 {
29  int n=U.size();
30  auto h=1.0/(double)(n-1);
31  numcxx::DSparseMatrix A(n,n);
32  numcxx::DArray1 F(n);
33
34  F=0;
35  U=0;
36  for (int k=0, l=1;k<n-1;k++,l++)
37  {
38  double g_kl=D* B(v*h/D);
39  double g_lk=D* B(-v*h/D);
40  A(k,k)+=g_kl/h;
41  A(k,l)-=g_kl/h;
42  A(l,l)+=g_lk/h;
43  A(l,k)-=g_lk/h;
44  }
45
46  A(0,0)+=1.0e30;
47  A(n-1,n-1)+=1.0e30;
48  F(n-1)=1.0e30;
49  A.flush();
50
51  numcxx::DSolverUMFPACK Solver(A);
52  Solver.update(A);
53  Solver.solve(U,F);
54
55 }
Sparse matrix class using CRS storage scheme.
size_t size() const
Obtain size of array.
Definition: tarray.hxx:58
One dimensional array class.
Definition: tarray1.hxx:31
double B(double x)
Bridge class for using umfpack as solver for vmatrix.

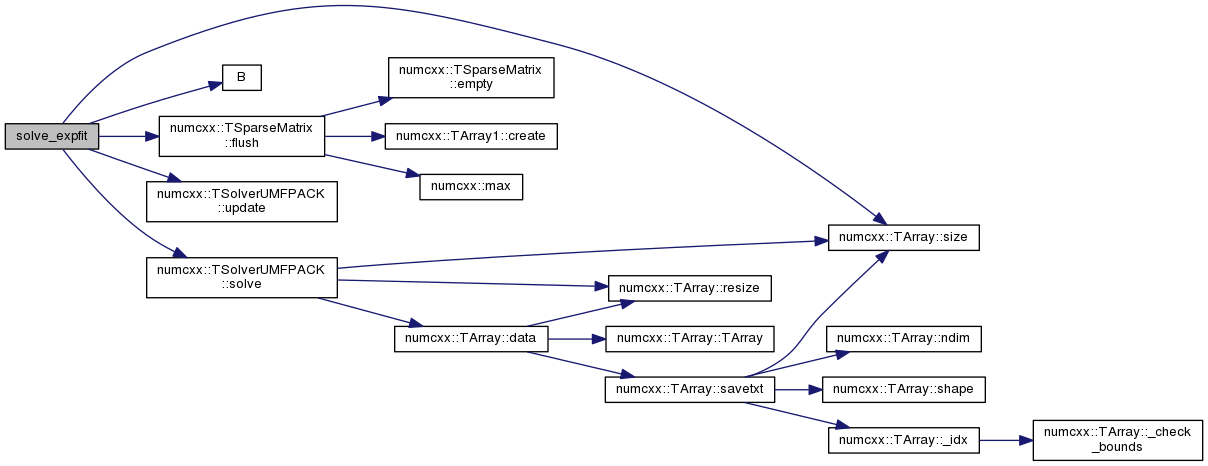

+ Here is the call graph for this function:

void solve_central ( double  v,
double  D,
numcxx::DArray1 U
)
Examples:
45-convdiff1d.cxx.

Definition at line 57 of file 45-convdiff1d.cxx.

58 {
59  int n=U.size();
60  auto h=1.0/(double)(n-1);
61  numcxx::DSparseMatrix A(n,n);
62  numcxx::DArray1 F(n);
63
64  F=0;
65  U=0;
66  double g_kl=D - 0.5*(v*h);
67  double g_lk=D + 0.5*(v*h);
68  for (int k=0, l=1;k<n-1;k++,l++)
69  {
70  A(k,k)+=g_kl/h;
71  A(k,l)-=g_kl/h;
72  A(l,l)+=g_lk/h;
73  A(l,k)-=g_lk/h;
74  }
75
76  A(0,0)+=1.0e30;
77  A(n-1,n-1)+=1.0e30;
78  F(n-1)=1.0e30;
79  A.flush();
80
81  numcxx::DSolverUMFPACK Solver(A);
82  Solver.update(A);
83  Solver.solve(U,F);
84
85 }
Sparse matrix class using CRS storage scheme.
size_t size() const
Obtain size of array.
Definition: tarray.hxx:58
One dimensional array class.
Definition: tarray1.hxx:31
Bridge class for using umfpack as solver for vmatrix.

+ Here is the call graph for this function:

void solve_upwind ( double  v,
double  D,
numcxx::DArray1 U
)
Examples:
45-convdiff1d.cxx.

Definition at line 88 of file 45-convdiff1d.cxx.

89 {
90  int n=U.size();
91  auto h=1.0/(double)(n-1);
92  numcxx::DSparseMatrix A(n,n);
93  numcxx::DArray1 F(n);
94
95  F=0;
96  U=0;
97  for (int k=0, l=1;k<n-1;k++,l++)
98  {
99  double g_kl=D;
100  double g_lk=D;
101  if (v<0) g_kl-=v*h;
102  else g_lk+=v*h;
103
104  A(k,k)+=g_kl/h;
105  A(k,l)-=g_kl/h;
106  A(l,l)+=g_lk/h;
107  A(l,k)-=g_lk/h;
108  }
109
110  A(0,0)+=1.0e30;
111  A(n-1,n-1)+=1.0e30;
112  F(n-1)=1.0e30;
113  A.flush();
114
115  numcxx::DSolverUMFPACK Solver(A);
116  Solver.update(A);
117  Solver.solve(U,F);
118
119 }
Sparse matrix class using CRS storage scheme.
size_t size() const
Obtain size of array.
Definition: tarray.hxx:58
One dimensional array class.
Definition: tarray1.hxx:31
Bridge class for using umfpack as solver for vmatrix.

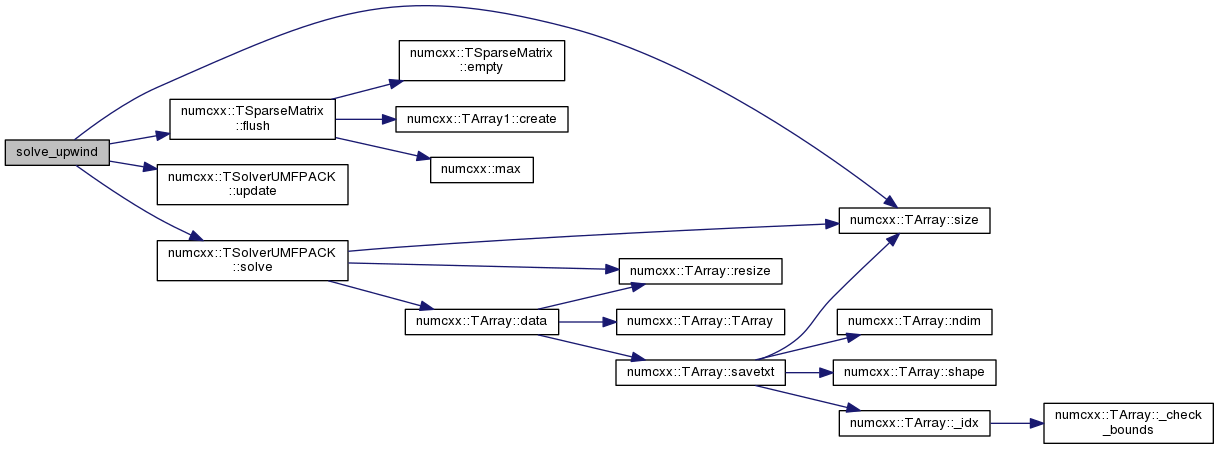

+ Here is the call graph for this function:

int main ( void  )
Examples:
45-convdiff1d.cxx.

Definition at line 124 of file 45-convdiff1d.cxx.

125 {
126
127  int n=10;
128
129  int maxref=10;
130  double D=0.01;
131  double v=1.0;
132
133  auto frame=vtkfig::Frame::New();
134  frame->SetSize(800,800);
135  auto plot=vtkfig::XYPlot::New();
136  frame->AddFigure(plot);
137
138  for (int iref=0;iref<maxref;iref++)
139  {
140  auto Uexp=numcxx::DArray1(n);
141  auto Uupw=numcxx::DArray1(n);
142  auto Ucnt=numcxx::DArray1(n);
143  auto X=numcxx::linspace(0.0,1.0,n);
144
145
146  solve_expfit(v,D,Uexp);
147  solve_central(v,D,Ucnt);
148  solve_upwind(v,D,Uupw);
149
150
151  frame->SetFrameTitle("n="+std::to_string(n));
152  plot->Clear();
153  plot->ShowGrid(false);
154
155  plot->SetXRange(0,1);
156  plot->SetYRange(-1,1);
157
158  plot->SetLegendPosition(0.3,0.7);
159  plot->SetPlotLineType("-");
160
161
162  plot->SetPlotColor(1,0,0);
163  plot->SetPlotLegend("exp");
164  plot->AddPlot(*X,Uexp);
165
166  plot->SetPlotColor(0,1,0);
167  plot->SetPlotLegend("upw");
168  plot->AddPlot(*X,Uupw);
169
170  plot->SetPlotColor(0,0,1);
171  plot->SetPlotLegend("cent");
172  plot->AddPlot(*X,Ucnt);
173
174  frame->Interact();
175
176  n*=2;
177  }
178
179 }
void solve_expfit(double v, double D, numcxx::DArray1 &U)
std::shared_ptr< TArray1< T > > linspace(T x0, T x1, int n)
Create array of $n$ equally spaced entries.
Definition: util.ixx:9
void solve_upwind(double v, double D, numcxx::DArray1 &U)
void solve_central(double v, double D, numcxx::DArray1 &U)
TArray1< double > DArray1
Definition: numcxx.hxx:38

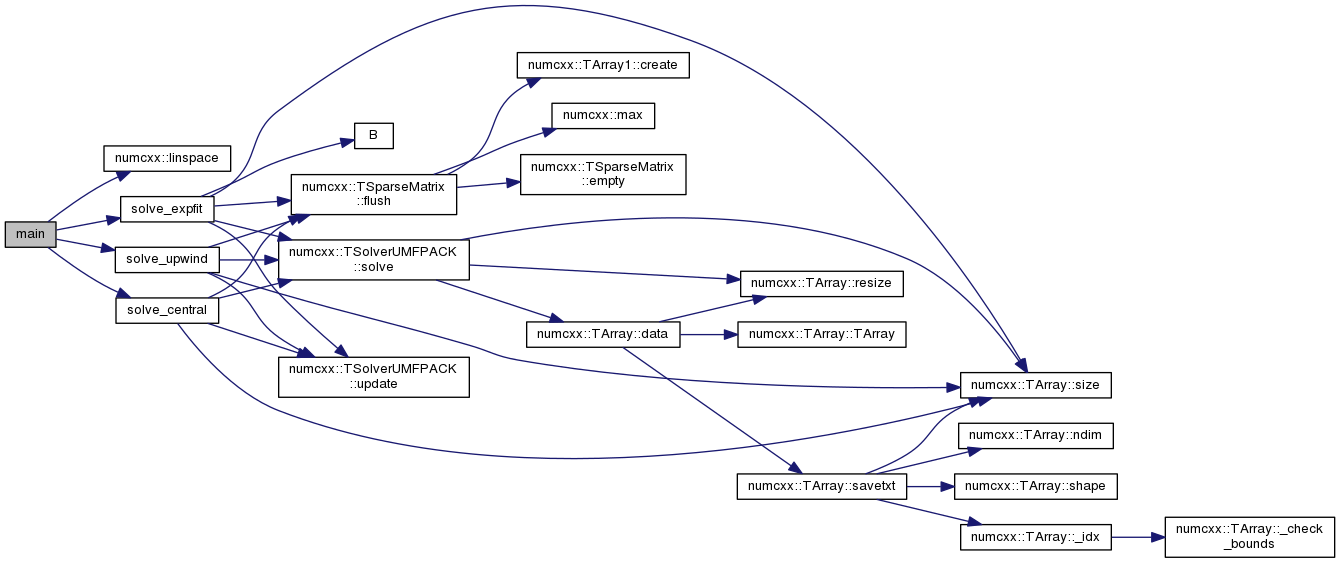

+ Here is the call graph for this function:
