TetGen generates the Delaunay tetrahedralization, Voronoi diagram, and convex hull for threedimensional point sets, generates the constrained Delaunay tetrahedralizations and quality tetrahedral meshes for threedimensional domains with piecewise linear boundary. This page illustrates some main features of TetGen.
Languages, platforms, and performances
TetGen is written in ANSI C++. The code is highly portable
it should be very easy to compile and run on all major computer
systems (e.g., Unix/Linux, Windows, MacOS, etc.).
TetGen implements the randomized incremental flip algorithm of
Edelsbrunner and Shah for Delaunay triangulation and convex hull. The
implementation is fast and memory efficient. On an Apple laptop
(2.16GHz Intel Core 2 Duo), it took TetGen 2.38 seconds to compute
the Delaunay tetrahedralization of 40,000 randomly distributed points
with 9.4Mb heap memory usage. For 1 million points, it used 93 seconds
and 234.47Mb heap memory. The test version of TetGen was compiled by
g++ with optimization switch O3.
The robustness of TetGen is enhanced by using Jonathan Shewchuk's
fast and robust
predicates to perform two important geometric tests  orientation
test and insphere test. It is essentially a fast implementation of
arbitrary precision floatingpoint arithmetic for fixed precision
floatingpoint numbers. Hence, the roundoff error is avoided and the
geometric tests are consistent.
For a set of 3D points, TetGen computes its exact Delaunay
tetrahedralization and its dual Voronoi diagram. The following

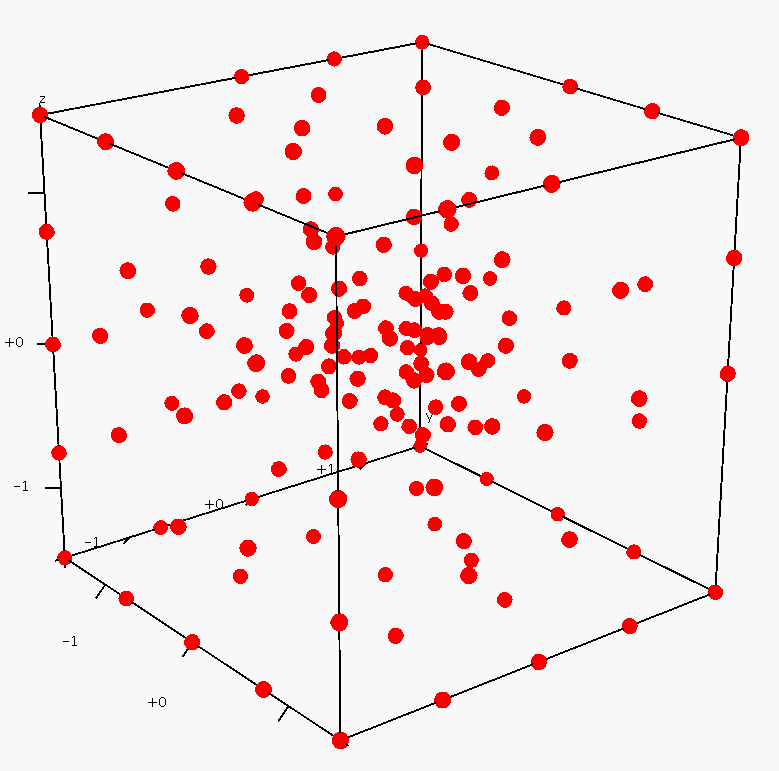

pictures show a set of 164 points sampled in a cube

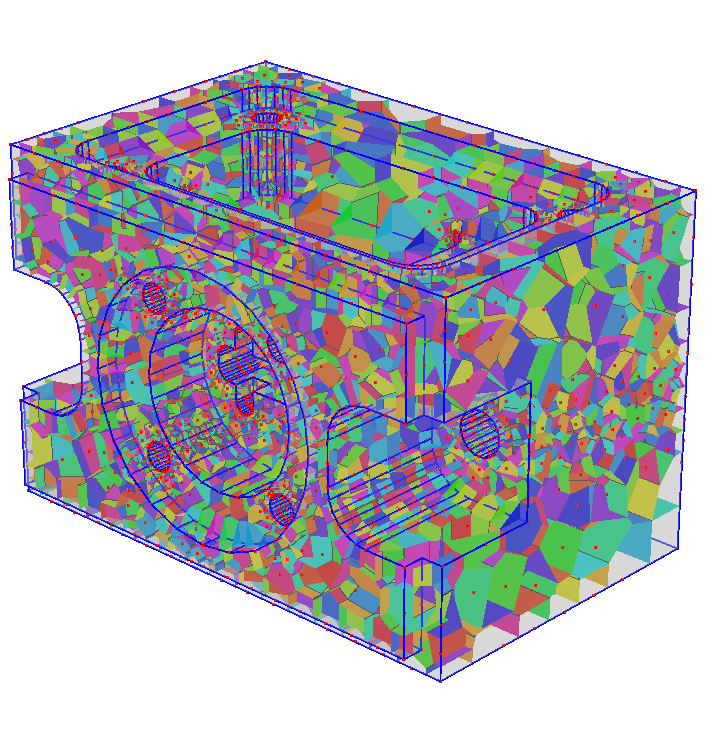

(left), the Delaunay tetrahedralization and its dual Voronoi
diagram (middle), the Voronoi faces are randomly colored for

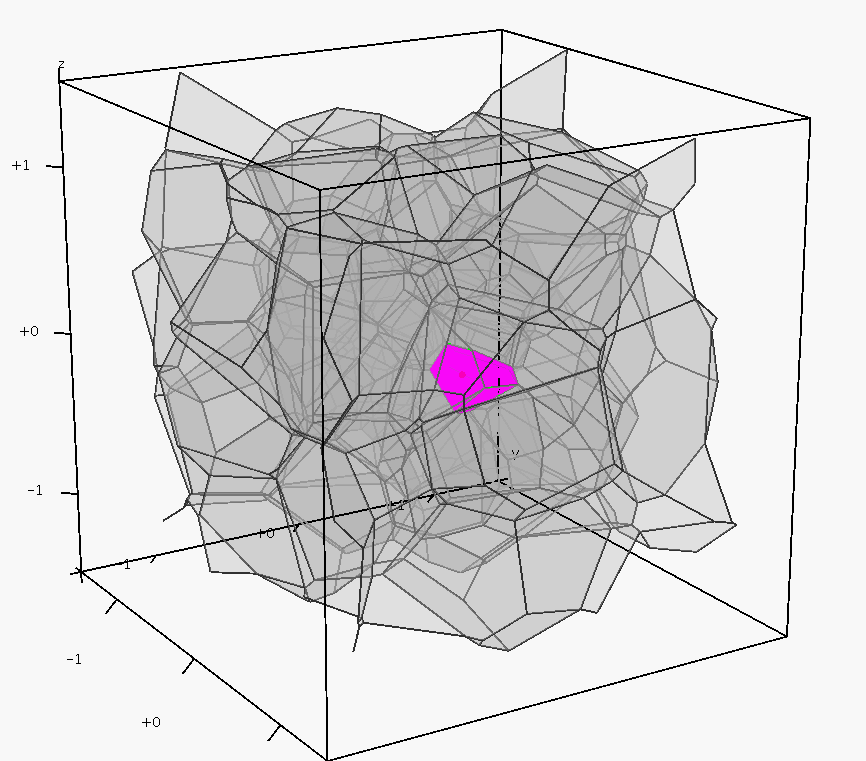

visualization, and the bounded Voronoi cells (right), an internal Voronoi cell is highlighed.
Constrained Delaunay and conforming Delaunay
tetrahedralizations

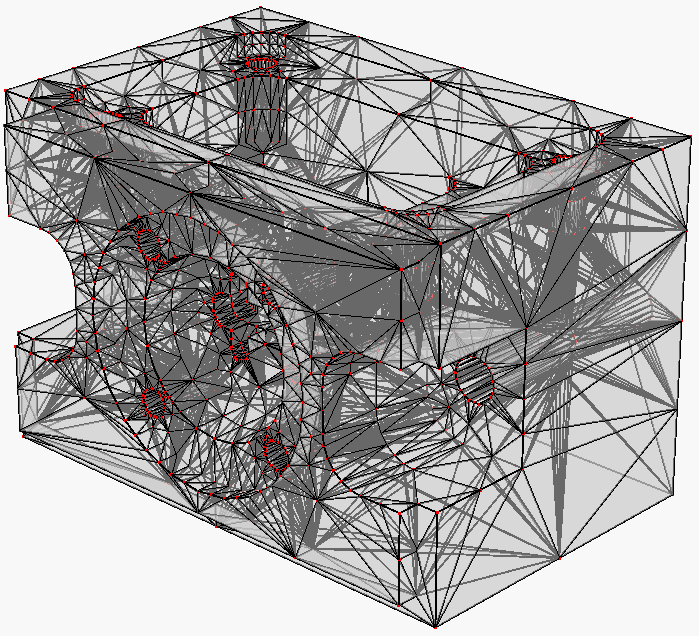

For any piecewise linear boundary (such as a surface mesh) of a 3D domain. TetGen generates a tetrahedral mesh which covers the interior of the domain and preserves the domain boundary. By default TetGen may add few additional points on the boundary so that the resulting mesh is a socalled constrained Delaunay tetrahedralization which inherites many optimal properties from the Delaunay tetrahedralization and is useful in applications like interpolation, solid modeling, etc. Alternatively, TetGen can enforce the output boundary to be identical to the input boundary. This option could be useful  for example, to combine two meshes which share the same boundary. The following two pictures respectively illustrate an input  a piecewise linear complex (left), and its constrained Delaunay tetrahedralization (right).
Boundary conforming Delaunay meshes
If the input boundary contains no acute angle (in practice, this condition can be relaxed to no input angle smaller than 60 degree), TetGen will generate a boundary conforming Delaunay mesh. The dual Voronoi diagram have all its vertices lie inside the domain. It is a desired finite volume partition for many applications. The following two pictures show a boundary conforming Delaunay mesh (left) and its dual  a Voronoi diagram (right).
Mesh quality, mesh size control
In numerical simulation, the mesh shape and mesh size are important for the approximation error and convergence of the numerical methods. TetGen performs efficient mesh refinement (inserting new vertices) to improve the overall mesh quality. The resulting tetrahedral mesh is a finite element mesh which consists of goodshaped tetrahedra and the mesh size well conforms to the boundary size or a userdefined smoothing size function.

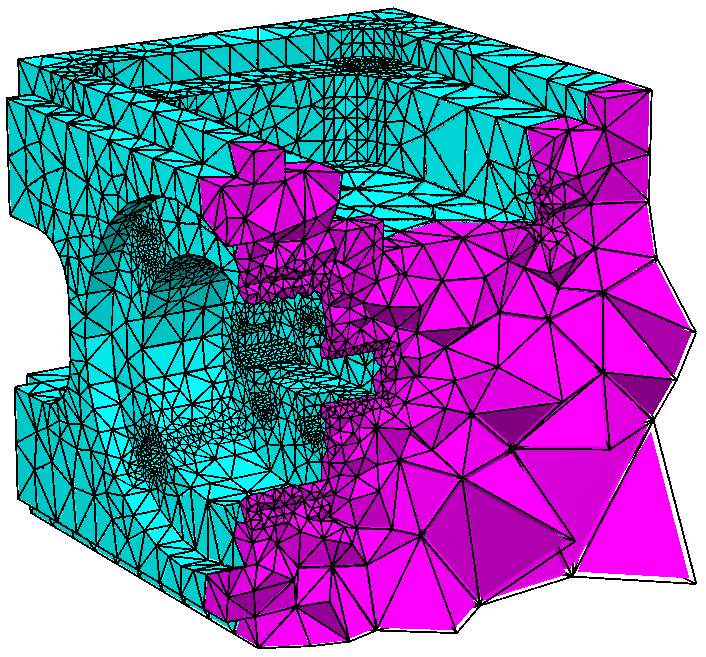

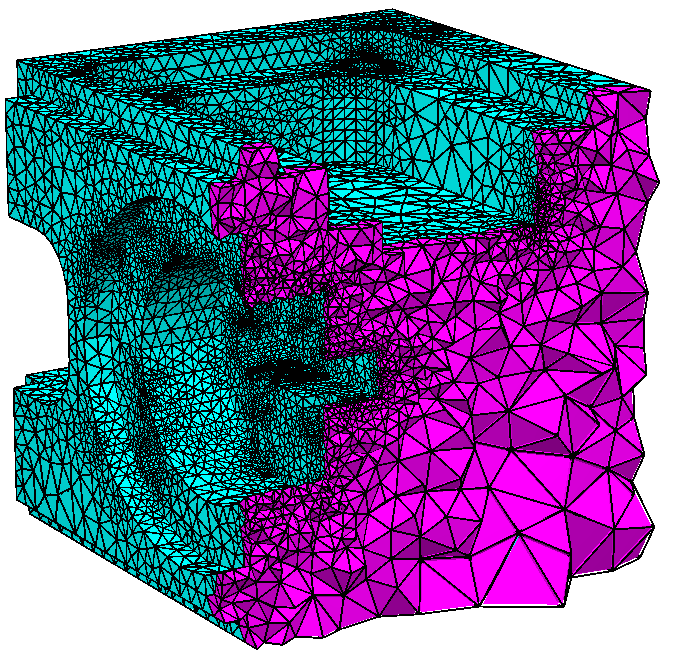

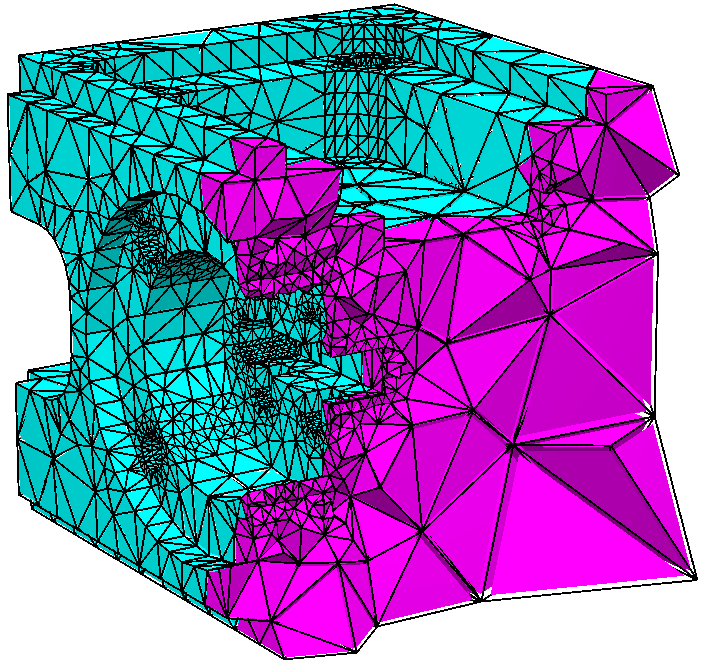

The following three meshes are generated by the mesh refinement option 'q'. From left to right, the options are 'q', 'q1.4', and 'q1.1', respectively. The number after 'q' is a parameter  the radiusedge ratio of tetrahedron, default is 2.0. The smaller the radiusedge ratio is, the better mesh quality will achieve. The sizes of the meshes are wellgraded with respect to the input boundary.

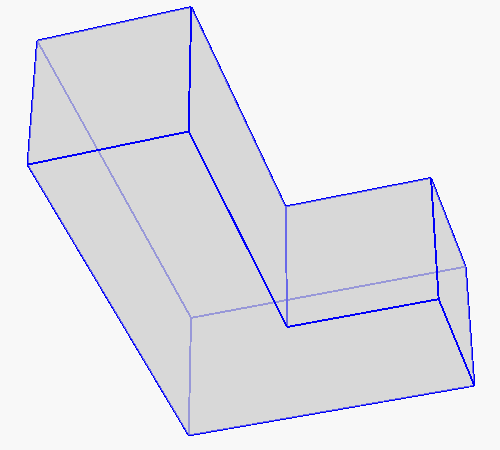

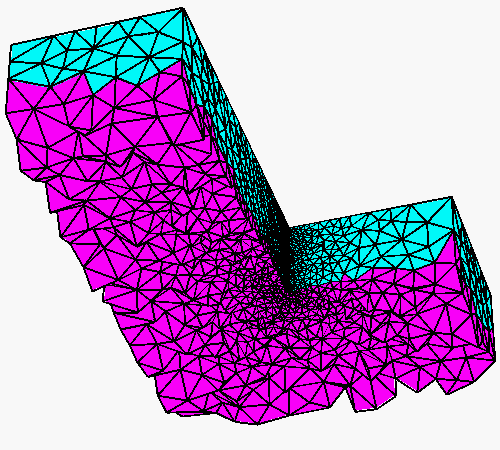

TetGen provides flexible options for mesh refinement. The following examples show two useful options. The input is a Lshaped polyhedron (Left). The middle mesh is generated by option 'q a0.01', the a option imposes a tetrahedron volume constraint (here is 0.01), no result tetrahedron has volume larger than it. The result mesh is uniformly sized. TetGen has various options to obtain nonuniformed sized meshes, the mesh shown in the right is generated by supplying a nodal size map (saved in L.mtr file) and the 'q m' option, the m option tells TetGen to read the size map.
By adding a 'V' option in the command line, TetGen will print the mesh quality statistics after meshing. It looks like the follows. The mesh quality is reported in three quality measures, the "tetrahedron aspect ratio", "triangular face angle", and "tetrahedron dihedral angle". Each quality measure has a histogram.
Mesh quality statistics:
Smallest volume: 0.0005819  Largest volume: 0.010872
Shortest edge: 0.1851  Longest edge: 0.6305
Smallest facangle: 20.89  Largest facangle: 123.9798
Smallest dihedral: 8.2928  Largest dihedral: 164.8949
Aspect ratio histogram:
< 1.5 : 263  6  10 : 66
1.5  2 : 2381  10  15 : 4
2  2.5 : 2115  15  25 : 0
2.5  3 : 789  25  50 : 0
3  4 : 393  50  100 : 0
4  6 : 180  100  : 0
(A tetrahedron's aspect ratio is its longest edge length divided by its
smallest side height)
Face angle histogram:
0  10 degrees: 0  90  100 degrees: 1511
10  20 degrees: 0  100  110 degrees: 429
20  30 degrees: 263  110  120 degrees: 61
30  40 degrees: 3027  120  130 degrees: 6
40  50 degrees: 6438  130  140 degrees: 0
50  60 degrees: 3420  140  150 degrees: 0
60  70 degrees: 2974  150  160 degrees: 0
70  80 degrees: 4813  160  170 degrees: 0
80  90 degrees: 3354  170  180 degrees: 0
Minimum input face angle is 90 (degree).
Dihedral angle histogram:
0  5 degrees: 0  80  110 degrees: 4116
5  10 degrees: 11  110  120 degrees: 782
10  20 degrees: 181  120  130 degrees: 535
20  30 degrees: 490  130  140 degrees: 278
30  40 degrees: 1158  140  150 degrees: 184
40  50 degrees: 2137  150  160 degrees: 104
50  60 degrees: 1850  160  170 degrees: 42
60  70 degrees: 364  170  175 degrees: 0
70  80 degrees: 150  175  180 degrees: 0
Minimum input facet dihedral angle is 90 (degree).
Use boundary markers, region attributes
You can assign a boundary marker (an integer) for each facet
of a PLC. In the final mesh, all boundary faces on that facet will
have the same boundary marker. A common use of the boundary marker is
to determine where boundary conditions should be applied to a finite
element or finite volume mesh. Also You can assign different regions
(separated by the internal facets) of the PLC with different
region attributes (or number). Physically, they associate
different materials to these regions. In the final mesh, All
tetrahedra in the same region will have the same region number.
TetView will automatically show how many
boundary markers defined in a PLC, and how many different regions in a
final mesh as shown in the following pictures.


A bar with two boundary condtions defined (1 on
the leftmost side and 2 on the rightmost side), and two region
attributes defined (10 at the left part and 20 at the right
part). The TetGen input file is
bar2.poly

The quality mesh of the PLC on the left created by
command line switches "pq1.414a0.1aA". TetView shows both
boundary markers and region attributes in different colors.

Adaptive mesh generation is important for many problems. For example, it helps to compute better solution at low CPU cost. The key for adaptive mesh generation is to refine the mesh at places where error is too large and to coare mesh at places where the mesh size is too dense. There are a number of ways to perform adaptive mesh generation in TetGen:
 You can impose tighter quality constraints by using q with a
smaller number, or a followed by a smaller volume than you used
to generate the mesh you are refining.
 You can create a .vol file, which specifies a maximum volume
for each tetrahedra, and use the a switch (without a number
following). Each tetrahedron's volume constraint is applied to
that tetrahedra.
 You can create a .node file, which contains a list of additional
nodes that you want them to be in the mesh. Use i switch to tell
TetGen that you have an additional node list needs to be inserted.
 You can supply a nodal size map, which specifies the desired mesh edge size at each node. Use the m switch to tell TetGen that a userdefined mesh sizing function is available. TetGen will then read the map and refine/coarse the mesh according this information.
Below is an example of adaptive mesh generation for a heat conduction problem. The pictures show a sequence of mesh refined by using the i switch and their corresponding solutions.
Mesh coarsening removes existing mesh vertices therefore reduces the size of the mesh. It is useful in the adaptive mesh generation. TetGen provides two options for coarsening tetrahedral meshes:
 The user can select vertices to ratain or remove in the coarse mesh. TetGen will remove those vertices which are removable. This option is implemented by using the "pointmarker" list (i.e., the last colume in .node file), a '0' means "remove this point", otherwise, "keep it".
 The user can supply a mesh sizing function, let TetGen choose the point to remove, i.e., TetGen will remove the point if the mesh size at the point is too dense.
The new command line option for mesh coarsening is 'R'. It can be used either with 'p' (to coarse a CDT) or 'r' (to coarse a previously generated mesh). You can also use 'R' and 'q' together. TetGen will first perform mesh coarsening then do mesh refinement, hence the process must terminate and the mesh quality is improved.
TetGen is able to remesh a surface triangulation into its constrained
Delaunay triangulation or conforming Delaunay triangulation. This
feature is helpful in the mesh refinement, which it will generally
reduce the number of insertion point to enforce the mesh quality. An
example is shown below.



The original surface mesh of a mechnical part,
which has many skinny triangles
The remeshed surface mesh at the bottom. It is a constrained
Delaunay triangulation of this facet.
The quality mesh of the mechnical part. Now the bottom part has been
remeshed into a conforming Delaunay triangulation of this facet.
Detect selfintersecting facets.
The inputs of TetGen are called piecewise linear
complexes (PLCs). The definition of PLCs requires that they must
be closed under taking intersections, that is two segments only can
intersect at a shared point, two facets are either completely
disjointed or intersecting only at shared segments or vertices,
etc.
However, models created by most of the CAD tools usually do not
satisfy this condition. TetGen can check and find out all the
intersecting facets of the input PLCs and report in triangle
pairs. This is done by using the switch 'd'.
Below is an example shows how it works. The input is a surface mesh
of a cow (cow.smesh) which has 2903
nodes and 5804 triangles. Using the command line:
tetgen d cow.smesh
The detected intersecting facets are printed on the screen like followling:
Detecting intersecting facets.
Facet #5672 intersects facet #5730 at triangles:
(2872, 2874, 2873) and (2834, 2873, 2833)
Facet #5726 intersects facet #5750 at triangles:
(2872, 2873, 2834) and (2868, 2874, 2872)
Facet #5730 intersects facet #5750 at triangles:
(2834, 2873, 2833) and (2868, 2874, 2872)
...
!! Found 211 pairs of faces are intersecting.
Intersection seconds: 3.33
Writing cow.1.node.
Writing cow.1.face.
On completion, a list of intersecting triangles are saved in a .face file (i.e., cow.1.face) which can
be visualized by TetView as shown in the
following pictures. This helps to fix the problem.



The surface mesh of a cow.
The intersecting triangles.
A closed view of some intersecting
triangles.
This feature has another application: detecting two or more polyhedra are
intersecting or not. You can describe these polyhedra in one of the
file formats (.poly, .smesh, .off, .ply, .stl),
then call TetGen with the d switch only.
In stead of reading and writting meshes in TetGen's own file formats,
TetGen also supports other popular polyhedral and mesh file formats,
such as OFF (Object File Format), PLY (Polygon File Format), and so
on. This feature lets a large amount of free 3D models decribed in
these file formats directly available for TetGen.
Currently, TetGen can directly read and write data in the following
file formats:
TetView can visualize objects described in
the above file formats. Both TetGen and TetView use the file
extensions (.off, .ply, .stl, or .mesh) to identify these different
file formats.
