virtual void vtkfig::internals::MyTimerCallback::Execute	(	vtkObject *	vtkNotUsedcaller,
		unsigned long	eventId,
		void *	vtkNotUsedcallData
	)
inlinevirtual
Definition at line 613 of file vtkfigMainThread.cxx.
       {


         // Not clear why it was like that...
         // if (this->mainthread->communication_blocked && mainthread->cmd != Communicator::Command::MainThreadShow) return;

         if (this->mainthread->communication_blocked) return;

         if (
           vtkCommand::TimerEvent == eventId  // Check if timer event
           && this->mainthread->cmd!=Communicator::Command::Empty  // Check if command has been given
           )
         {


           // Lock mutex
           if (this->mainthread->running_multithreaded)
             std::unique_lock<std::mutex> lock(this->mainthread->mutex);

           // Command dispatch
           switch(mainthread->cmd)
           {

            // Add frame to main thread
           case Communicator::Command::MainThreadAddFrame:
           {
             mainthread->RTAddFrame(mainthread, mainthread->iframe);
           }
           break;

           // Remove frame from mainthread
           case Communicator::Command::MainThreadRemoveFrame:
           {

             auto frame=mainthread->framemap[mainthread->iframe];
             for (auto & subframe: frame->subframes)
               subframe.renderer->RemoveAllViewProps();

             frame->window->Finalize();

             mainthread->framemap.erase(frame->number_in_frame_list);

           }
           break;



           case Communicator::Command::MainThreadShow:
           {
             // Add actors from figures to renderer
             for (auto & framepair: mainthread->framemap)
               framepair.second->RTAddFigures();



             for (auto & framepair: mainthread->framemap)
             {
               auto frame=framepair.second;

               if(frame->mainthread->communication_blocked)
                 frame->title_actor->SetText(6,"-|-");
               else
                 frame->title_actor->SetText(6,"---");

               frame->title_actor->Modified();

               // for (auto & figure: framepair.second->figures)
               //   figure->RTUpdateActors();
               frame->window->Render();
               if (frame->videowriter && ! frame->mainthread->communication_blocked)
               {
                 this->Interactor->Render();
                 auto imgfilter = vtkSmartPointer<vtkWindowToImageFilter>::New();
                 imgfilter->SetInput(frame->window);
                 imgfilter->Update();
                 frame->videowriter->SetInputConnection(imgfilter->GetOutputPort());
                 this->Interactor->Render();
                 frame->videowriter->Write();
               }
             }
             //this->Interactor->Render();
           }
           break;

           // Write picture to file
           case Communicator::Command::FrameDump:
           {
             auto frame=mainthread->framemap[mainthread->iframe];
             auto imgfilter = vtkSmartPointer<vtkWindowToImageFilter>::New();
             auto pngwriter = vtkSmartPointer<vtkPNGWriter>::New();

             pngwriter->SetInputConnection(imgfilter->GetOutputPort());
             pngwriter->SetFileName(frame->parameter.filename.c_str());

             imgfilter->SetInput(frame->window);
             imgfilter->Update();

             this->Interactor->Render();
             pngwriter->Write();
           }
           break;

           // Start video
           case Communicator::Command::StartVideo:
           {
             auto frame=mainthread->framemap[mainthread->iframe];

             frame->videowriter =  vtkSmartPointer<vtkOggTheoraWriter>::New();
             frame->videowriter->SetFileName(frame->parameter.filename.c_str());
             frame->videowriter->Start();
           }
           break;

           case Communicator::Command::StopVideo:
           {
             auto frame=mainthread->framemap[mainthread->iframe];
             frame->videowriter->End();
             frame->videowriter=0;
           }
           break;

           case Communicator::Command::FrameRemoveFigure:
           {
             auto frame=mainthread->framemap[mainthread->iframe];
             frame->RTRemoveFigure(frame->parameter.current_figure);
           }
           break;


           case Communicator::Command::FrameLayout:
           {
             auto frame=mainthread->framemap[mainthread->iframe];
             frame->RTSetLayout(frame->parameter.nvpx,frame->parameter.nvpy);
             frame->RTResetRenderers(false);
           }

           // Set frame size
           case Communicator::Command::FrameSize:
           {
             auto frame=mainthread->framemap[mainthread->iframe];
             frame->window->SetSize(frame->parameter.winsize_x, frame->parameter.winsize_y);
           }
           break;

           // Set active subframe
           case Communicator::Command::FrameActiveSubFrame:
           {
             auto frame=mainthread->framemap[mainthread->iframe];
             frame->RTSetActiveSubFrame(frame->parameter.active_subframe,false);
           }
           break;

           // Set active subframe
           case Communicator::Command::FrameActiveSubFrameCameraViewAngle:
           {
             auto frame=mainthread->framemap[mainthread->iframe];
             auto& subframe=frame->subframes[frame->parameter.active_subframe];
             frame->RTSetActiveSubFrameCameraViewAngle(subframe,frame->parameter.camera_view_angle);
           }
           break;

           // Set active subframe
           case Communicator::Command::FrameActiveSubFrameCameraPosition:
           {
             auto frame=mainthread->framemap[mainthread->iframe];
             auto& subframe=frame->subframes[frame->parameter.active_subframe];
             frame->RTSetActiveSubFrameCameraPosition(subframe,frame->parameter.camera_position);
           }
           break;

           // Set active subframe
           case Communicator::Command::FrameActiveSubFrameCameraFocalPoint:
           {
             auto frame=mainthread->framemap[mainthread->iframe];
             auto& subframe=frame->subframes[frame->parameter.active_subframe];
             frame->RTSetActiveSubFrameCameraFocalPoint(subframe,frame->parameter.camera_focal_point);
           }
           break;

           case Communicator::Command::FrameSingleView:
           {
             auto frame=mainthread->framemap[mainthread->iframe];
             frame->RTSetSingleView(frame->parameter.single_subframe_view);
           }
           break;



           // Set frame position
           case Communicator::Command::FramePosition:
           {
             auto frame=mainthread->framemap[mainthread->iframe];
             frame->window->SetPosition(frame->parameter.winposition_x, frame->parameter.winposition_y);
           }
           break;

           // Set frame title
           case Communicator::Command::FrameTitle:
           {
             auto frame=mainthread->framemap[mainthread->iframe];
             frame->RTInit();
             frame->title_actor->SetText(7,frame->parameter.frametitle.c_str());
             frame->title_actor->Modified();

           }
           break;

           // Set window title
           case Communicator::Command::WindowTitle:
           {
             auto frame=mainthread->framemap[mainthread->iframe];
             frame->window->SetWindowName(frame->parameter.wintitle.c_str());
           }
           break;

           // Link camera to other
           case Communicator::Command::FrameLinkCamera:
           {
             auto frame=mainthread->framemap[mainthread->iframe];
             auto renderer=mainthread->framemap[mainthread->iframe]->subframes[frame->parameter.camlinkthisframepos].renderer;
             auto lrenderer=mainthread->framemap[frame->parameter.camlinkframenum]->subframes[frame->parameter.camlinkframepos].renderer;
             renderer->SetActiveCamera(lrenderer->GetActiveCamera());
           }
           break;

           // Terminate
           case Communicator::Command::MainThreadTerminate:
           {

             for (auto & framepair: mainthread->framemap)
               framepair.second->window->Finalize();

             mainthread->framemap.clear();

             this->Interactor->TerminateApp();

             mainthread->running_multithreaded=false;

             mainthread->condition_variable.notify_all();

             return;
           }
           break;

           default:;
           }

           // Clear command
           mainthread->cmd=Communicator::Command::Empty;

           // Notify that command was exeuted
           if (mainthread->running_multithreaded)
             //
             mainthread->condition_variable.notify_all();
           else
             // dirty trick to unblock event loop.
             // hopefully works if multitreading does not
             mainthread->interactor->TerminateApp();

         }
       }

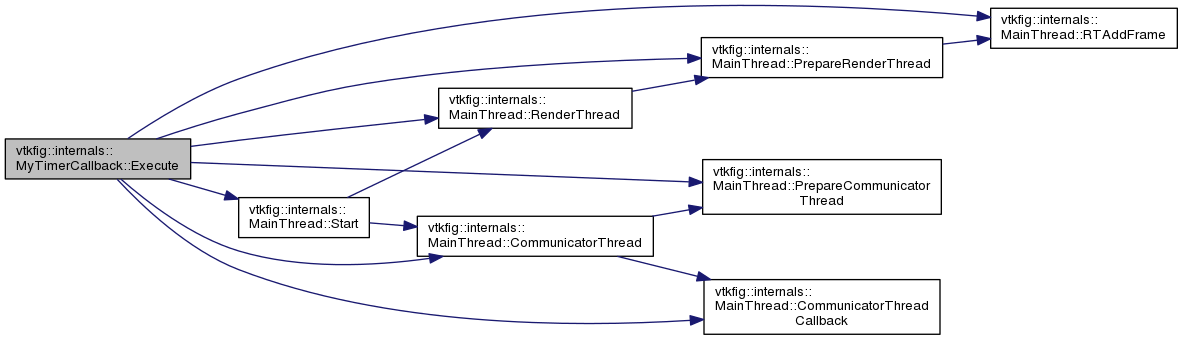

Here is the call graph for this function:
