qmr.h File Reference
+ Include dependency graph for qmr.h:

Go to the source code of this file.

Functions

template<class Matrix , class Vector , class Preconditioner1 , class Preconditioner2 , class Real >
int QMR (const Matrix &A, Vector &x, const Vector &b, const Preconditioner1 &M1, const Preconditioner2 &M2, int &max_iter, Real &tol)


Function Documentation

template<class Matrix , class Vector , class Preconditioner1 , class Preconditioner2 , class Real >
int QMR ( const Matrix &  A,
Vector &  x,
const Vector &  b,
const Preconditioner1 &  M1,
const Preconditioner2 &  M2,
int &  max_iter,
Real &  tol
)

Definition at line 37 of file qmr.h.

39 {
40  Real resid;
41
42  Vector rho(1), rho_1(1), xi(1), gamma(1), gamma_1(1), theta(1), theta_1(1);
43  Vector eta(1), delta(1), ep(1), beta(1);
44
45  Vector r, v_tld, y, w_tld, z;
46  Vector v, w, y_tld, z_tld;
47  Vector p, q, p_tld, d, s;
48
49  Real normb = norm(b);
50
51  r = b - A * x;
52
53  if (normb == 0.0)
54  normb = 1;
55
56  if ((resid = norm(r) / normb) <= tol) {
57  tol = resid;
58  max_iter = 0;
59  return 0;
60  }
61
62  v_tld = r;
63  y = M1.solve(v_tld);
64  rho(0) = norm(y);
65
66  w_tld = r;
67  z = M2.trans_solve(w_tld);
68  xi(0) = norm(z);
69
70  gamma(0) = 1.0;
71  eta(0) = -1.0;
72  theta(0) = 0.0;
73
74  for (int i = 1; i <= max_iter; i++) {
75
76  if (rho(0) == 0.0)
77  return 2; // return on breakdown
78
79  if (xi(0) == 0.0)
80  return 7; // return on breakdown
81
82  v = (1. / rho(0)) * v_tld;
83  y = (1. / rho(0)) * y;
84
85  w = (1. / xi(0)) * w_tld;
86  z = (1. / xi(0)) * z;
87
88  delta(0) = dot(z, y);
89  if (delta(0) == 0.0)
90  return 5; // return on breakdown
91
92  y_tld = M2.solve(y); // apply preconditioners
93  z_tld = M1.trans_solve(z);
94
95  if (i > 1) {
96  p = y_tld - (xi(0) * delta(0) / ep(0)) * p;
97  q = z_tld - (rho(0) * delta(0) / ep(0)) * q;
98  } else {
99  p = y_tld;
100  q = z_tld;
101  }
102
103  p_tld = A * p;
104  ep(0) = dot(q, p_tld);
105  if (ep(0) == 0.0)
106  return 6; // return on breakdown
107
108  beta(0) = ep(0) / delta(0);
109  if (beta(0) == 0.0)
110  return 3; // return on breakdown
111
112  v_tld = p_tld - beta(0) * v;
113  y = M1.solve(v_tld);
114
115  rho_1(0) = rho(0);
116  rho(0) = norm(y);
117  w_tld = A.trans_mult(q) - beta(0) * w;
118  z = M2.trans_solve(w_tld);
119
120  xi(0) = norm(z);
121
122  gamma_1(0) = gamma(0);
123  theta_1(0) = theta(0);
124
125  theta(0) = rho(0) / (gamma_1(0) * beta(0));
126  gamma(0) = 1.0 / sqrt(1.0 + theta(0) * theta(0));
127
128  if (gamma(0) == 0.0)
129  return 4; // return on breakdown
130
131  eta(0) = -eta(0) * rho_1(0) * gamma(0) * gamma(0) /
132  (beta(0) * gamma_1(0) * gamma_1(0));
133
134  if (i > 1) {
135  d = eta(0) * p + (theta_1(0) * theta_1(0) * gamma(0) * gamma(0)) * d;
136  s = eta(0) * p_tld + (theta_1(0) * theta_1(0) * gamma(0) * gamma(0)) * s;
137  } else {
138  d = eta(0) * p;
139  s = eta(0) * p_tld;
140  }
141
142  x += d; // update approximation vector
143  r -= s; // compute residual
144
145  if ((resid = norm(r) / normb) <= tol) {
146  tol = resid;
147  max_iter = i;
148  return 0;
149  }
150  }
151
152  tol = resid;
153  return 1; // no convergence
154 }
A::value_type dot(const A &a, const B &b)
Dot product of array or expression.
Definition: util.ixx:91
A::value_type norm(const A &a)
Euklidean norm of array or expression.
Definition: util.hxx:54

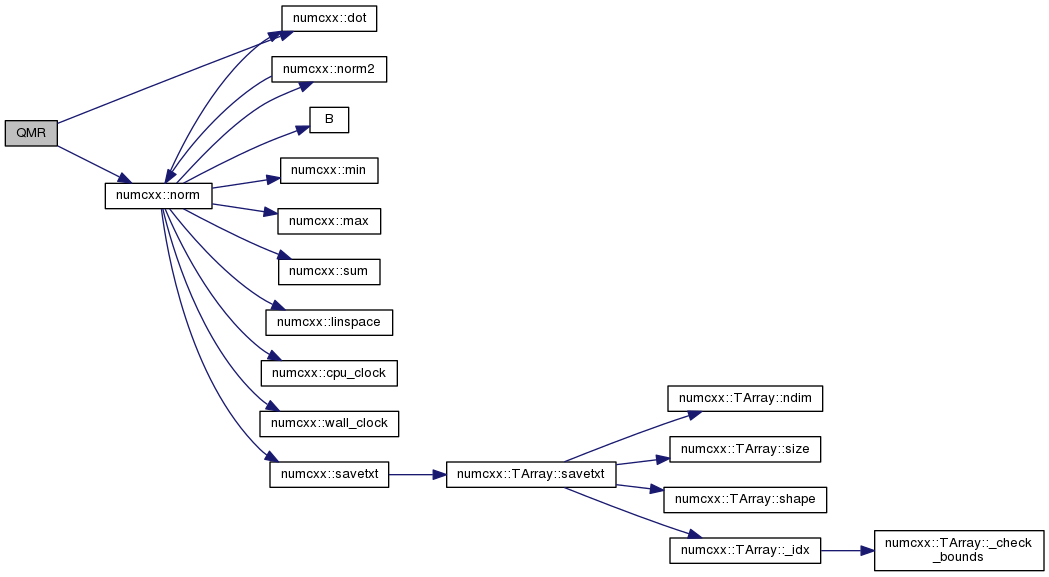

+ Here is the call graph for this function:
