netlib Namespace Reference

Description

Iterative template routines.

Original version of template routines from netlib as of 2016-11-08 (file dates: 1998-07-21), slightly modified for numcxx (see corresponding comments).

Functions
template<class Matrix , class Vector , class Preconditioner , class Real >
int	BiCGSTAB (const Matrix &A, Vector &x, const Vector &b, const Preconditioner &M, int &max_iter, Real &tol)
	Iterative template routine – BiCGSTAB. More...
template<class Matrix , class Vector , class Preconditioner , class Real >
int	CG (const Matrix &A, Vector &x, const Vector &b, const Preconditioner &M, int &max_iter, Real &tol)
	Iterative template routine – CG. More...

Function Documentation

template<class Matrix , class Vector , class Preconditioner , class Real >

int netlib::BiCGSTAB	(	const Matrix &	A,
		Vector &	x,
		const Vector &	b,
		const Preconditioner &	M,
		int &	max_iter,
		Real &	tol
	)

Iterative template routine – BiCGSTAB.

Original version from netlib as of 2016-11-08 (file date: 1998-07-21), slightly modified for numcxx (see corresponding comment).

BiCGSTAB solves the unsymmetric linear system Ax = b using the Preconditioned BiConjugate Gradient Stabilized method

BiCGSTAB follows the algorithm described on p. 27 of the (SIAM Templates book)[http://www.netlib.org/templates/templates.pdf].

The return value indicates convergence within max_iter (input) iterations (0), or no convergence within max_iter iterations (1).

Upon successful return, output arguments have the following values:

Parameters

x	– approximate solution to Ax = b
max_iter	– the number of iterations performed before the tolerance was reached
tol	– the residual after the final iteration

Definition at line 29 of file bicgstab.hxx.

    {
        Real resid;
        Vector rho_1(1), rho_2(1), alpha(1), beta(1), omega(1);
        Vector p, phat, s, shat, t, v;

        Real normb = norm(b);
        Vector r = b - A * x;
        Vector rtilde = r;

        if (normb == 0.0)
            normb = 1;

        if ((resid = norm(r) / normb) <= tol) {
            tol = resid;
            max_iter = 0;
            return 0;
        }

        for (int i = 1; i <= max_iter; i++) {
            rho_1(0) = dot(rtilde, r);
            if (rho_1(0) == 0) {
                tol = norm(r) / normb;
                return 2;
            }
            if (i == 1)
                p = r;
            else {
                beta(0) = (rho_1(0)/rho_2(0)) * (alpha(0)/omega(0));
                p = r + beta(0) * (p - omega(0) * v);
            }
            // numcxx: was
            // phat = M.solve(p);
            M.solve(phat,p);
            v = A * phat;
            alpha(0) = rho_1(0) / dot(rtilde, v);
            s = r - alpha(0) * v;
            if ((resid = norm(s)/normb) < tol) {
                x += alpha(0) * phat;
                tol = resid;
                return 0;
            }
            // numcxx: was
            //shat = M.solve(s);
            M.solve(shat,s);
            t = A * shat;
            omega = dot(t,s) / dot(t,t);
            x += alpha(0) * phat + omega(0) * shat;
            r = s - omega(0) * t;

            rho_2(0) = rho_1(0);
            if ((resid = norm(r) / normb) < tol) {
                tol = resid;
                max_iter = i;
                return 0;
            }
            if (omega(0) == 0) {
                tol = norm(r) / normb;
                return 3;
            }
        }

        tol = resid;
        return 1;
    }

Here is the call graph for this function:

template<class Matrix , class Vector , class Preconditioner , class Real >

int netlib::CG	(	const Matrix &	A,
		Vector &	x,
		const Vector &	b,
		const Preconditioner &	M,
		int &	max_iter,
		Real &	tol
	)

Iterative template routine – CG.

Original version from netlib as of 2016-11-08 (file date: 1998-07-21), slightly modified for numcxx (see corresponding comment).

CG solves the symmetric positive definite linear system Ax=b using the Conjugate Gradient method.

CG follows the algorithm described on p. 15 in the (SIAM Templates book)[http://www.netlib.org/templates/templates.pdf].

The return value indicates convergence within max_iter (input) iterations (0), or no convergence within max_iter iterations (1).

Upon successful return, output arguments have the following values:

Parameters

x	– approximate solution to Ax = b
max_iter	– the number of iterations performed before the tolerance was reached
tol	– the residual after the final iteration

Definition at line 28 of file cg.hxx.

    {
        Real resid;
        Vector p, z, q;
        Vector alpha(1), beta(1), rho(1), rho_1(1);

        Real normb = norm(b);
        Vector r = b - A*x;

        if (normb == 0.0)
            normb = 1;

        if ((resid = norm(r) / normb) <= tol) {
            tol = resid;
            max_iter = 0;
            return 0;
        }

        for (int i = 1; i <= max_iter; i++) {
            // numcxx: was
            // z=M.solve(r)
            M.solve(z, r);
            rho(0) = dot(r, z);

            if (i == 1)
                p = z;
            else {
                beta(0) = rho(0) / rho_1(0);
                p = z + beta(0) * p;
            }

            q = A*p;
            alpha(0) = rho(0) / dot(p, q);

            x += alpha(0) * p;
            r -= alpha(0) * q;

            if ((resid = norm(r) / normb) <= tol) {
                tol = resid;
                max_iter = i;
                return 0;
            }

            rho_1(0) = rho(0);
        }

        tol = resid;
        return 1;
    }

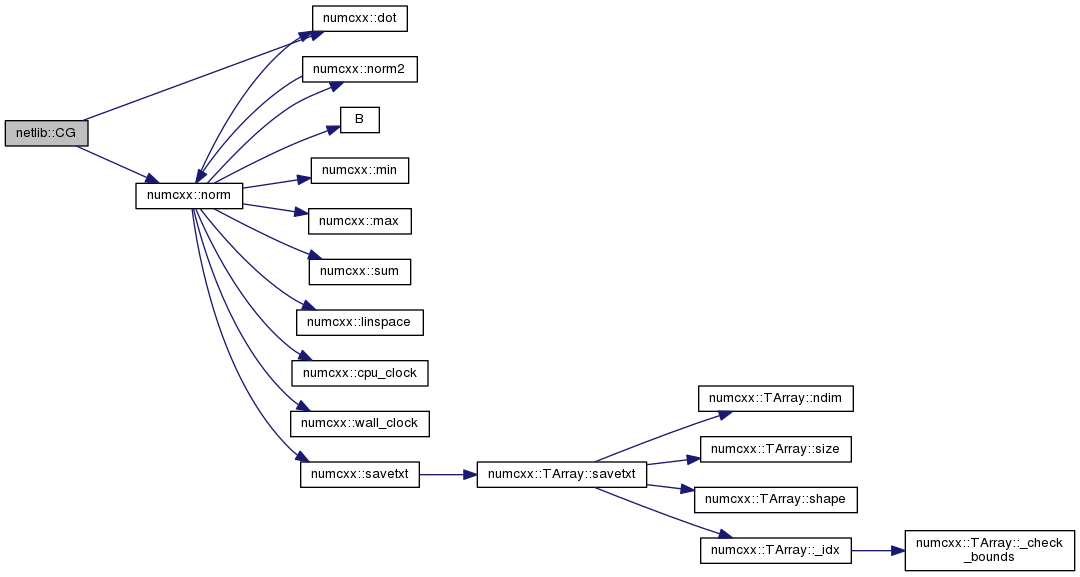

Here is the call graph for this function:
