fvm2d Namespace Reference

Functions

void assemble_heat_problem (const numcxx::SimpleGrid &Grid, const numcxx::DArray1 &BCfac, const numcxx::DArray1 &BCval, const numcxx::DArray1 &Source, const numcxx::DArray1 &Kappa, numcxx::DSparseMatrix &SGlobal, numcxx::DArray1 &Rhs)

void assemble_and_apply_nonlinear_heat (const numcxx::SimpleGrid &grid, const numcxx::DArray1 &bcfac, const numcxx::DArray1 &bcval, const numcxx::DArray1 &source, std::function< void(const double, double &, double &)> fkappa, numcxx::DSparseMatrix &SGlobal, numcxx::DArray1 &Sol, numcxx::DArray1 &Rhs)

void initialize_bc (numcxx::SimpleGrid &grid, numcxx::DArray1 &g, numcxx::DArray1 &Sol)

double l2norm (const numcxx::SimpleGrid &grid, const numcxx::DArray1 &u)

double h1norm (const numcxx::SimpleGrid &grid, const numcxx::DArray1 &u)

void compute_cell_volume (const int icell, const numcxx::DArray2 &points, const numcxx::IArray2 &cells, double &vol)

void compute_local_formfactors (const int icell, const numcxx::DArray2 &points, const numcxx::IArray2 &cells, numcxx::DArray1 &epar, numcxx::DArray1 &npar, double &vol)

void assemble_bc (const numcxx::SimpleGrid &grid, const numcxx::DArray1 &bcfac, const numcxx::DArray1 &bcval, numcxx::DSparseMatrix &SGlobal, numcxx::DArray1 &Rhs)

void assemble_apply_bc (const numcxx::SimpleGrid &grid, const numcxx::DArray1 &bcfac, const numcxx::DArray1 &bcval, numcxx::DSparseMatrix &SGlobal, numcxx::DArray1 &Sol, numcxx::DArray1 &Rhs)


Variables

const double Dirichlet =1.0e30
 BC value marking Dirichlet boundary condition. More...


Function Documentation

void fvm2d::assemble_heat_problem ( const numcxx::SimpleGrid Grid,
const numcxx::DArray1 BCfac,
const numcxx::DArray1 BCval,
const numcxx::DArray1 Source,
const numcxx::DArray1 Kappa,
numcxx::DSparseMatrix SGlobal,
numcxx::DArray1 Rhs
)
Examples:
41-stationary-heat-fv.cxx, and 43-convtest-fvm-sin.cxx.

Definition at line 158 of file fvm2d.cxx.

166  {
167
168  auto ndim=grid.spacedim(); // space dimension
169  assert(ndim==2);
170  auto points=grid.get_points(); // Array of global nodes
171  auto cells=grid.get_cells(); // Local-global dof map
172
173  int npoints=grid.npoints();
174  int ncells=grid.ncells();
175  double vol=0.0;
176
177  // this needs to coorespond to the edge indices
178  numcxx::IArray2 edgenodes{{1,2},{0,2},{0,1}};
179
180  const int nnodes_per_cell=3;
181  const int nedges_per_cell=3;
182  numcxx::DArray1 epar(nnodes_per_cell);
183  numcxx::DArray1 npar(nedges_per_cell);
184  Rhs=0.0;
185  SGlobal(0,0)=0;
186  SGlobal.clear();
187
188  // Loop over all elements (cells) of the triangulation
189  for (int icell=0; icell<ncells; icell++)
190  {
191
192  compute_local_formfactors(icell, points,cells,epar,npar, vol);
193  for (int inode=0;inode<nnodes_per_cell;inode++)
194  {
195  int k=cells(icell,inode);
196  Rhs(k)=source(k)*npar(inode);
197  }
198
199  for (int iedge=0;iedge<nedges_per_cell;iedge++)
200  {
201  int k0=cells(icell,edgenodes(iedge,0));
202  int k1=cells(icell,edgenodes(iedge,1));
203
204  // Assemble fluxes with edge averaged diffusion
205  // coefficients into global matrix
206  SGlobal(k0,k0)+=epar(iedge)*0.5*(kappa(k0)+kappa(k1));
207  SGlobal(k0,k1)-=epar(iedge)*0.5*(kappa(k0)+kappa(k1));
208  SGlobal(k1,k0)-=epar(iedge)*0.5*(kappa(k0)+kappa(k1));
209  SGlobal(k1,k1)+=epar(iedge)*0.5*(kappa(k0)+kappa(k1));
210  }
211  }
212  assemble_bc(grid, bcfac, bcval, SGlobal, Rhs);
213  SGlobal.flush();
214  }
void compute_local_formfactors(const int icell, const numcxx::DArray2 &points, const numcxx::IArray2 &cells, numcxx::DArray1 &epar, numcxx::DArray1 &npar, double &vol)
Definition: fvm2d.cxx:33
void flush()
Re-create the internal data structure in order to accomodated all newly created elements.
One dimensional array class.
Definition: tarray1.hxx:31
Two-dimensional array class.
Definition: tarray2.hxx:31
void assemble_bc(const numcxx::SimpleGrid &grid, const numcxx::DArray1 &bcfac, const numcxx::DArray1 &bcval, numcxx::DSparseMatrix &SGlobal, numcxx::DArray1 &Rhs)
Definition: fvm2d.cxx:83

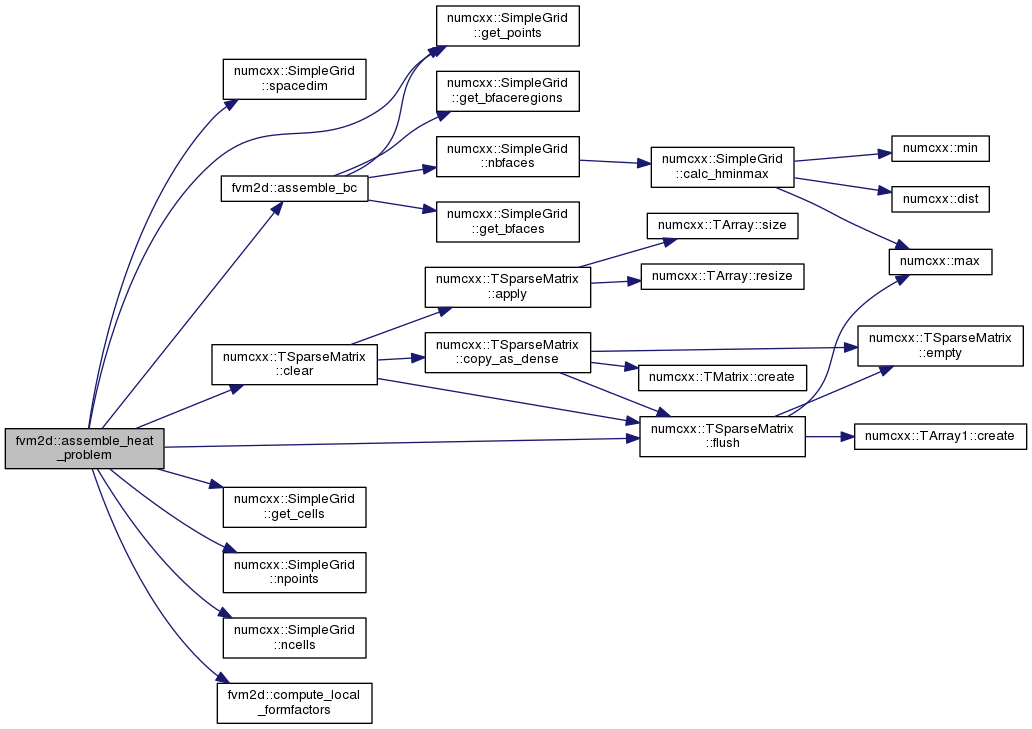

+ Here is the call graph for this function:

void fvm2d::assemble_and_apply_nonlinear_heat ( const numcxx::SimpleGrid grid,
const numcxx::DArray1 bcfac,
const numcxx::DArray1 bcval,
const numcxx::DArray1 source,
std::function< void(const double, double &, double &)>  fkappa,
numcxx::DSparseMatrix SGlobal,
numcxx::DArray1 Sol,
numcxx::DArray1 Rhs
)
Examples:
46-nonlin-fvm.cxx.

Definition at line 219 of file fvm2d.cxx.

228  {
229
230  auto ndim=grid.spacedim(); // space dimension
231  assert(ndim==2);
232  auto points=grid.get_points(); // Array of global nodes
233  auto cells=grid.get_cells(); // Local-global dof map
234
235  int npoints=grid.npoints();
236  int ncells=grid.ncells();
237  double vol=0.0;
238
239  // this needs to coorespond to the edge indices
240  numcxx::IArray2 edgenodes{{1,2},{0,2},{0,1}};
241
242  const int nnodes_per_cell=3;
243  const int nedges_per_cell=3;
244  numcxx::DArray1 epar(nnodes_per_cell);
245  numcxx::DArray1 npar(nedges_per_cell);
246
247  numcxx::DArray1 kappa(nnodes_per_cell);
248  numcxx::DArray1 dkappa(nnodes_per_cell);
249
250
251  Rhs=0.0;
252  SGlobal(0,0)=0;
253  SGlobal.clear();
254
255
256  // Loop over all elements (cells) of the triangulation
257  for (int icell=0; icell<ncells; icell++)
258  {
259
260  compute_local_formfactors(icell, points,cells,epar,npar, vol);
261  for (int inode=0;inode<nnodes_per_cell;inode++)
262  {
263  int k=cells(icell,inode);
264  Rhs(k)-=source(k)*npar(inode);
265  fkappa(Sol(k),kappa(inode),dkappa(inode));
266  }
267
268  for (int iedge=0;iedge<nedges_per_cell;iedge++)
269  {
270  int i0=edgenodes(iedge,0);
271  int i1=edgenodes(iedge,1);
272  int k0=cells(icell,i0);
273  int k1=cells(icell,i1);
274
275
276  double flux=epar(iedge)*0.5*(kappa(i0)+kappa(i1))*(Sol(k0)-Sol(k1));
277  Rhs(k0)+=flux;
278  Rhs(k1)-=flux;
279
280  SGlobal(k0,k0)+= epar(iedge)*( 0.5*(kappa(i0)+kappa(i1))+0.5*dkappa(i0)*(Sol(k0)-Sol(k1)));
281  SGlobal(k0,k1)+= epar(iedge)*(-0.5*(kappa(i0)+kappa(i1))+0.5*dkappa(i1)*(Sol(k0)-Sol(k1)));
282  SGlobal(k1,k0)+= epar(iedge)*(-0.5*(kappa(i0)+kappa(i1))-0.5*dkappa(i0)*(Sol(k0)-Sol(k1)));
283  SGlobal(k1,k1)+= epar(iedge)*( 0.5*(kappa(i0)+kappa(i1))-0.5*dkappa(i1)*(Sol(k0)-Sol(k1)));
284  }
285  }
286  assemble_apply_bc(grid, bcfac, bcval, SGlobal, Sol,Rhs);
287  SGlobal.flush();
288  }
const int ncells() const
Return number of cells.
Definition: simplegrid.hxx:63
void compute_local_formfactors(const int icell, const numcxx::DArray2 &points, const numcxx::IArray2 &cells, numcxx::DArray1 &epar, numcxx::DArray1 &npar, double &vol)
Definition: fvm2d.cxx:33
void flush()
Re-create the internal data structure in order to accomodated all newly created elements.
const TArray2< double > & get_points() const
Get array of point coordinates.
Definition: simplegrid.hxx:42
void assemble_apply_bc(const numcxx::SimpleGrid &grid, const numcxx::DArray1 &bcfac, const numcxx::DArray1 &bcval, numcxx::DSparseMatrix &SGlobal, numcxx::DArray1 &Sol, numcxx::DArray1 &Rhs)
Definition: fvm2d.cxx:120
One dimensional array class.
Definition: tarray1.hxx:31
Two-dimensional array class.
Definition: tarray2.hxx:31
const int npoints() const
Return number of points.
Definition: simplegrid.hxx:66
const TArray2< int > & get_cells() const
Get array of point indices describing cells.
Definition: simplegrid.hxx:45
const int spacedim() const
Return dimension of space.
Definition: simplegrid.hxx:57

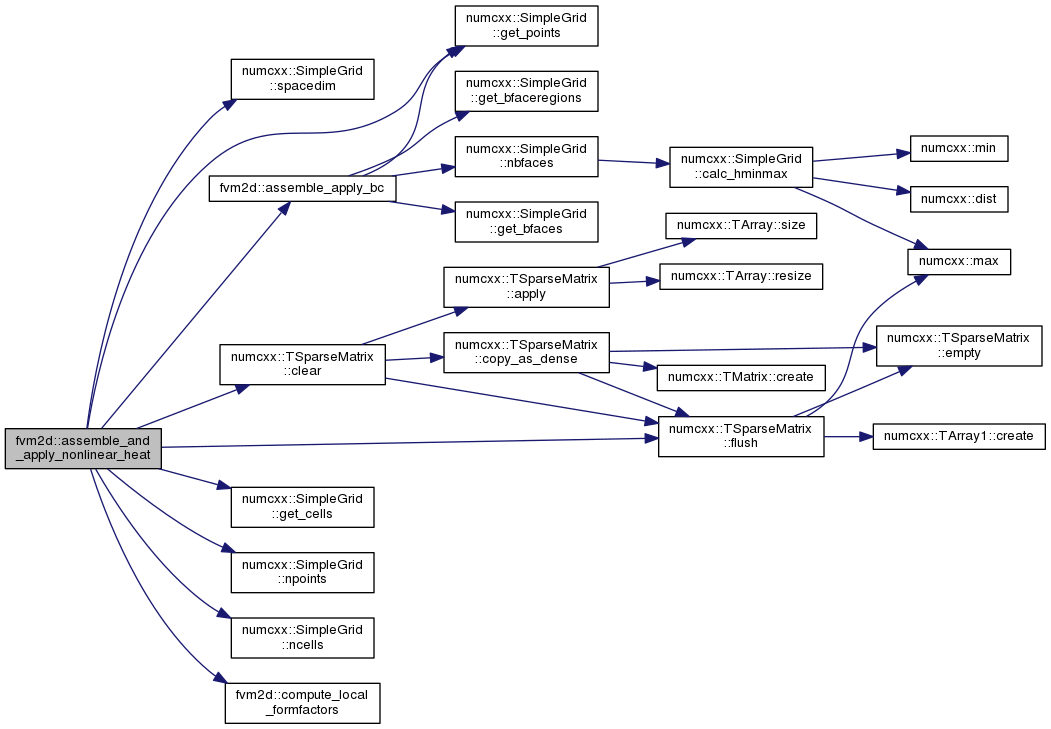

+ Here is the call graph for this function:

void fvm2d::initialize_bc ( numcxx::SimpleGrid grid,
numcxx::DArray1 g,
numcxx::DArray1 Sol
)
Examples:
46-nonlin-fvm.cxx.

Definition at line 291 of file fvm2d.cxx.

296  {
297
298  int nbfaces=grid.nbfaces();
299  auto bfaces=grid.get_bfaces();
300  auto bfaceregions=grid.get_bfaceregions();
301
302  for (int ibface=0; ibface<nbfaces; ibface++)
303  {
304  int i;
305  int ireg=bfaceregions(ibface);
306
307  i=bfaces(ibface,0);
308  Sol(i)=g(ireg);
309
310  i=bfaces(ibface,1);
311  Sol(i)=g(ireg);
312  }
313
314  }
const int nbfaces() const
Return number of boundary faces.
Definition: simplegrid.hxx:69
const TArray2< int > & get_bfaces() const
Get array of point indices describing boundary faces.
Definition: simplegrid.hxx:51
const TArray1< int > & get_bfaceregions() const
Get array of boundary markers.
Definition: simplegrid.hxx:54

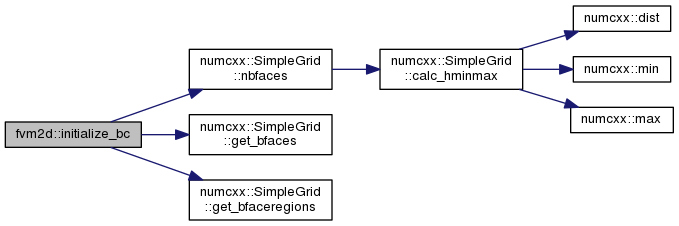

+ Here is the call graph for this function:

double fvm2d::l2norm ( const numcxx::SimpleGrid grid,
const numcxx::DArray1 u
)
Examples:
43-convtest-fvm-sin.cxx.

Definition at line 318 of file fvm2d.cxx.

320  {
321  auto ndim=grid.spacedim();
322  auto points=grid.get_points(); // Array of global nodes
323  auto cells=grid.get_cells(); // Local-global dof map
324  int npoints=grid.npoints();
325  int ncells=grid.ncells();
326
327  double vol=0.0;
328
329
330  numcxx::DArray1 epar(ndim+1);
331  numcxx::DArray1 npar(ndim+1);
332
333
334  double norm=0.0;
335  for (int icell=0; icell<ncells; icell++)
336  {
337  double vol;
338  compute_local_formfactors(icell, points,cells,epar,npar, vol);
339
340  for (int i=0;i<=ndim;i++)
341  norm+=u(cells(icell,i))*u(cells(icell,i))*npar(i);
342  }
343  return sqrt(norm);
344  }
const int ncells() const
Return number of cells.
Definition: simplegrid.hxx:63
void compute_local_formfactors(const int icell, const numcxx::DArray2 &points, const numcxx::IArray2 &cells, numcxx::DArray1 &epar, numcxx::DArray1 &npar, double &vol)
Definition: fvm2d.cxx:33
const TArray2< double > & get_points() const
Get array of point coordinates.
Definition: simplegrid.hxx:42
One dimensional array class.
Definition: tarray1.hxx:31
const int npoints() const
Return number of points.
Definition: simplegrid.hxx:66
A::value_type norm(const A &a)
Euklidean norm of array or expression.
Definition: util.hxx:54
const TArray2< int > & get_cells() const
Get array of point indices describing cells.
Definition: simplegrid.hxx:45
const int spacedim() const
Return dimension of space.
Definition: simplegrid.hxx:57

+ Here is the call graph for this function:

double fvm2d::h1norm ( const numcxx::SimpleGrid grid,
const numcxx::DArray1 u
)
Examples:
43-convtest-fvm-sin.cxx.

Definition at line 346 of file fvm2d.cxx.

348  {
349  auto ndim=grid.spacedim();
350  auto points=grid.get_points(); // Array of global nodes
351  auto cells=grid.get_cells(); // Local-global dof map
352  int npoints=grid.npoints();
353  int ncells=grid.ncells();
354
355  double vol=0.0;
356
357
358  numcxx::DArray1 epar(ndim+1);
359  numcxx::DArray1 npar(ndim+1);
360
361
362  double norm=0.0;
363  for (int icell=0; icell<ncells; icell++)
364  {
365  double vol;
366  compute_local_formfactors(icell, points,cells,epar,npar, vol);
367
368  double d01=u(cells(icell,0))-u(cells(icell,1));
369  double d02=u(cells(icell,0))-u(cells(icell,2));
370  double d12=u(cells(icell,1))-u(cells(icell,2));
371
372
373  norm+=epar(0)*d12*d12+epar(1)*d02*d02+epar(2)*d01*d01;
374  }
375
376
377  return sqrt(norm);
378  }
const int ncells() const
Return number of cells.
Definition: simplegrid.hxx:63
void compute_local_formfactors(const int icell, const numcxx::DArray2 &points, const numcxx::IArray2 &cells, numcxx::DArray1 &epar, numcxx::DArray1 &npar, double &vol)
Definition: fvm2d.cxx:33
const TArray2< double > & get_points() const
Get array of point coordinates.
Definition: simplegrid.hxx:42
One dimensional array class.
Definition: tarray1.hxx:31
const int npoints() const
Return number of points.
Definition: simplegrid.hxx:66
A::value_type norm(const A &a)
Euklidean norm of array or expression.
Definition: util.hxx:54
const TArray2< int > & get_cells() const
Get array of point indices describing cells.
Definition: simplegrid.hxx:45
const int spacedim() const
Return dimension of space.
Definition: simplegrid.hxx:57

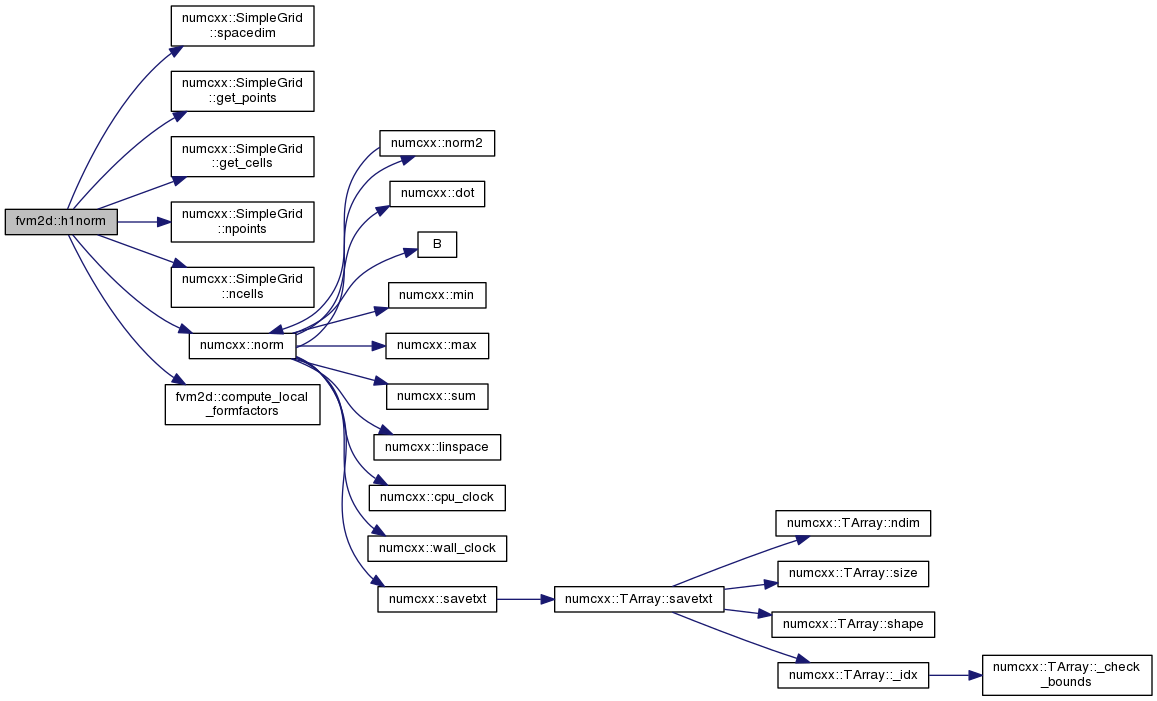

+ Here is the call graph for this function:

void fvm2d::compute_cell_volume ( const int  icell,
const numcxx::DArray2 points,
const numcxx::IArray2 cells,
double &  vol
)
inline

Definition at line 11 of file fvm2d.cxx.

16  {
17  int i0=cells(icell,0);
18  int i1=cells(icell,1);
19  int i2=cells(icell,2);
20
21  // Fill matrix V
22  double V00= points(i1,0)- points(i0,0);
23  double V01= points(i2,0)- points(i0,0);
24
25  double V10= points(i1,1)- points(i0,1);
26  double V11= points(i2,1)- points(i0,1);
27
28  // Compute determinant
29  double det=V00*V11 - V01*V10;
30  vol=0.5*det;
31  }
void fvm2d::compute_local_formfactors ( const int  icell,
const numcxx::DArray2 points,
const numcxx::IArray2 cells,
numcxx::DArray1 epar,
numcxx::DArray1 npar,
double &  vol
)
inline

Definition at line 33 of file fvm2d.cxx.

40  {
41  int i0=cells(icell,0);
42  int i1=cells(icell,1);
43  int i2=cells(icell,2);
44
45
46  // Fill matrix of edge vectors
47  double V00= points(i1,0)- points(i0,0);
48  double V10= points(i1,1)- points(i0,1);
49
50  double V01= points(i2,0)- points(i0,0);
51  double V11= points(i2,1)- points(i0,1);
52
53  double V02= points(i2,0)- points(i1,0);
54  double V12= points(i2,1)- points(i1,1);
55
56
57
58  // Compute determinant
59  double det=V00*V11 - V01*V10;
60  vol=0.5*det;
61
62  double ivol = 1.0/vol;
63
64  // squares of edge lengths
65  double dd0=V02*V02+V12*V12; // l21
66  double dd1=V01*V01+V11*V11; // l20
67  double dd2=V00*V00+V10*V10; // l10
68
69
70  // contributions to \sigma_kl/h_kl
71  epar(0)= (dd1+dd2-dd0)*0.125*ivol;
72  epar(1)= (dd2+dd0-dd1)*0.125*ivol;
73  epar(2)= (dd0+dd1-dd2)*0.125*ivol;
74
75
76  // contributions to \omega_k
77  npar(0)= (epar(2)*dd2+epar(1)*dd1)*0.25;
78  npar(1)= (epar(0)*dd0+epar(2)*dd2)*0.25;
79  npar(2)= (epar(1)*dd1+epar(0)*dd0)*0.25;
80  }
void fvm2d::assemble_bc ( const numcxx::SimpleGrid grid,
const numcxx::DArray1 bcfac,
const numcxx::DArray1 bcval,
numcxx::DSparseMatrix SGlobal,
numcxx::DArray1 Rhs
)

Definition at line 83 of file fvm2d.cxx.

89  {
90  // Assemble boundary conditions (Dirichlet penalty method)
91  int nbfaces=grid.nbfaces();
92  auto points=grid.get_points(); // Array of global nodes
93  auto bfaces=grid.get_bfaces();
94  auto bfaceregions=grid.get_bfaceregions();
95
96  for (int ibface=0; ibface<nbfaces; ibface++)
97  {
98  // Obtain number of boundary condition
99  int ireg=bfaceregions(ibface);
100  double dx= points(bfaces(ibface,1),0)-points(bfaces(ibface,0),0);
101  double dy= points(bfaces(ibface,1),1)-points(bfaces(ibface,0),1);
102  double h=sqrt(dx*dx+dy*dy);
103  double factor=0.5*h*bcfac(ireg);
104  if (bcfac(ireg)>=Dirichlet) factor=bcfac(ireg);
105
106  int i;
107  i=bfaces(ibface,0);
108  SGlobal(i,i)+=factor;
109  Rhs(i)+=factor*bcval(ireg);
110
111  i=bfaces(ibface,1);
112  SGlobal(i,i)+=factor;
113  Rhs(i)+=factor*bcval(ireg);
114  }
115
116  }
const int nbfaces() const
Return number of boundary faces.
Definition: simplegrid.hxx:69
const TArray2< int > & get_bfaces() const
Get array of point indices describing boundary faces.
Definition: simplegrid.hxx:51
const TArray2< double > & get_points() const
Get array of point coordinates.
Definition: simplegrid.hxx:42
const TArray1< int > & get_bfaceregions() const
Get array of boundary markers.
Definition: simplegrid.hxx:54
const double Dirichlet
BC value marking Dirichlet boundary condition.
Definition: fem2d.hxx:11

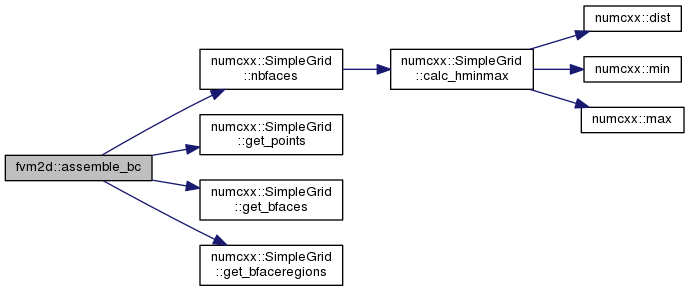

+ Here is the call graph for this function:

void fvm2d::assemble_apply_bc ( const numcxx::SimpleGrid grid,
const numcxx::DArray1 bcfac,
const numcxx::DArray1 bcval,
numcxx::DSparseMatrix SGlobal,
numcxx::DArray1 Sol,
numcxx::DArray1 Rhs
)

Definition at line 120 of file fvm2d.cxx.

127  {
128  // Assemble boundary conditions (Dirichlet penalty method)
129  int nbfaces=grid.nbfaces();
130  auto points=grid.get_points(); // Array of global nodes
131  auto bfaces=grid.get_bfaces();
132  auto bfaceregions=grid.get_bfaceregions();
133
134  for (int ibface=0; ibface<nbfaces; ibface++)
135  {
136  // Obtain number of boundary condition
137  int ireg=bfaceregions(ibface);
138  double dx= points(bfaces(ibface,1),0)-points(bfaces(ibface,0),0);
139  double dy= points(bfaces(ibface,1),1)-points(bfaces(ibface,0),1);
140  double h=sqrt(dx*dx+dy*dy);
141  double factor=0.5*h*bcfac(ireg);
142  if (bcfac(ireg)>=Dirichlet) factor=bcfac(ireg);
143
144  int i;
145  i=bfaces(ibface,0);
146  SGlobal(i,i)+=factor;
147  Rhs(i)+=factor*(Sol(i)-bcval(ireg));
148
149
150  i=bfaces(ibface,1);
151  SGlobal(i,i)+=factor;
152  Rhs(i)+=factor*(Sol(i)-bcval(ireg));
153  }
154
155  }
const int nbfaces() const
Return number of boundary faces.
Definition: simplegrid.hxx:69
const TArray2< int > & get_bfaces() const
Get array of point indices describing boundary faces.
Definition: simplegrid.hxx:51
const TArray2< double > & get_points() const
Get array of point coordinates.
Definition: simplegrid.hxx:42
const TArray1< int > & get_bfaceregions() const
Get array of boundary markers.
Definition: simplegrid.hxx:54
const double Dirichlet
BC value marking Dirichlet boundary condition.
Definition: fem2d.hxx:11

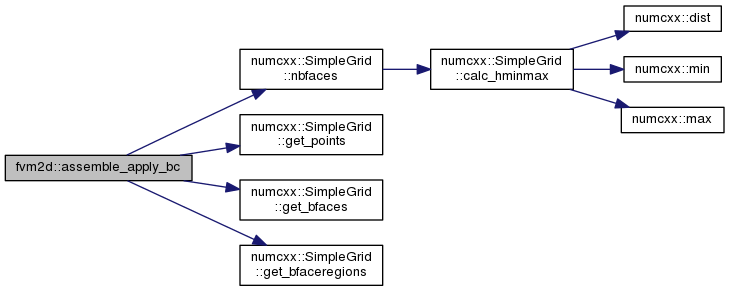

+ Here is the call graph for this function:

Variable Documentation

const double fvm2d::Dirichlet =1.0e30

BC value marking Dirichlet boundary condition.

Examples:
41-stationary-heat-fv.cxx, 43-convtest-fvm-sin.cxx, and 46-nonlin-fvm.cxx.

Definition at line 13 of file fvm2d.hxx.
