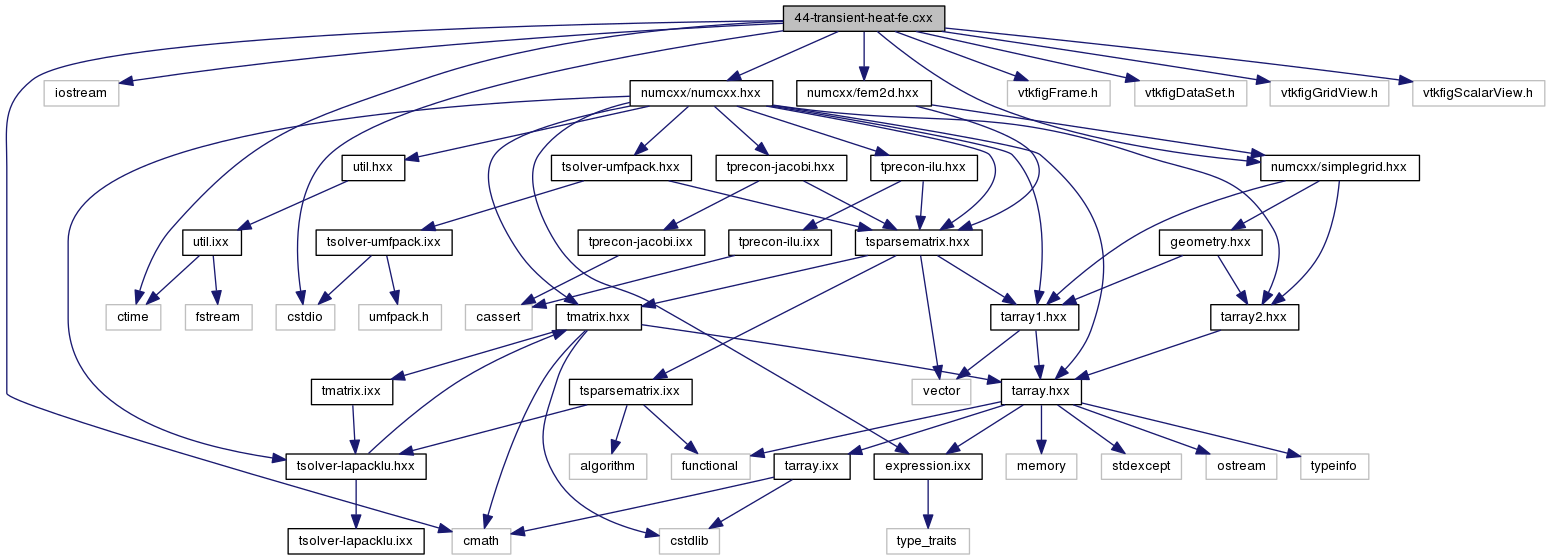

Include dependency graph for 44-transient-heat-fe.cxx:

Go to the source code of this file.

Functions
int	main (void)

Function Documentation

int main

(

void

)

Examples:

44-transient-heat-fe.cxx.

Definition at line 25 of file 44-transient-heat-fe.cxx.

{
  // Parameters to test
  double h=0.05;     // Space step size
  double tau=0.01; // Time step size
  double theta=1.0; // Implicit Euler vs CN vs explicit Euler
  double T=100.0;   // Length of time interval
  bool lump=false;  // Mass lumping




  // Describe geometry
  numcxx::Geometry Geometry;
  Geometry.set_points({
        {0,0},
        {1,0},
        {1,1},
        {0,1},
        {0.7,0.7},
    });

  Geometry.set_bfaces({
        {0,1},
        {1,2},
        {2,3},
        {3,0}
        });


  Geometry.set_bfaceregions({1,2,3,4});

  Geometry.set_regionpoints({
      {0.5,0.5}
    });

  Geometry.set_regionnumbers({1});

  double vol= h*h*0.25;
  Geometry.set_regionvolumes({vol});


  // Create grid
  numcxx::SimpleGrid grid(Geometry,"zpaAqDV");


  // Prepare visualization

  auto griddata=numcxx::vtkfigDataSet(grid);

  auto frame=vtkfig::Frame::New();
  frame->SetSize(1200,600);
  frame->SetLayout(2,1);

  auto gridview=vtkfig::GridView::New();
  gridview->SetData(griddata);
  frame->AddFigure(gridview,0);

  auto solview=vtkfig::ScalarView::New();
  solview->SetData(griddata,"Sol");
  solview->SetValueRange(0,1);
  frame->AddFigure(solview,1);


  // Set up problem data
  numcxx::DArray1 bcfac(6);
  numcxx::DArray1 bcval(6);
  bcfac=0;
  bcval=0;

  bcfac(3)=fem2d::Dirichlet;
  bcfac(1)=fem2d::Dirichlet;
  bcval(3)=1.0;
  bcval(1)=0.0;

  auto nnodes=grid.npoints();

  numcxx::DArray1 source(nnodes);
  numcxx::DArray1 kappa(nnodes);
  kappa=1.0e-2;
  source=0;

  int N=T/tau;

  numcxx::DSparseMatrix SGlobal(nnodes,nnodes);
  numcxx::DArray1 Rhs(nnodes);
  numcxx::DArray1 Sol(nnodes);
  numcxx::DArray1 OldSol(nnodes);
  Sol=0.0;

  numcxx::DSolverUMFPACK Solver(SGlobal);

  for (int n=0;n<N;n++)
  {
    OldSol=Sol;
    fem2d::assemble_transient_heat_problem(grid,bcfac,bcval,source,kappa,tau,theta, lump, OldSol, SGlobal, Rhs);

    if (theta>0.0 || !lump)
    {
      Solver.update(SGlobal);
      Solver.solve(Sol,Rhs);
    }
    else
    {
      for (int i=0;i<Sol.size();i++)
       Sol(i)=Rhs(i)/SGlobal(i,i);
    }

#ifdef VTKFIG

    frame->SetFrameTitle("Time="+std::to_string(tau*n));
    griddata->SetPointScalar(Sol ,"Sol");
    frame->Show();

#endif
  }
  frame->Interact();

}

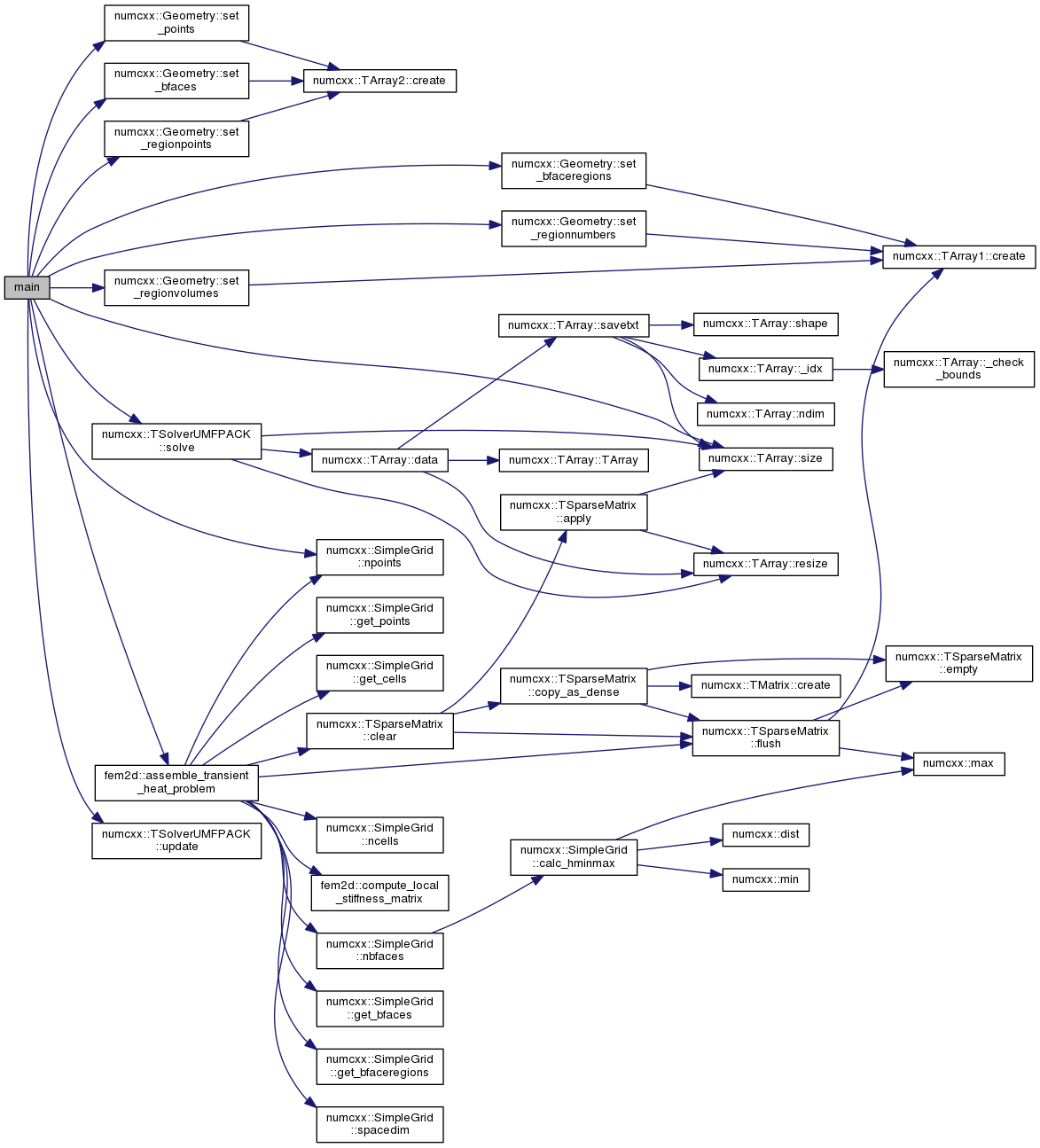

Here is the call graph for this function:
